Icom IC-RX7 [91/108] Beep tones
![Icom IC-RX7 [91/108] Beep tones](/views2/1074718/page91/bg5b.png)
New2001
83
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Beep tones
You can select to have confirmation beeps sound at the
push of a switch. The output level can be adjusted within 40
levels with “BEEP LEVEL” in SOUNDS menu.
MENU ➪ SOUNDS ➪ BEEP LEVEL (p. 70)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
You can select silent operation by turning beep tones OFF
with “KEY-TOUCH BEEP” in SOUNDS menu.
MENU ➪ SOUNDS ➪ KEY-TOUCH BEEP (p. 70)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
■ Dial speed acceleration
The dial speed acceleration automatically speeds up the
tuning dial speed when rotating [DIAL] rapidly.
This function can be turned ON and OFF with “DIAL
SPEED-UP” in SETTING menu.
MENU ➪ SETTING ➪ DIAL SPEED-UP (p. 68)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)

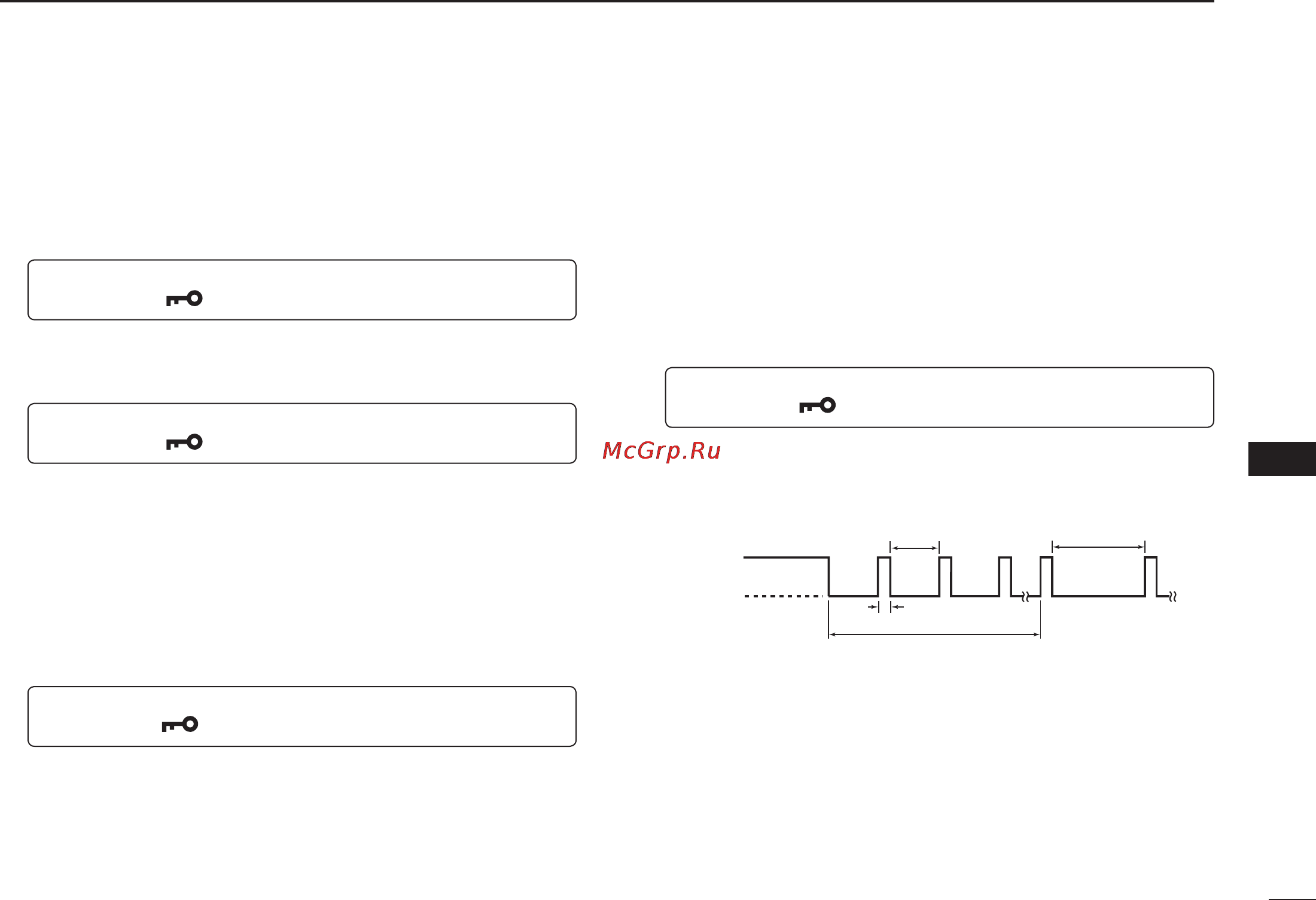

■ Power save
The power save function reduces the current drain to con-
serve battery power.
The power save duty cycle, the ratio of receive circuit on to
receive circuit off during standby, can be set to automatic
(1 : 4 =125 msec. : 500msec., 1 : 8 =125 msec. : 1000 msec.) (de-
fault) or OFF with “POWER SAVE” in SETTING menu.
MENU ➪ SETTING ➪ POWER SAVE (p. 67)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• “AUTO” selects “1:4” duty ratio when receiving no signal for 5 sec.,
then “1:8” 60 sec. after that.
125 msec.
60 sec.
500 msec.
1000 msec.
No signal
5 sec.
Circuit ON
Circuit OFF
