SEARCH AND SCAN OPERATIONS
New2001 New2001

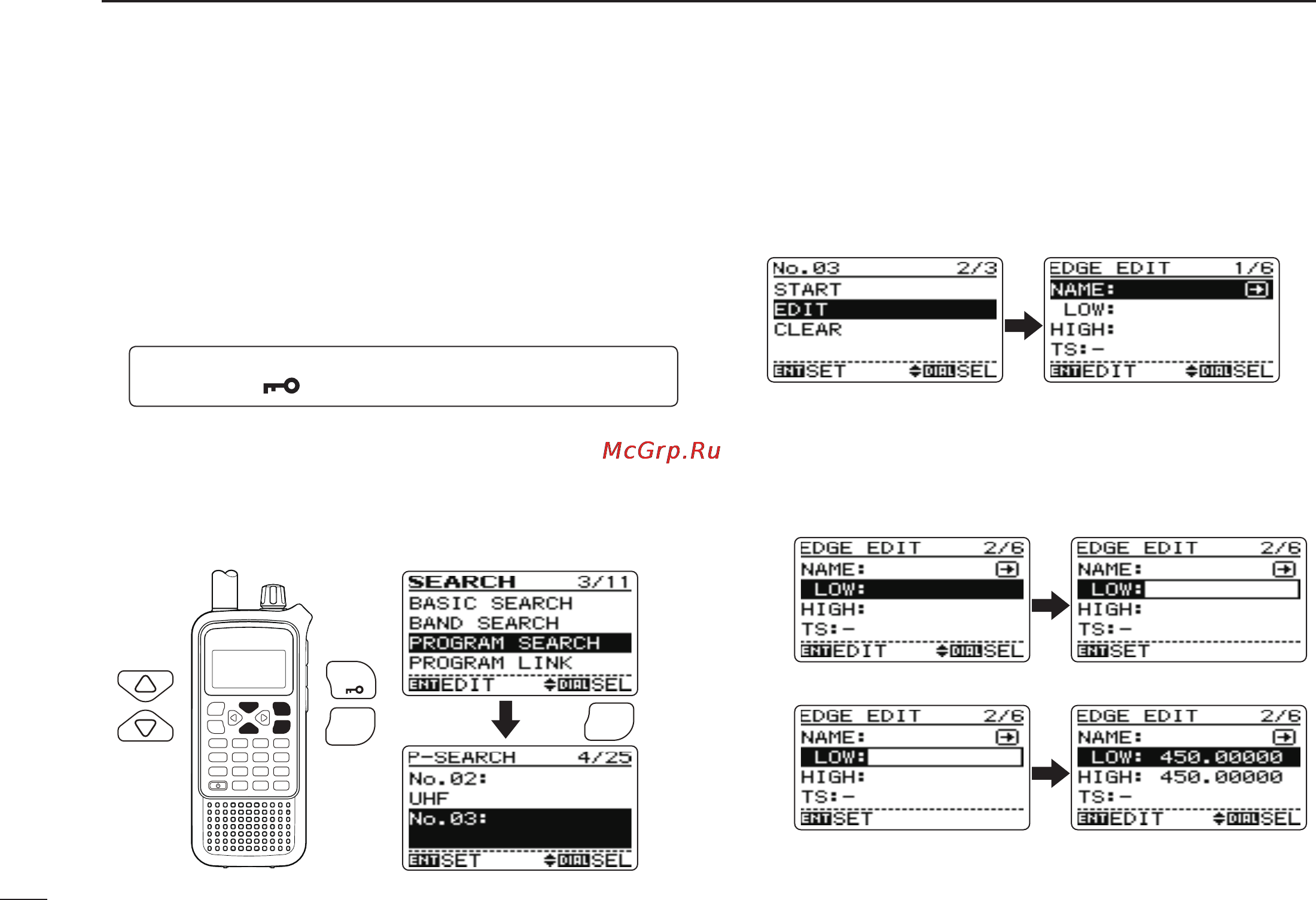

■ Search edges programming
Search edges programming can be stored frequency edges,
receiving mode, tuning steps, attenuator ON/OFF and
search name. Any other items than the frequency edges are
not necessary to program. In this case, settings of each fre-
quency band are used to the search.
q
Enter “PROGRAM SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ PROGRAM SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Program number selection screen appears.
w Push [r] or [s] several times (or rotate [DIAL]) to select
the desired program number, then push [ENT MW] to
enter the program.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
MW
ENT
• EDIT
e Push [s] once (or rotate [DIAL]) to select “EDIT,” then
push [ENT MW] (or [w]).
r Set the desired edge frequencies either “LOW” or “HIGH.”
• Push [s] once or twice (or rotate [DIAL]) to select the item
.
• Other items cannot be programmed until these frequencies are input.
LOW/HIGH
q
Push [ENT MW] (or [w]) to enter the frequency input.
w Edit the desired frequency with keypad (pgs. 20, 21).
e Push [r] or [s] to select another edge, then edit dif-
ferent frequency.
