MENU SCREEN OPERATION
New2001

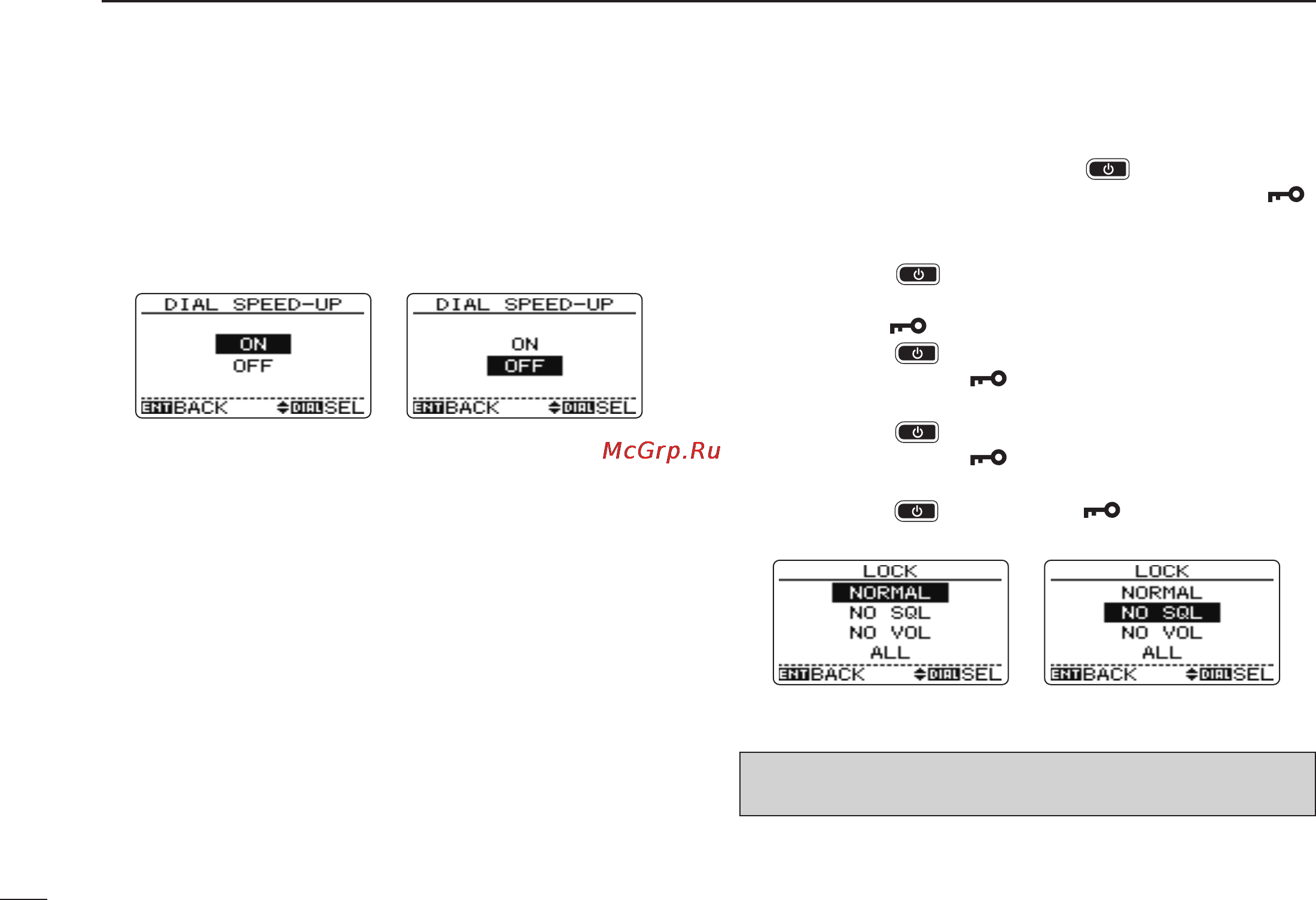

D Dial acceleration (DIAL SPEED-UP)
The dial speed acceleration automatically speeds up the
tuning dial speed when rotating [DIAL] rapidly.
• OFF : The dial speed acceleration is turned OFF.
• ON : The dial speed acceleration is tuned ON.
(default)
Dial acceleration is ON Dial acceleration is OFF
D Key lock type (LOCK)
While the key lock function is ON, [ ], [CLR SQL] (SQL
function only), [r]/[s] (volume function only) and [MENU ]
(Lock function only) can still be accessed. Accessible keys can
be set to 1 of 4 groups.
• NORMAL : [ ], [CLR SQL] (SQL function only),
[r]/[s]
(volume function only) and [MENU
] (Lock function only) accessible. (default)
• NO SQL : [ ], [CLR SQL] (SQL function only) and
[MENU
] (Lock function only) are acces-
sible.
• NO VOL : [ ], [r]/[s] (volume function only) and
[MENU
] (Lock function only) are acces-
sible.
• ALL : [ ] and [MENU ] (Lock function only)
are accessible.
Normal lock condition Squelch level can be adjusted
The function of tuning control, [DIAL], and volume control,
[r]/[s], can be traded. See page 77 for details.
