New2001
69
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

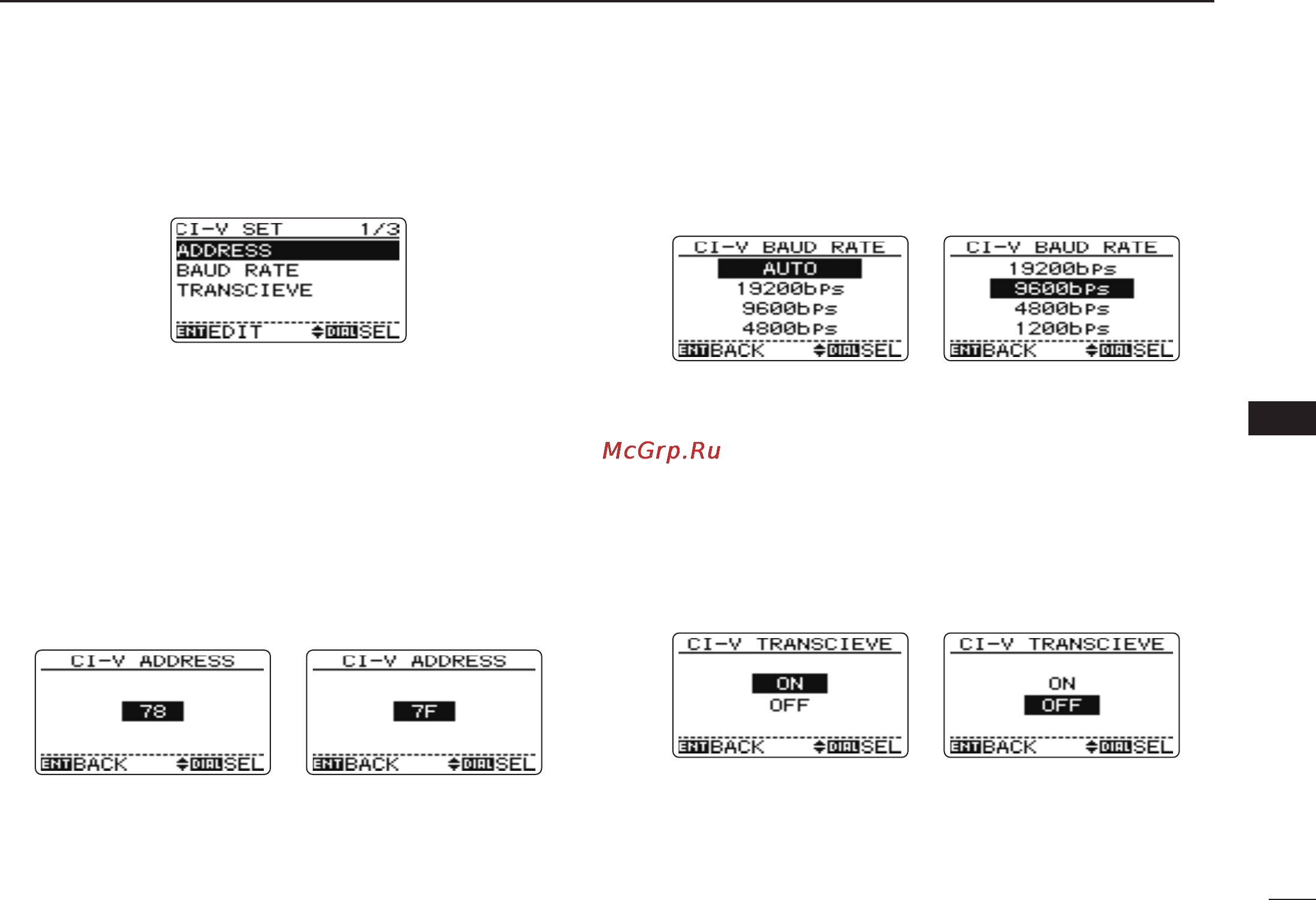

D CI-V setting (CI-V SET)
This setting sets the CI-V address, CI-V baud rate and CI-V
transceive as follow.
• CI-V address (ADDRESS)
To distinguish equipment, each CI-V transceiver/receiver has
its own Icom standard address in hexadecimal number. The
IC-RX7’s address is “78.”
When 2 or more IC-RX7s are connected to an optional
CT-17
ci-v level converter, set a different address for
each IC-RX7 in the range “01” to “7F.” (default: 78)
CI-V address set to 78 CI-V address set to 7F
• CI-V baud rate (BAUD RATE)
Sets the data transfer rate. When “AUTO” is selected, baud
rate is automatically set according to the connected control-
ler or other Icom CI-V radio. (default: AUTO)
“AUTO” baud rate setting 9600 bps setting
• CI-V transceive (TRANSCEIVE)
CI-V transceive operation is possible with the IC-RX7 con-
nected to an Icom CI-V radio. When “ON” is selected,
changing the frequency, operating mode on the IC-RX7
automatically changes those of connected radios and vice
versa. (default: ON)
CI-V transceive ON CI-V transceive OFF
