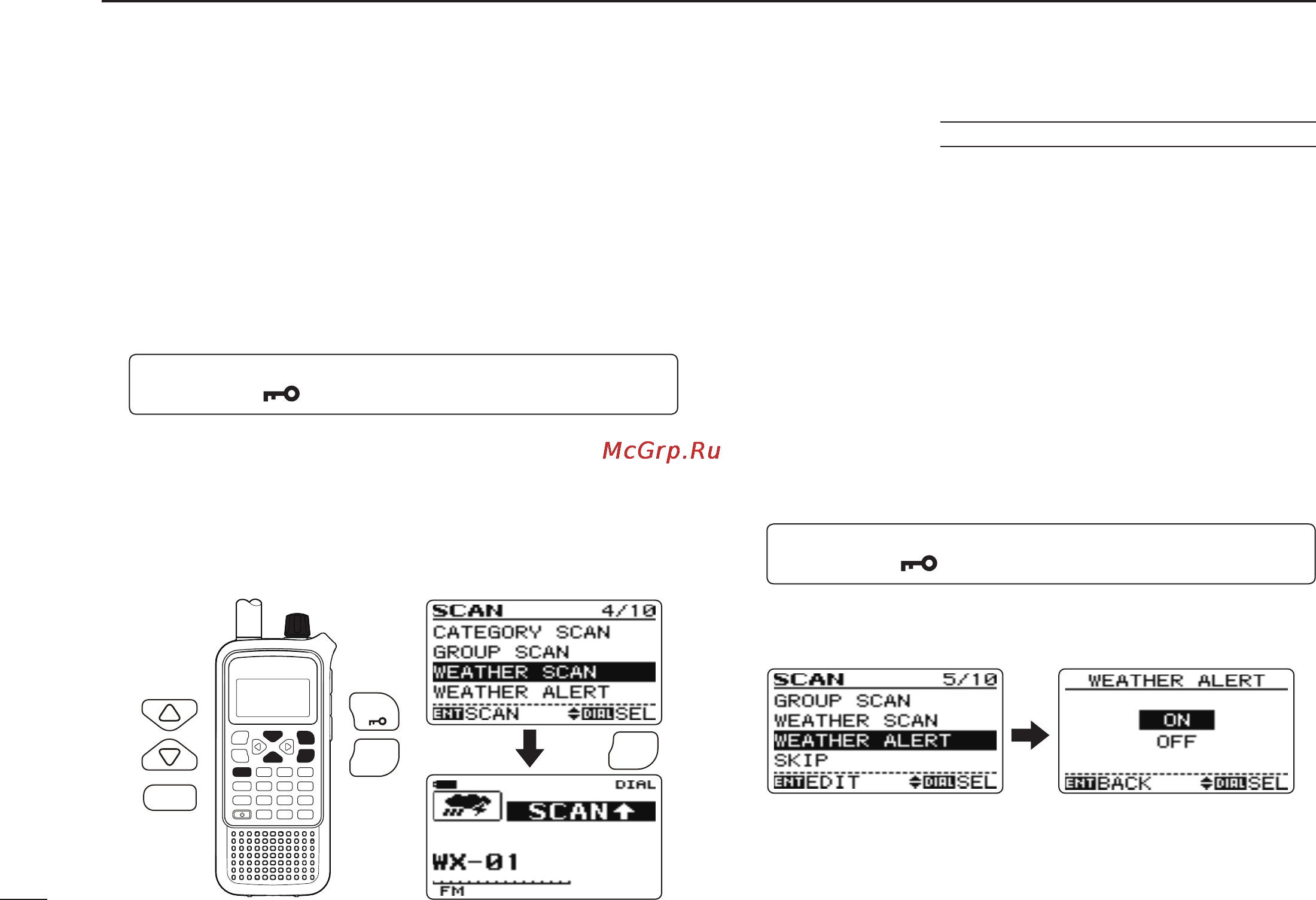

■ Weather channel operation
There are 10 weather channels for monitoring weather chan-
nels from the NOAA (National Oceanic and Atmospheric
Administration) broadcasts.
D Weather channel selection
q
Enter “WEATHER SCAN” in SCAN menu.
MENU ➪ SCAN ➪ WEATHER SCAN
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SCAN menu can also be entered by pushing and holding
[SCAN] for 1 sec.
• “WX” and the weather channel number appear.
w Push [HOLD V] to stop scanning.
e
Rotate [DIAL] to select the desired weather channel.
r
Push and hold [HOLD V] for 1 sec. to return to VFO
mode.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
[DIAL]
Push
MW
ENT
D Weather alert function
NOAA broadcast stations transmit weather alert tones be-
fore important weather announcements. When the weather
alert function is turned ON, the selected weather channel
is monitored every 5 sec. for the announcement. When the
alert signal is detected, the “ALT” and the WX channel are
displayed alternately and sounds a beep tone until the re-
ceiver is operated. The previously selected (used) weather
channel is checked periodically during standby or while
scanning.
q
Select the desired weather channel.
w Enter “WEATHER ALERT” in SCAN menu.
MENU ➪ SCAN ➪ WEATHER ALERT
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SCAN menu can also be entered by pushing and holding
[SCAN] for 1 sec.
e Push [r]/[s] (or rotate [DIAL]) to select “ON” or “OFF.”
r Push [ENT MW] (or [v]) to return to SCAN menu, and
push [CLR SQL] to return to the weather channel indica-
tion.
