8
2

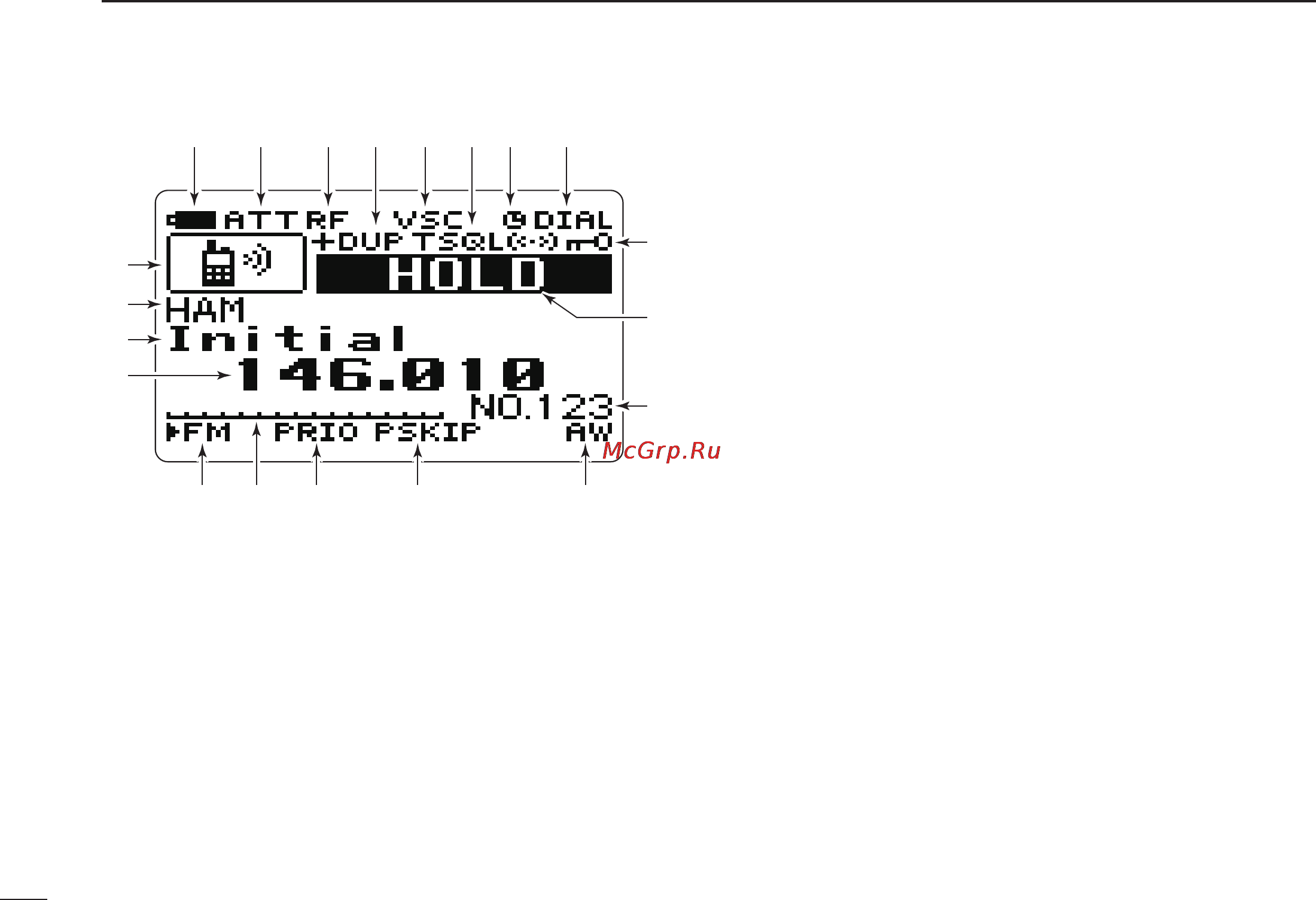

PANEL DESCRIPTION
New2001 New2001
w
CATEGORY INDICATOR (p. 52)
During scan mode, the programmed memory category is
displayed.
e
MEMORY GROUP INDICATOR (p. 53)
During scan mode, the programmed memory group is
displayed.
r
FREQUENCY READOUT
Displays a variety of information, such as operating fre-
quency, memory names.
• The decimal point blinks during search.
t RECEIVING MODE INDICATOR (p. 19)
Shows the selected receiving mode.
• FM, WFM and AM are available, depending on operating band.
• “u” appears when auto mode is selected for USA version.
y S-METER
Shows the relative signal strength while receiving signals.
u PRIORITY WATCH INDICATOR (pgs. 38, 39, 47)
Appears when priority watch is in use.
i
SKIP INDICATOR
➥
“ SKIP” appears when the selected memory channel is
set as a skip channel. (pgs. 46, 55)
➥
“ PSKIP” blinks during skip search operation. (p. 36)
o
AUTO WRITE SEARCH INDICATOR
Blinks during auto write search operation. (p. 34)
!0 MEMORY NUMBER INDICATOR
Shows the selected memory number. (pgs. 54, 55)
• This number is assigned to memory name and use this number
for memory management in each memory category.
Memory organization: Category u Group u Name u Channel
• This number is assigned to memory channel for basic search.
The basic search can be re-programmed by optional CS-RX7.
!1 STATUS INDICATOR
Shows the receiver’s status such as “HOLD,” “SCAN,”
“SEARCH” or “MEMORY.”
q
w
r
e
t
uy
!8!9
@0 !7 !6
oi
!5 !4 !3
!2
!1
!0
