MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

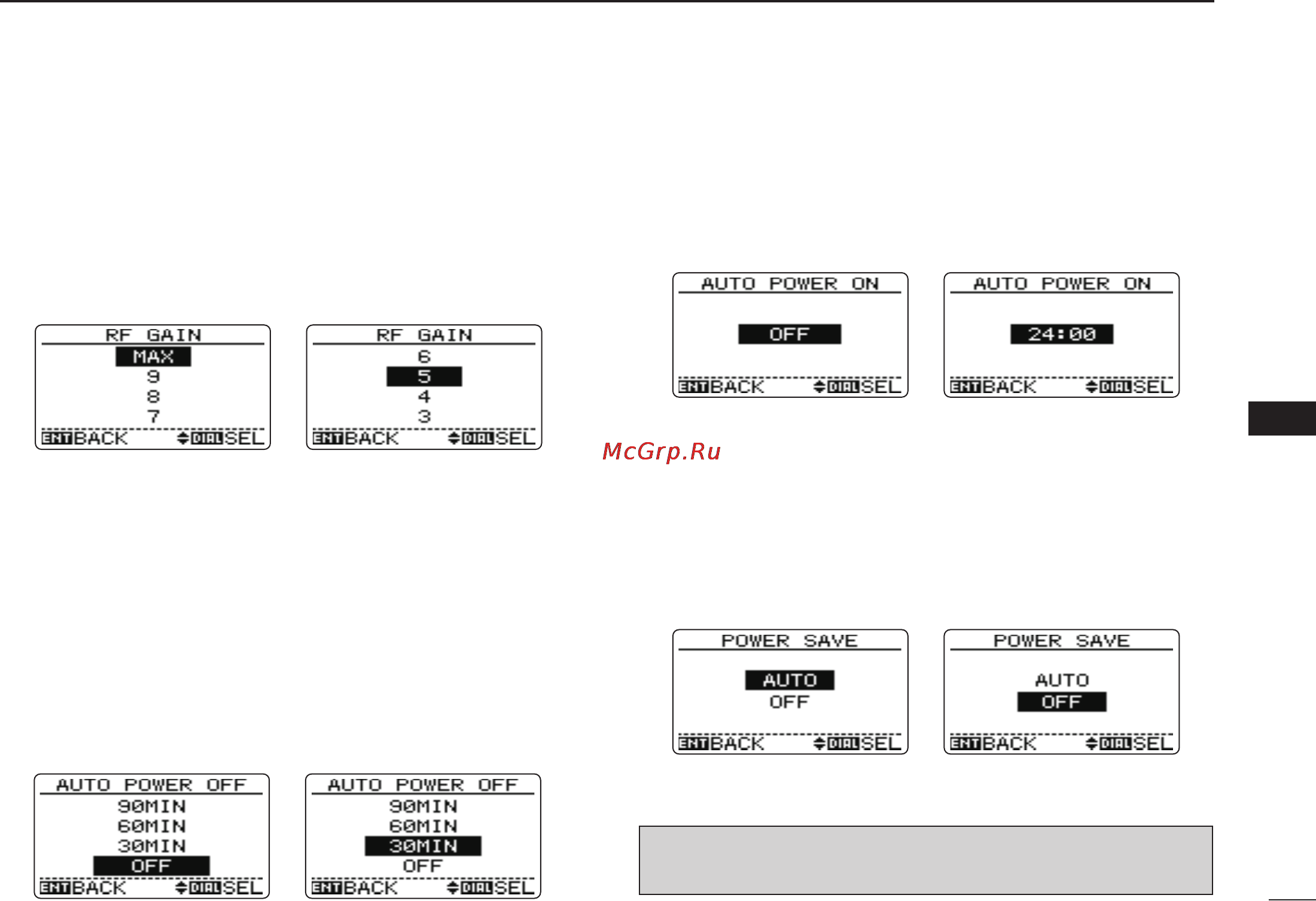

D RF gain level (RF GAIN)
The receiver gain can be reduced with the RF gain setting.
This may help to remove undesired weak signals while mon-
itoring strong signals.
The RF gain can be selected from 11 levels.
• MIN, 1 to 9 and MAX (default: MAX)
D Auto power OFF (AUTO POWER OFF)
Auto power OFF function turns the receiver power OFF after
a specified time period when no key operations are per-
formed. A warning beep indicates before the receiver powers
OFF.
30 min., 60 min., 90 min., 120 min. and OFF (default) can be
specified. The specified time period is retained even when
the transceiver is turned OFF by the auto power OFF func-
tion. To cancel the function, select “OFF” in this item.
D Auto power ON (AUTO POWER ON)
Auto power ON function turns the receiver power ON auto-
matically after passing the set time period from power OFF.
Select the desired time period within 30 minutes to 24 hours
in 30 minutes steps and OFF. (default: OFF)
Timer is OFF 24 hrs. timer
D Power save (POWER SAVE)
The power save function reduces the current drain to con-
serve battery power. This power save function can be turned
OFF, if desired.
• “AUTO” selects “1:4” duty ratio when receiving no signal for 5 sec.,
then “1:8” 60 sec. after that.
Power save is AUTO Power save is OFF
NOTE: Power save function is inactivated when using the
external power supply (More than 5.1 V DC).
