Icom IC-RX7 [49/108] Link scan
![Icom IC-RX7 [49/108] Link scan](/views2/1074718/page49/bg31.png)
New2001
41
6
SEARCH AND SCAN OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Link scan
q Push [SCAN] to start a link scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction.
w Push [HOLD V] to stop the scan temporarily, if desired.
• Push and hold [v] or [w] for 1 sec. several times to select the
desired category; or push [v] or [w] several times to select the
desired group.
• Rotate [DIAL] to select the channel.
• Push [HOLD V] again to restart the scan.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
HOLD V
SCAN

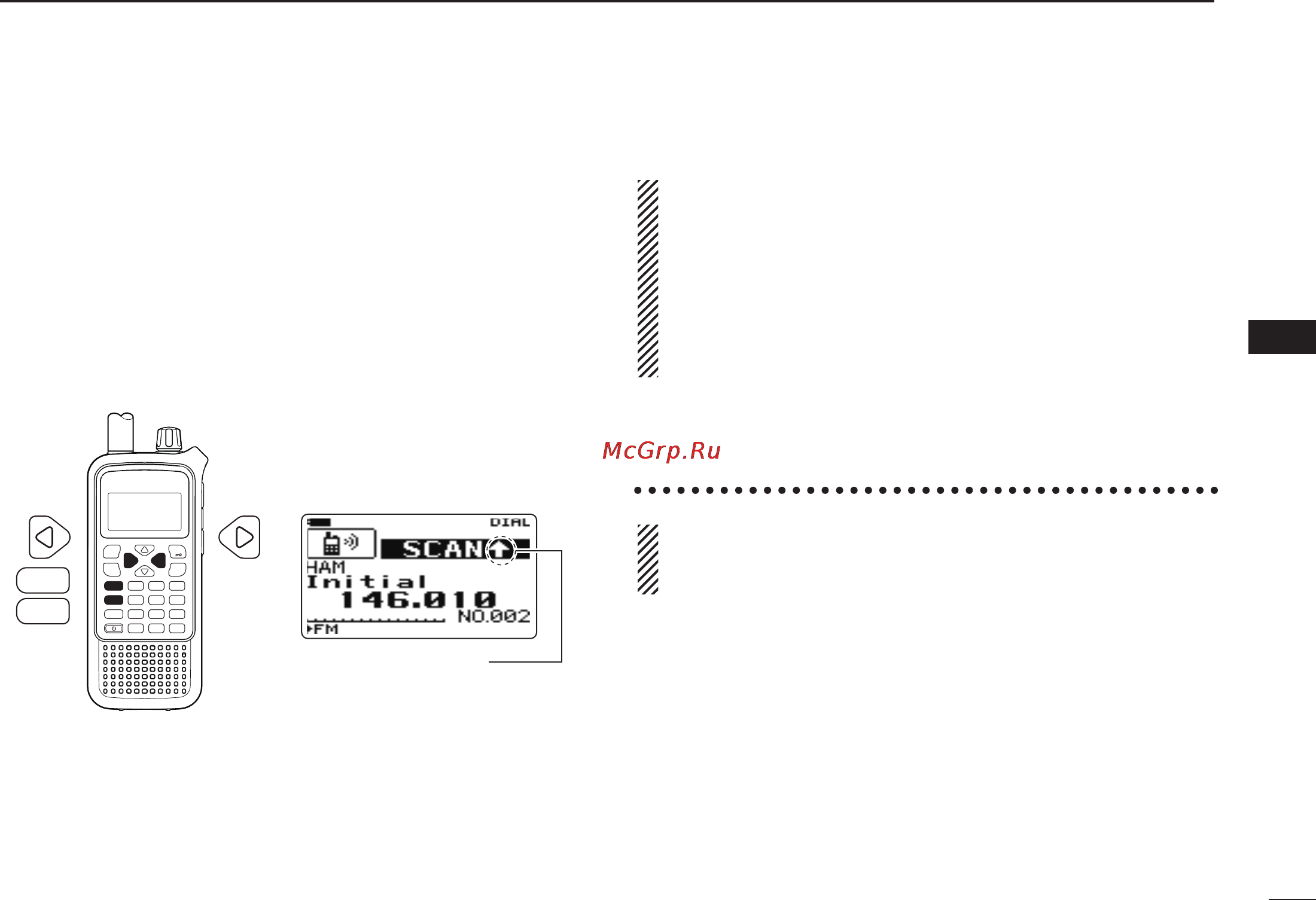

• Scan mode indication
Arrow indicates
scanning direction
The category/group link setting can be changed in mem-
ory programming. See pages 52, 53 for details.
Scan skips any memory channels in the selected cat-
egory/group/name that are set to “SKIP” or “PSKIP.” (pgs.
52–54)
Link scan stops at the first channel when all channels in a
category/group are set to “SKIP” or “PSKIP.” (pgs. 52–54)
IMPORTANT!: To perform scan functions, 2 or more
memory channels MUST be programmed, otherwise the
scans will not start.
