SEARCH AND SCAN OPERATIONS
New2001 New2001

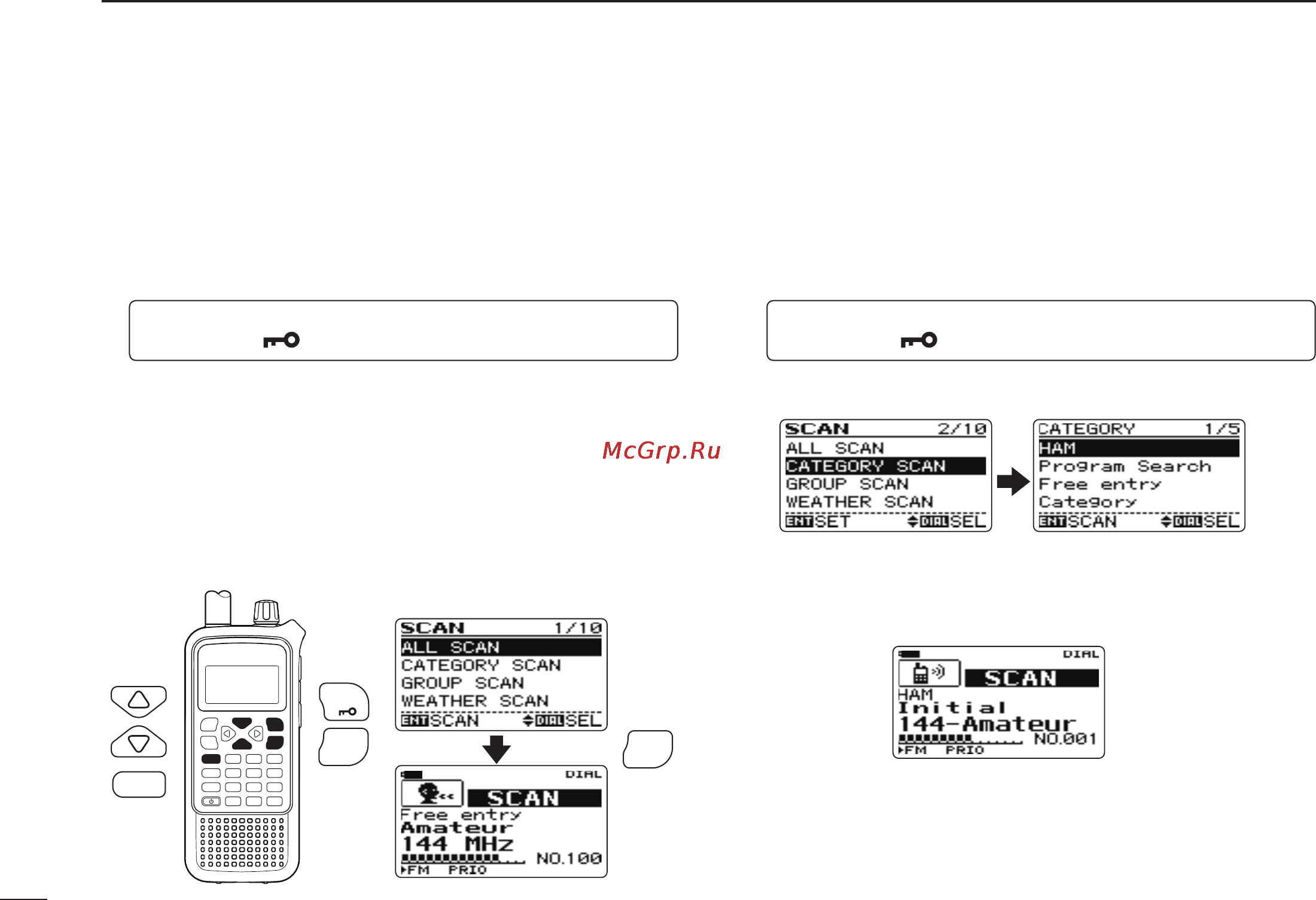

■ All scan
All scan repeatedly scans all memory channels programmed
with any frequencies in the memory channel selected for
scanning.
q
Enter “ALL SCAN” in SCAN menu.
MENU ➪ SCAN ➪ ALL SCAN
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SCAN menu can also be entered by pushing and holding
[SCAN] for 1 sec.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction.
w Push [HOLD V] to stop the scan temporarily, if desired.
• Push and hold [v] or [w] for 1 sec. several times to select the
desired category; or push [v] or [w] several times to select the
desired group.
• Push [HOLD V] again to restart the scan.
MW
MENU
ENT
HOLD
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
Push
MW
ENT
■ Category scan
Category scan repeatedly scans all memory channels in the
same category as the selected memory channel has been
programmed.
q
Enter “CATEGORY SCAN” in SCAN menu.
MENU ➪ SCAN ➪ CATEGORY SCAN
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SCAN menu can also be entered by pushing and holding
[SCAN] for 1 sec.
w Push [r]/[s] (or rotate [DIAL]) to select the desired cat-
egory, then push [ENT MW].
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction.
e Push [HOLD V] to stop the scan temporarily, if desired.
• Push and hold [v] or [w] for 1 sec. several times to select the
desired memory category; or push [v] or [w] several times to
select the desired group.
• Push [HOLD V] again to restart the scan.
