MENU SCREEN OPERATION
New2001
■ Display menu items
D Display backlighting (BACKLIGHT)
The receiver has display backlighting with a 5 sec. timer for
night time operation. The display backlighting can be turned
ON continuously or turned OFF, if desired.
• OFF : The backlight is turned OFF.
• ON : The backlight continuously lights ON.
• AUTO : Lights when an operation is performed, goes out
after 5 sec. (default)

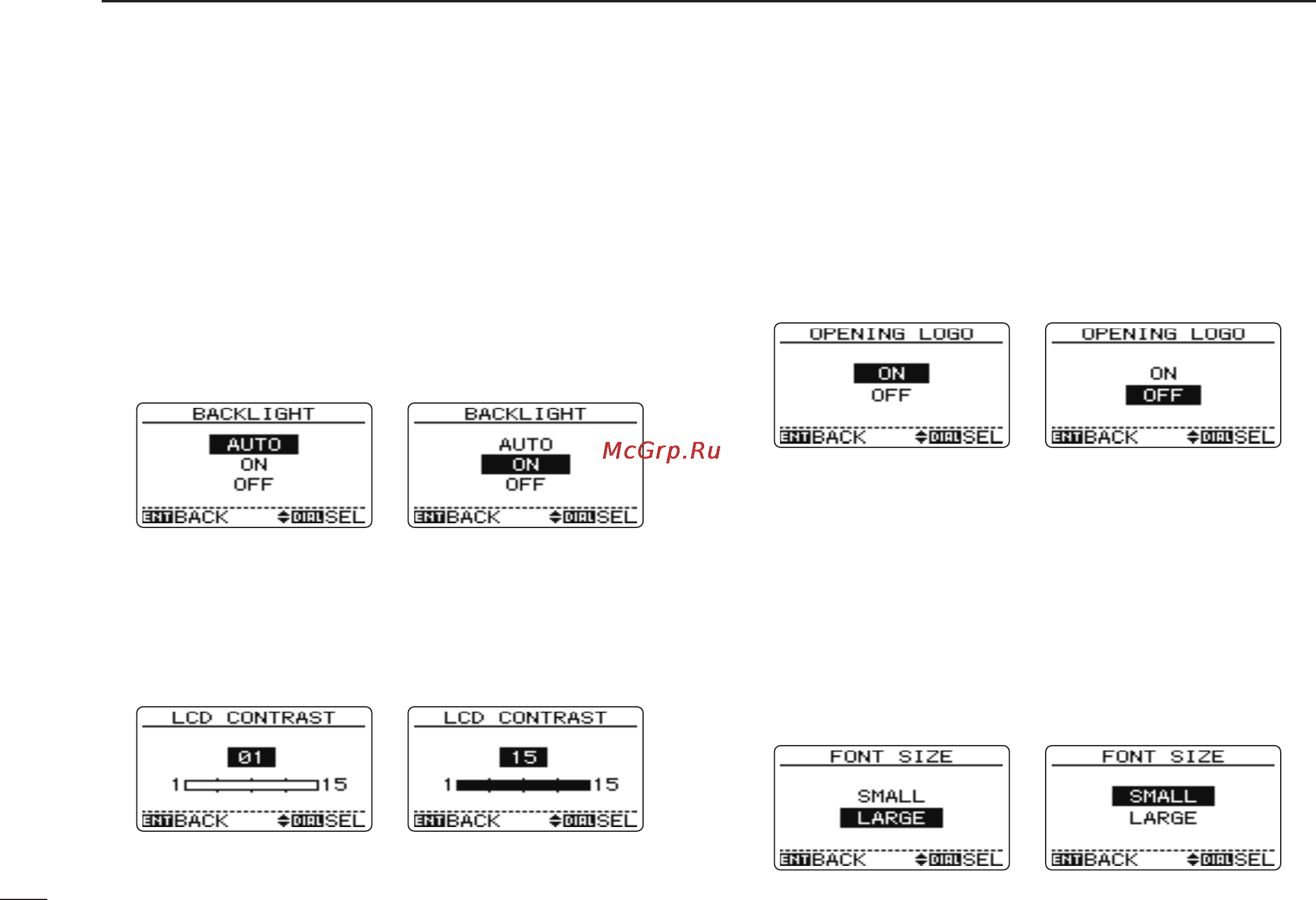

Auto setting Continuously ON setting
D LCD contrast (LCD CONTRAST)
The contrast of the LCD can be selected from 15 levels.
• 1
(Low contrast) to 15 (High contrast) (default: 8)
Low contrast High contrast
D Opening logo (OPENING LOGO)
The opening logo indication (Icom logo and receiver name) that
is displayed at power ON can be skipped, if desired.
• OFF : Opening logo indication is skipped.
• ON : Opening logo is displayed at power ON. (default)
Opening logo is ON Opening logo is OFF
D Font size (FONT SIZE)
Displayed character size for group/name during scan opera-
tions or category during basic search operation is selectable
from Large and Small.
• SMALL : Makes 16 characters on the line.
• LARGE : Makes 12 characters on the line (Scroll the
characters if the longer than 13 characters). (de-
fault)
Large font size Small font size
