New2001
22
5
FREQUENCY SETTING
New2001

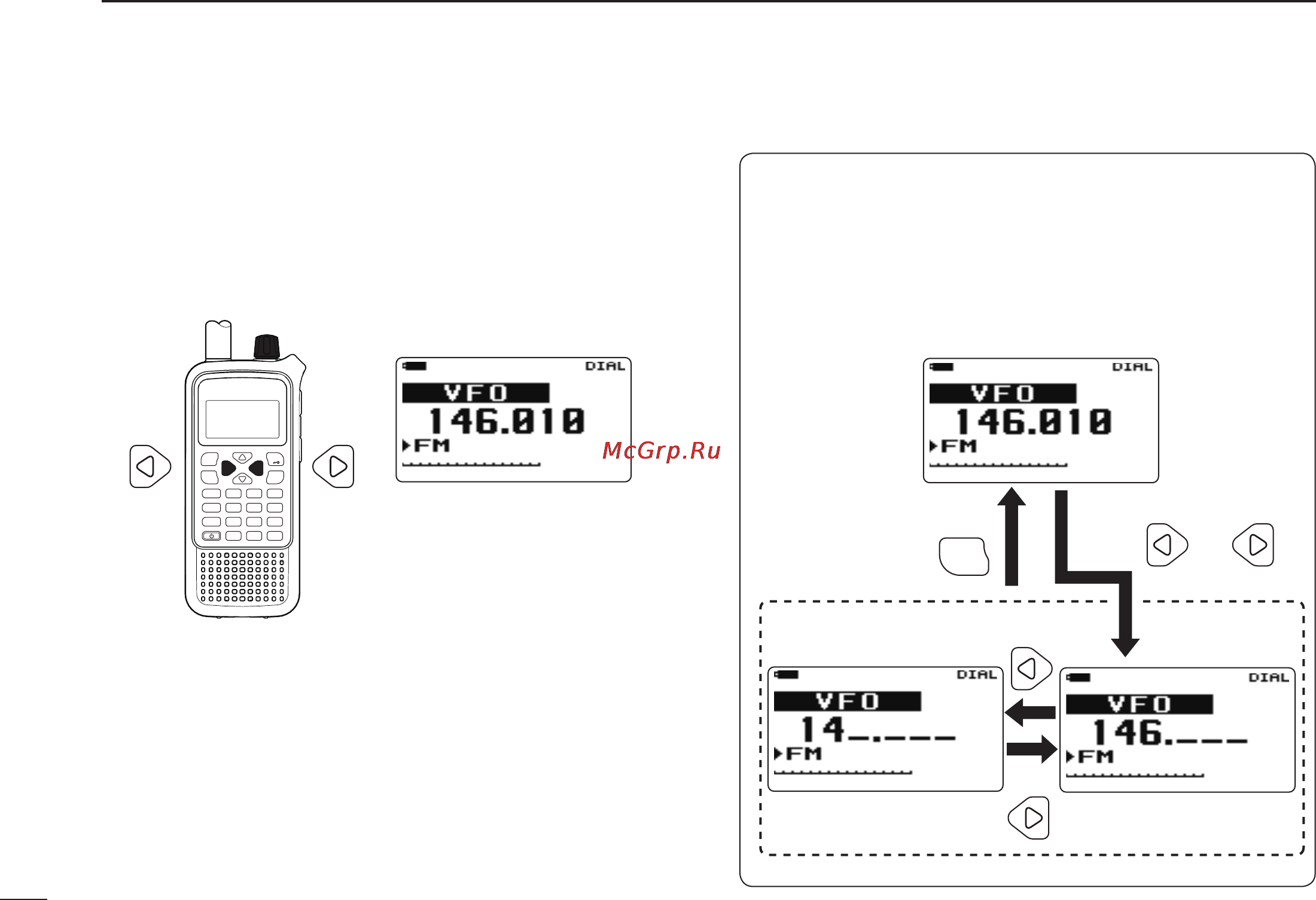

D Via the dial
q Push and hold [HOLD V] for 1 sec. to select VFO mode, if
necessary.
w
Push [v] or [w] to select the desired frequency band.
e
Rotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the next page for setting the tuning step.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
[DIAL]
[DIAL] changes the
frequency according to
the selected tuning step.
✔ CONVENIENT! (MHz tuning step mode)
Push and hold [v] or [w] for 1 sec. then rotate [DIAL] to
change the frequency in 1 MHz steps, or push [v] again
then rotate [DIAL] to change the frequency in 10 MHz
steps. (After entering MHz tuning step mode, pushing
[v] or [w] selects 10 MHz tuning steps or 1 MHz tuning
steps, respectively.)
Push and hold
for 1 sec.
or
Push
Push
Push
CLR
SQL
