New2001
12
3
BATTERY CHARGING
New2001
■ Charging
Prior to using the receiver for the first time, the battery pack
must be fully charged for optimum life and operation.
D Battery indicator and charging indicator
When the receiver’s power is OFF, the charging indicator
shows “
,” “ ” and “ ” in sequence with “Charg-
ing...” while charging, and indicator disappears when com-
pletely charged.
When the receiver’s power is ON, the battery indicator
shows “
,” “ ” and “ (disappears)” in sequence
while charging, and indicator disappears when completely
charged.
D Charging note
• Be sure to turn the receiver power OFF.
Otherwise the battery pack will not be charged completely or takes
longer to charge time periods.
• External DC power operation becomes possible when
using an optional CP-18A/E. The attached battery pack is
also charged simultaneously.
•
If your battery pack seems to have no capacity even after
being charged, fully charge the battery pack again. If the
battery pack still does not retain a charge (or very little), a
new battery pack must be purchased.
q

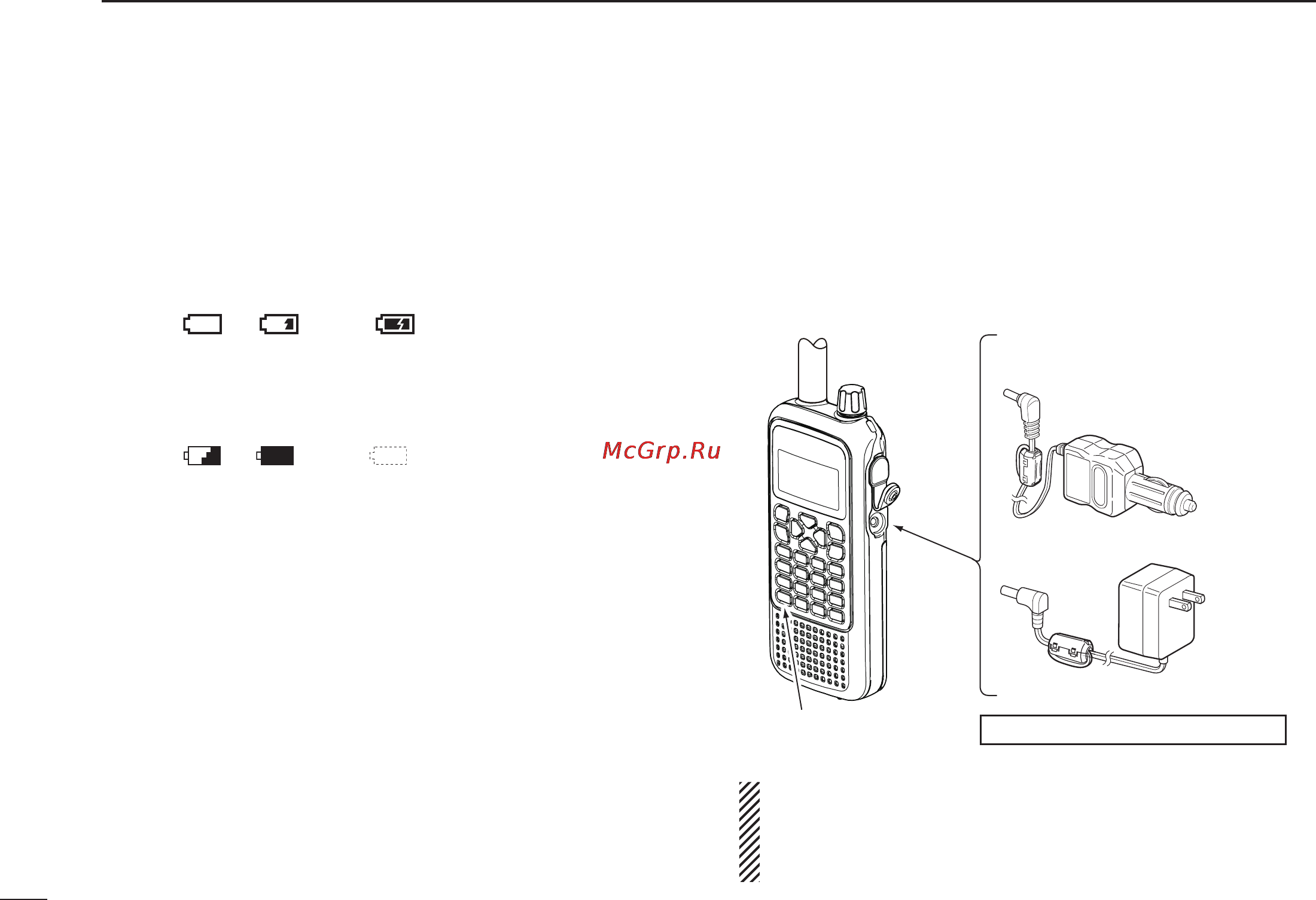

Insert the battery pack (BP-244) into the receiver. (p. 2)
w Plug the battery charger (BC-149A/D*) into an AC outlet;
or the optional CP-18A/E into a cigarette lighter socket.
* Not supplied with some versions.
e Turn OFF the receiver, then insert the adapter plug into
[DC 6V] of the receiver.
CAUTION: BE SURE to disconnect the CP-18A/E from
the cigarette lighter socket when charging is finished. A
slight current drain from the CP-18A/E will eventually
drain the vehicle’s battery.
Optional CP-18A/E
Cigarette lighter cable
with DC-DC converter
to AC outlet
to cigarette
lighter socket
Battery charger BC-149A/D
to
[DC 6V]
jack
IC-RX7
Charging periods: approx. 5 hours
Turn power
OFF.
