74
9
OTHER FUNCTIONS
New2001

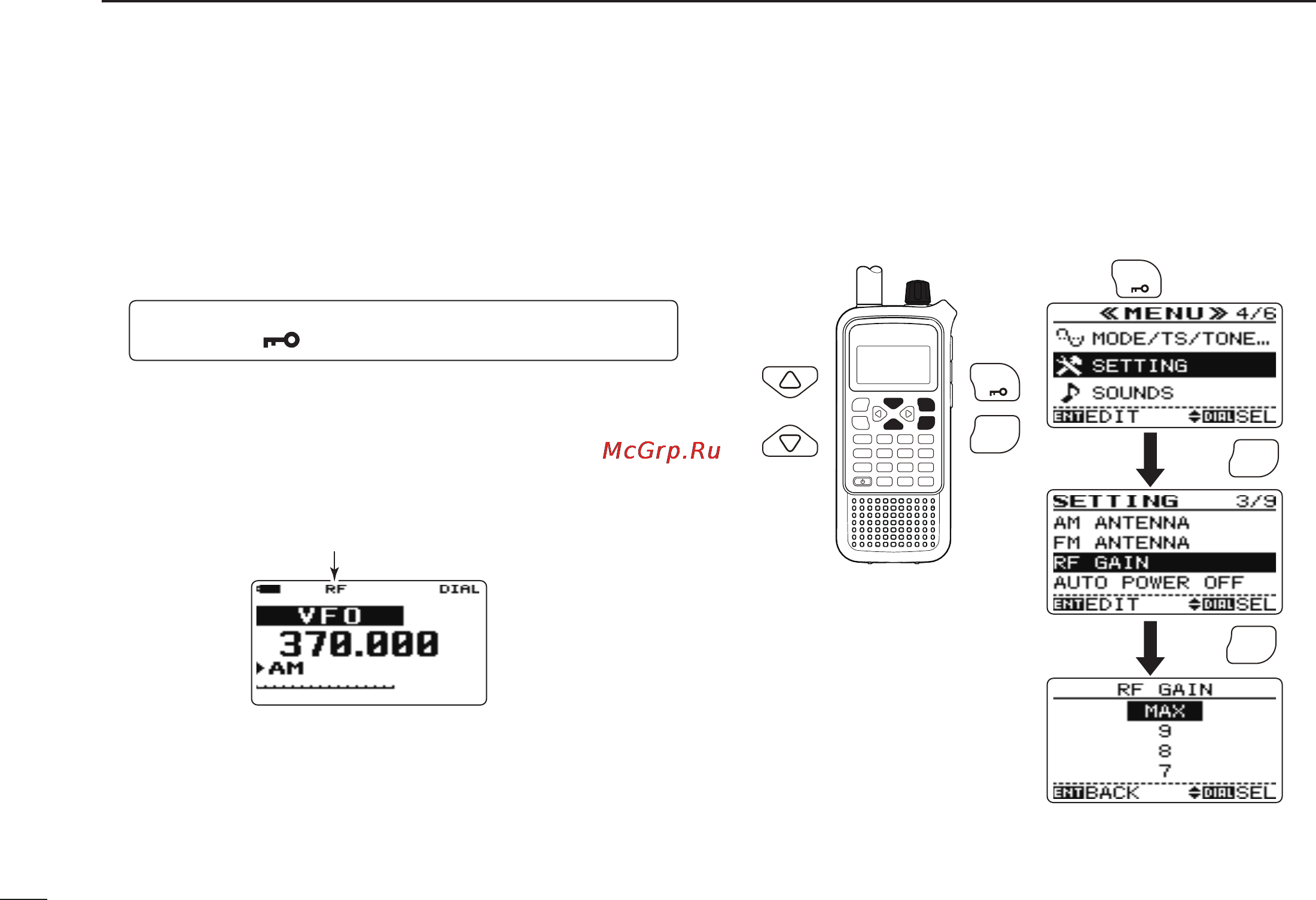

■ RF gain
The receiver gain can be reduced with the RF gain setting.
This may help to remove undesired weak signals while mon-
itoring strong signals.
q
Enter “RF GAIN” in SETTING menu.
MENU ➪ SETTING ➪ RF GAIN (p. 67)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
w Push [r]/[s] (or rotate [DIAL]) to adjust the RF gain.
• Normally this setting is used with maximum level.
e Push [ENT MW] (or [v]) to return to SETTING menu, and
push [CLR SQL] to return to frequency indication.
• “RF” indicator appears when the RF gain is adjusted other than
“MAX.”
Appears
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
Push
Push
Push
MW
MENU
ENT
MW
ENT
[DIAL]
