MENU SCREEN OPERATION
New2001

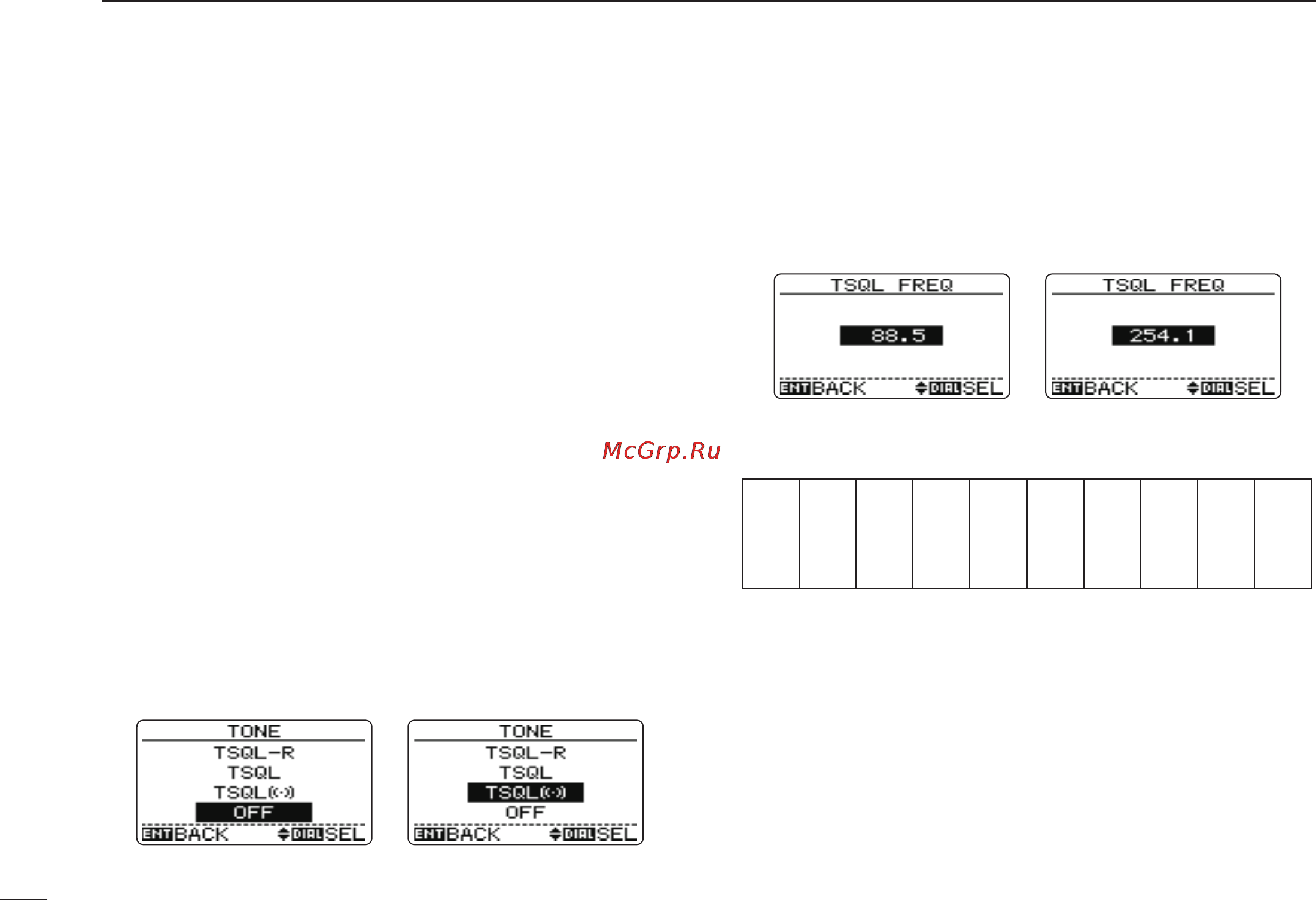

D Tone squelch/DTCS squelch setting (TONE)
Sets the tone squelch or DTCS squelch operation and
pocket beep capability for when waiting for the desired sig-
nal. This setting appears only when FM mode is selected.
(default: OFF)
• DTCS-R : The squelch opens only when a signal with
unmatched DTCS code is received.
• DTCS
: Using DTCS squelch. The squelch opens
only when a signal with matched DTCS
code is received.
• DTCSS
: In addition to the “DTCS” setting, alert
beeps will sound when a signal with
matched DTCS code is received.
• TSQL-R
: The squelch opens only when a signal with
unmatched subaudible tone is received.
• TSQL
: Using tone squelch. The squelch opens
only when a signal with matched subaudi-
ble tone is received.
• TSQLS
: In addition to the “TSQL” setting, alert
beeps will sound when a signal with
matched tone is received.
• OFF
: Regular noise squelch operation
D Tone squelch frequency (TSQL FREQ)
Sets subaudible tone frequency for tone squelch operation.
Total of 50 tone frequencies (67.0–254.1 Hz) are avail-
able. This setting appears only when FM mode is selected.
(default: 88.5 Hz)
88.5 Hz setting 254.1 Hz setting
• Available subaudible tone frequencies
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
