36
6
SEARCH AND SCAN OPERATIONS
New2001 New2001

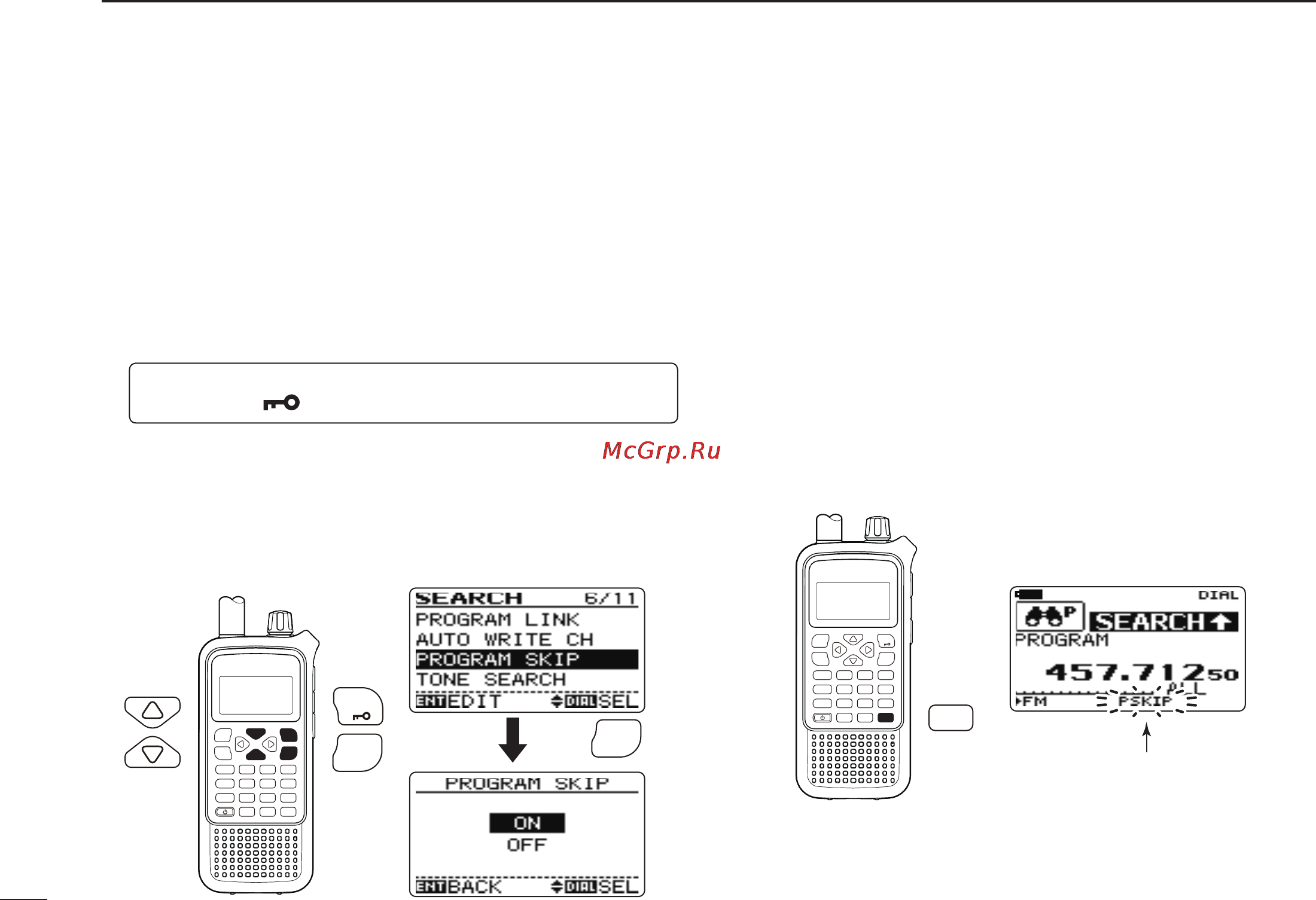

■ Skip search
During search operation, you can store the paused fre-
quency into memory channel as a skip channel which is
skipped during search. This setting is useful to speed up the
search rate.
D Setting
q
Enter “PROGRAM SKIP” in SEARCH menu.
MENU ➪ SEARCH ➪ PROGRAM SKIP
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
w Push [r]/[s] (or rotate [DIAL]) to select the program
skip setting ON or OFF.
e
Push [ENT MW] (or [v]) to return to SEARCH menu, and
push [CLR SQL] to return to frequency indication.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
MW
ENT
D Operation
q Push [SEARCH] to start the full search.
• Any other searches are also available (see pages 26 to 29).
• “PSKIP” indicator blinks.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
w When search pauses and you want to set the paused fre-
quency as a skip frequency.
Push and hold [SKIP] for 1 sec. to store the frequency
into skip channel group in program search category.
• Program search (category)/PSKIP1 (group) are made automati-
cally when first skip channel is stored.
• 1 long beep and 2 short beeps sound when stored.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
SKIP
“PSKIP” indicator blinks during
program skip search.
• During Program skip search
e After that, stored frequencies are skipped during search.
• This setting can be turned OFF by entering “PROGRAM SKIP”
in SEARCH menu (see details on left).
