73
9
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ Antenna selection
The IC-RX7 has an internal bar antenna installed for receiv-
ing AM broadcast band
(0.495–1.620 MHz; varies according to
version) signals. In addition, the connected earphone’s cable
can be used as an antenna for receiving strong signals.

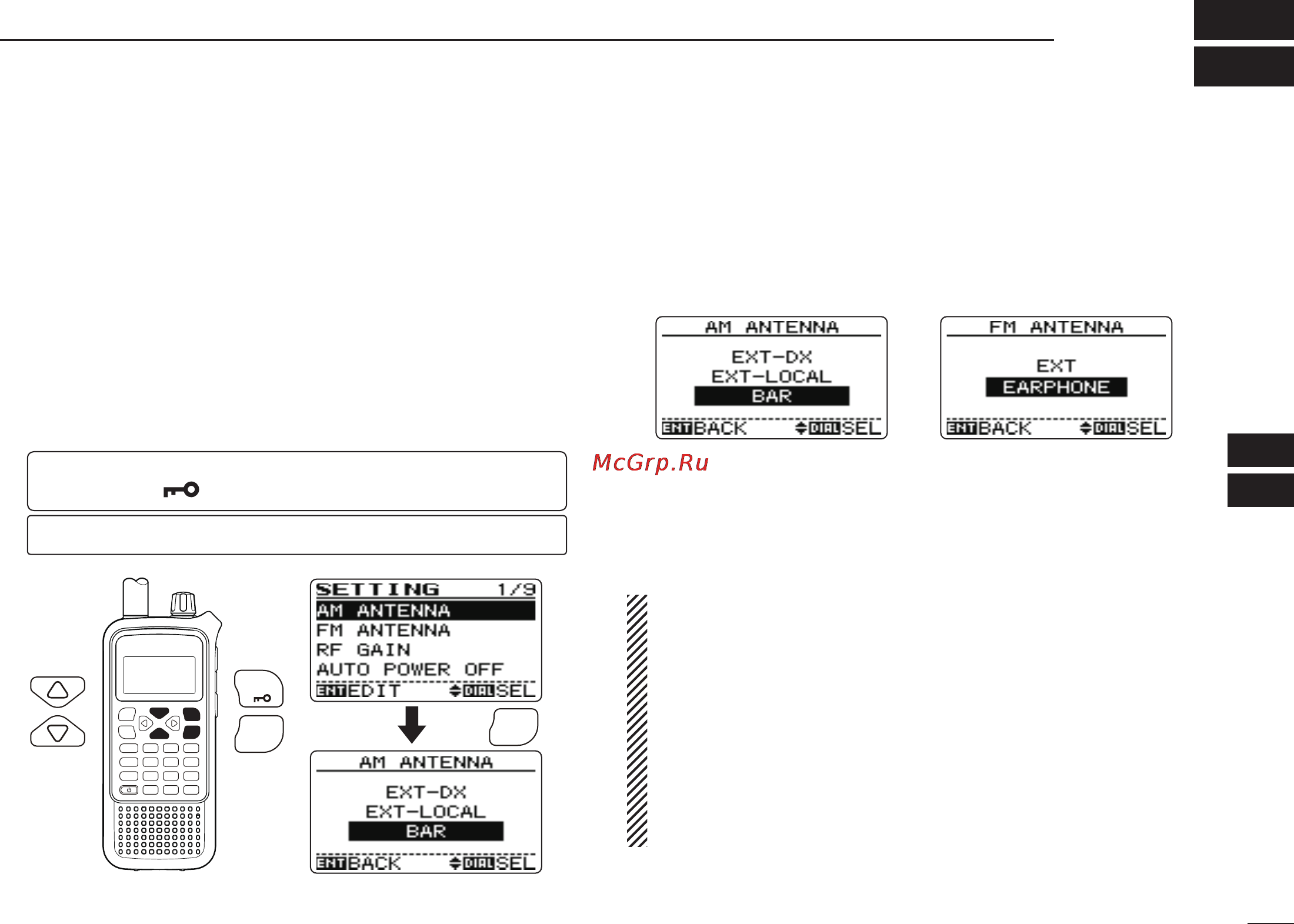

D Selecting antenna
q
Enter “AM ANTENNA” or “FM ANTENNA” in SETTING
menu
for AM broadcast band or FM broadcast band, re-
spectively
.
MENU ➪ SETTING ➪ AM ANTENNA (p. 66)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
MENU ➪ SETTING ➪ FM ANTENNA (p. 66)
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
MW
ENT
w Push [r]/[s] (or rotate [DIAL]) to select “BAR” when
“AM ANTENNA” is selected for the AM broadcast band;
select “EARPHONE” when “FM ANTENNA” is selected for
the strong signals.
Bar antenna selection for
0.495–1.620 MHz band
Earphone cable selection for
strong signals
e Push [ENT MW] (or [v]) to return to SETTING menu, and
push [CLR SQL] to return to frequency indication.
NOTES:
• Some noise or spurious may be received when the in-
ternal bar or earphone cable is used as an antenna.
• The supplied or third party’s antenna MUST BE con-
nected to the antenna connector to receive signals other
than AM or FM broadcast bands.
• When receiving an AM broadcast signal with internal bar
antenna, aim the receiver to better audio direction.
• When the internal bar or earphone cable is used as an
antenna, the attenuator function cannot be used.
