Icom IC-RX7 [35/108] Band search
![Icom IC-RX7 [35/108] Band search](/views2/1074718/page35/bg23.png)
New2001
27
6
SEARCH AND SCAN OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

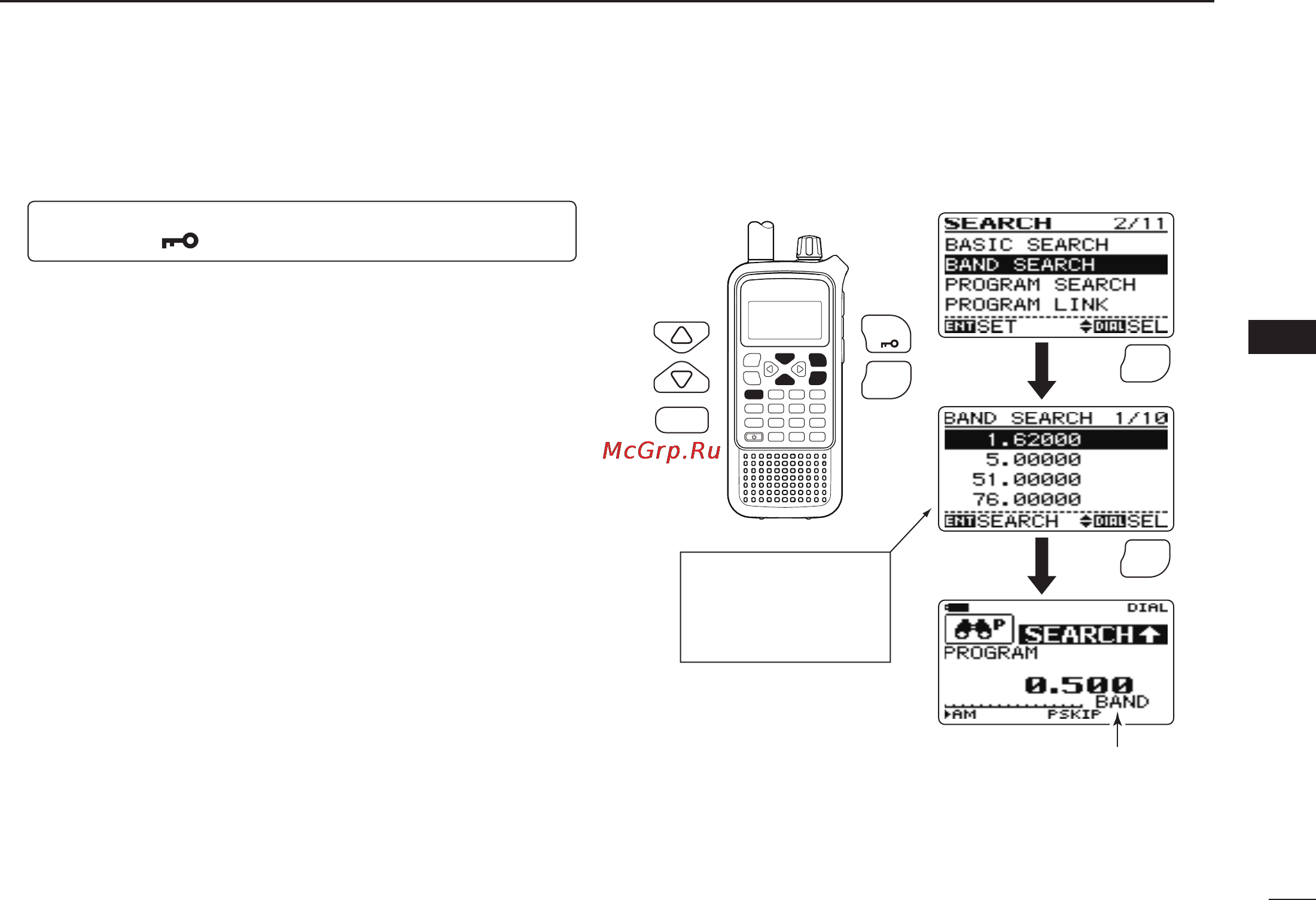

■ Band search
q
Enter “BAND SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ BAND SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Band selection screen appears.
w Push [r] or [s] several times (or rotate [DIAL]) to select
the desired frequency band, then push [ENT MW] to start
the search.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
• After started the search, searching frequency band can be
changed by pushing [v] or [w].
e Push [HOLD V] to stop the search temporarily, if desired.
• Push [HOLD V] again to restart the search.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
Push
MW
ENT
Push
MW
ENT
Last used frequency
in each band is
displayed on band
selection screen.
“BAND” indicator appears
during band search
