New2001
76
9
OTHER FUNCTIONS
New2001
■ Duplex operation
Duplex communication uses 2 different frequencies for
transmitting and receiving. Generally, duplex is used in con-
versational communications, when both parties can speak
and hear at the same time.
During duplex operation, the transmit station frequency is
shifted from the receive station frequency by the offset fre-
quency. Repeater information (offset frequency and shift di-
rection) can be programmed into memory channels. (p. 55)
D Setting
q
Set the receive station frequency (repeater output fre-
quency) in VFO mode.
w

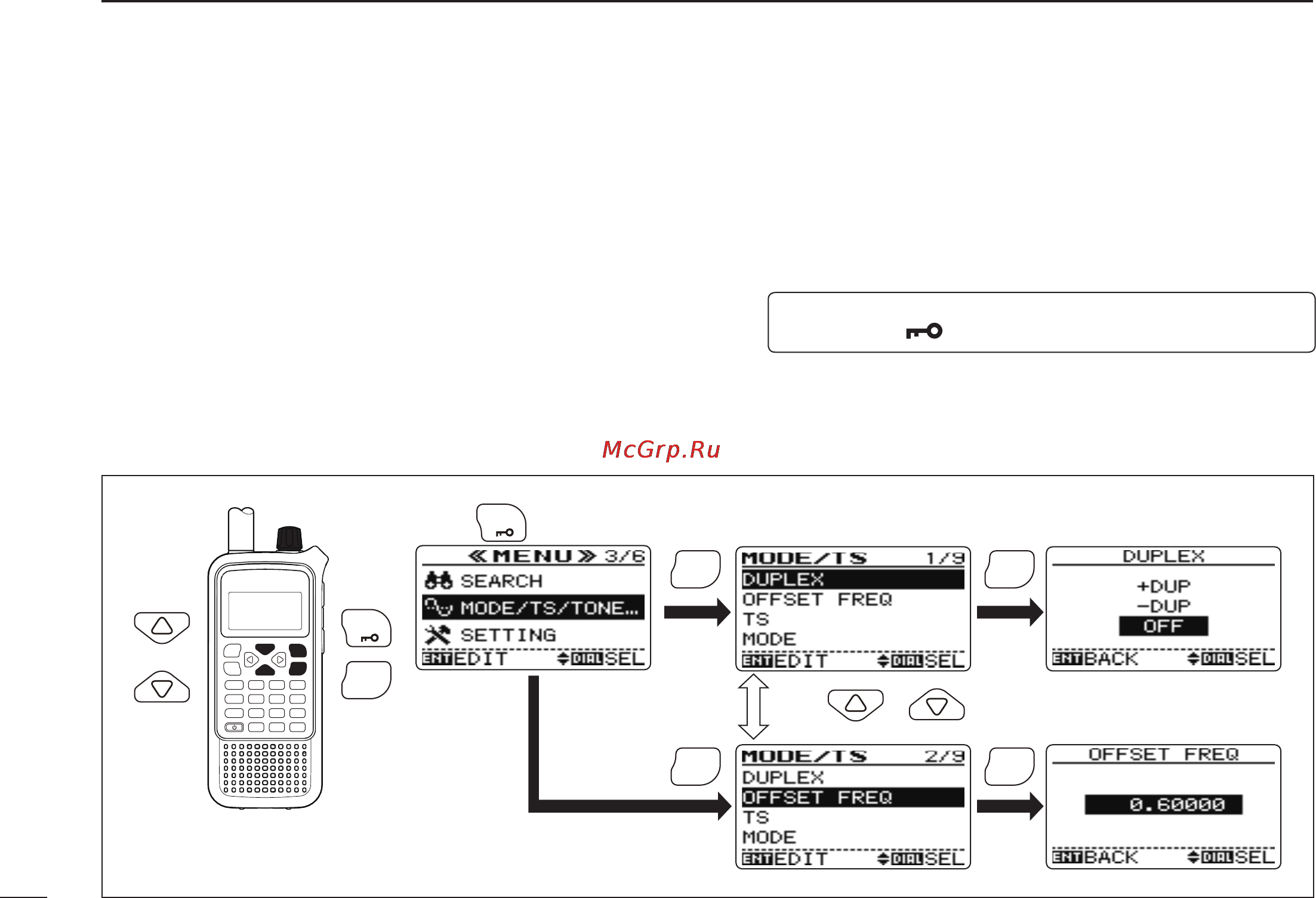

Enter “DUPLEX” in MODE/TS/TONE... menu.
MENU ➪ MODE/TS/TONE... ➪ DUPLEX (p. 62)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
e Push [r]/[s] (or rotate [DIAL]) to select “–DUP” or
“+DUP.”
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
Push
Push
MW
MENU
ENT
Push or
Push
MW
ENT
Push
MW
ENT
Push
MW
ENT
[DIAL]
