New2001
33
6
SEARCH AND SCAN OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

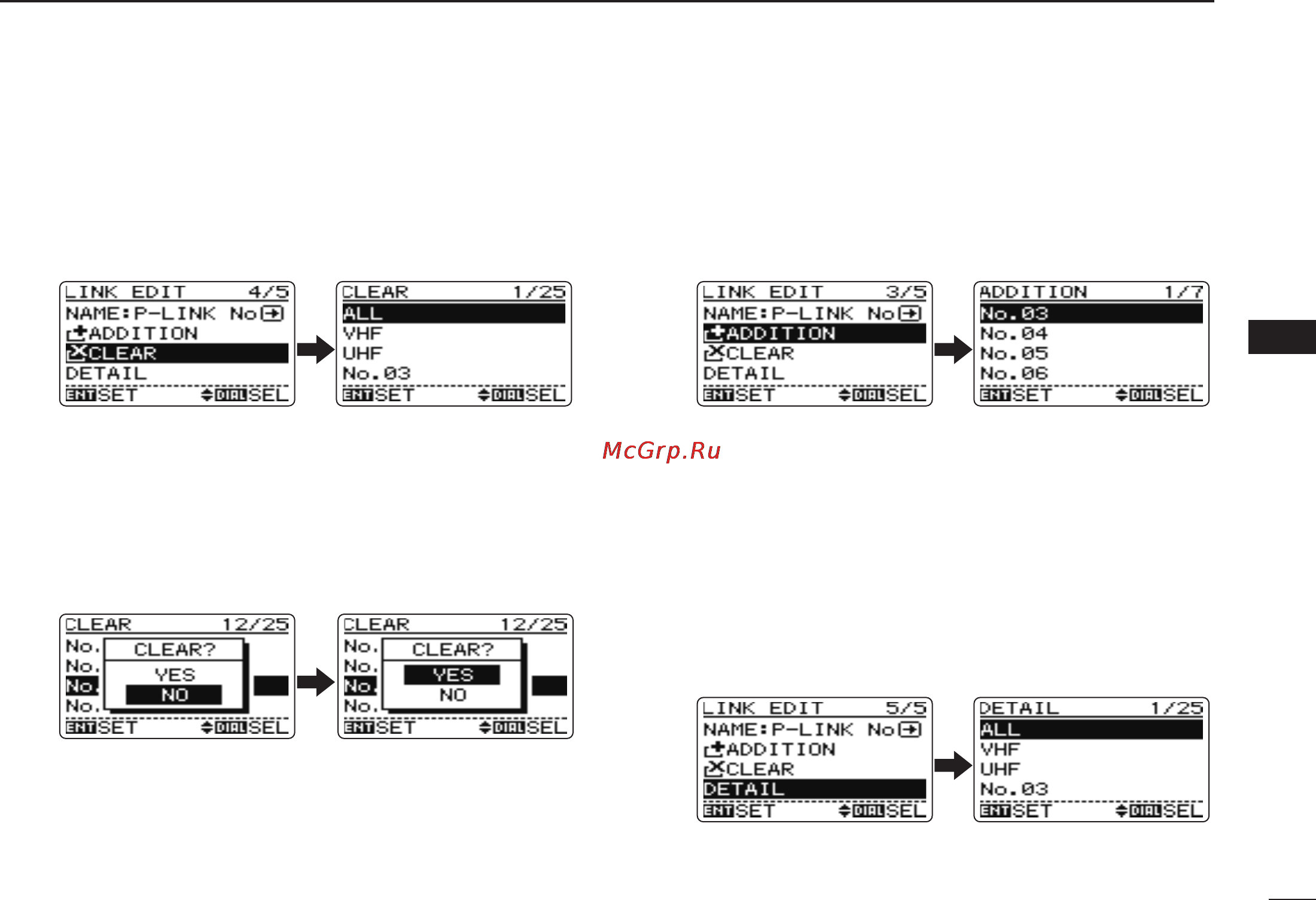

CLEAR
q Push [ENT MW] (or [w]) to edit the link clearing.
• If all program searches are already cleared in the selected
program link number, this item cannot be edited.
w Push [r] or [s] (or rotate [DIAL]) to select the pro-
gram search to be unlinked.
e Push [ENT MW] (or [w]) to unlink the program search.
• “CLEAR?” window appears.
r Push [r] (or rotate [DIAL]) to select “YES,” then push
[ENT MW].
• Select “NO,” then push [ENT MW] to cancel clearing.
Cancel clearing Link clear
t Push [v] to finish the link clearing and return to the
link edit state.
ADDITION
q Push [ENT MW] (or [w]) to edit the adding link.
• If all program searches are already linked in the selected
program link number, this item cannot be edited.
w Push [r] or [s] (or rotate [DIAL]) to select the de-
sired program search.
e Push [ENT MW] to set the link.
r Push [v] to finish the adding link and return to the link
edit state.
DETAIL
q Push [ENT MW] (or [w]) to enter the program link de-
tails.
• If no program searches are linked in the selected program
link number, this item cannot be entered.
w Push [r] or [s] to select the program search.
e Push [ENT MW] (or [w]) to enter the program search.
r Push [v] to return to the link edit state.
