SEARCH AND SCAN OPERATIONS
New2001 New2001
■ Auto write search
This search is useful for searching a specified frequency
range and automatically storing busy frequencies into mem-
ory channels. The auto write search is performed with any
search types. A total of 200 independent channels are avail-
able for storing auto write memory.
q
Push [SEARCH] to start the full search.
• Any other searches are also available (see pages 26 to 29).
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
w Push and hold [ENT MW] for 1 sec. to turn the auto write
function ON and OFF.
• “AW” indicator blinks.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT

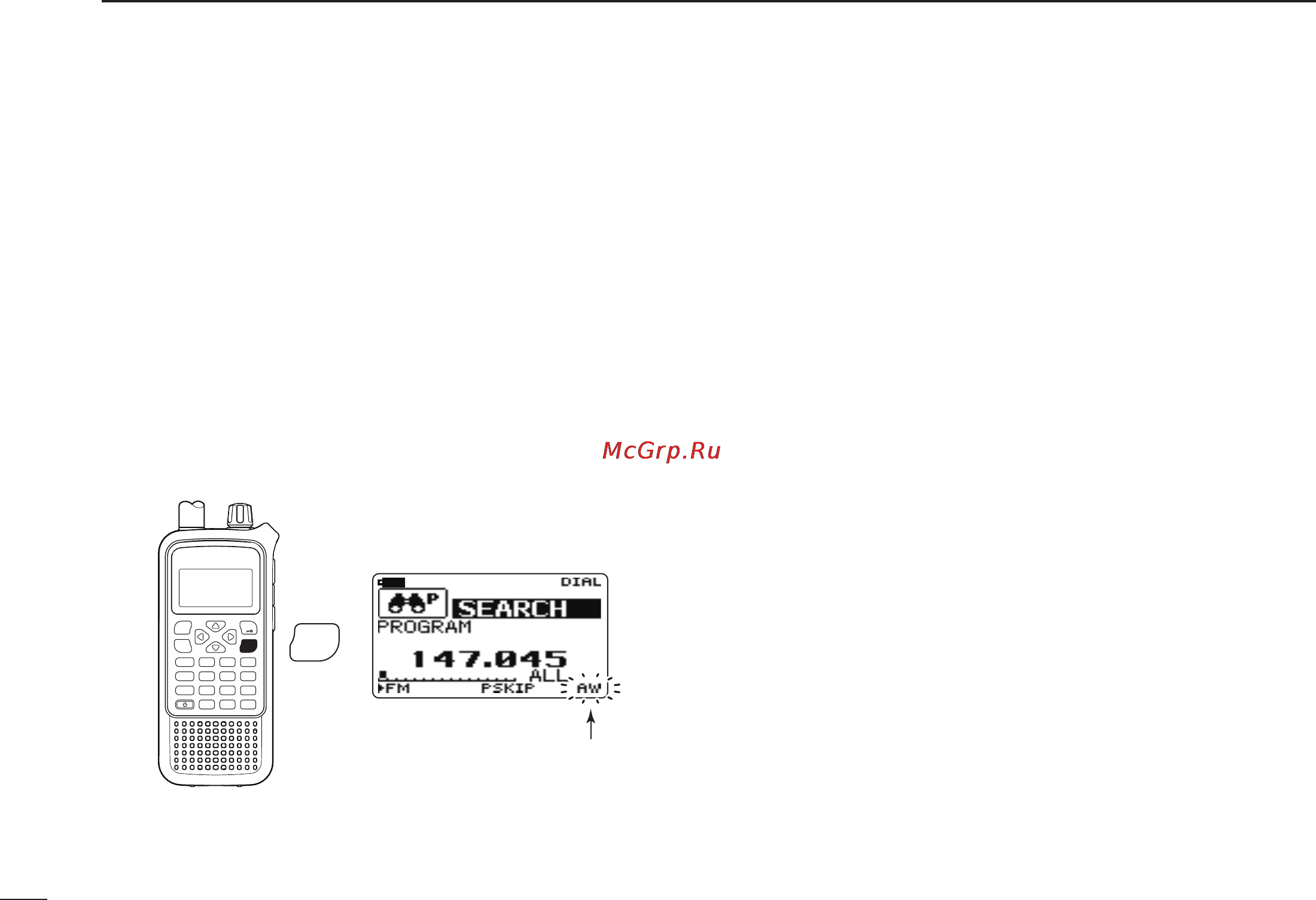

“AW” indicator blinks during
auto write search.
• During auto write search
e Push [HOLD V] to stop the auto write search.
D During auto write searching:
• When a signal is received, search pauses and the fre-
quency is stored into auto write channel group (CH000 –
CH199).
- 2 short beeps sound when stored.
• Search resumes after frequency storing.
• When all channels are stored, the search is cancelled au-
tomatically and 1 long beep sounds.
