Icom IC-RX7 [86/108] Tone dtcs squelch operation
![Icom IC-RX7 [86/108] Tone dtcs squelch operation](/views2/1074718/page86/bg56.png)
New2001
■ Tone/DTCS squelch operation
D Tone and DTCS squelches
The tone squelch (CTCSS) or DTCS squelch opens only
when receiving a signal containing a matching subaudible
tone or DTCS code, respectively. You can silently wait for
calls from group members using the same tone or code.
D Reverse tone/DTCS squelch
The reverse tone/DTCS squelch is convenient if you want
to ignore a specific signal. The receiver mutes the squelch
when a signal with the matched tone or code is received.
“TSQL-R” / “DTCS-R” is displayed when the reverse tone/
DTCS is set.
D Pocket beep
These functions use subaudible tones or DTCS codes for
calling and can be used as a “common pager” to inform you
that someone has called while you were away from the re-
ceiver.

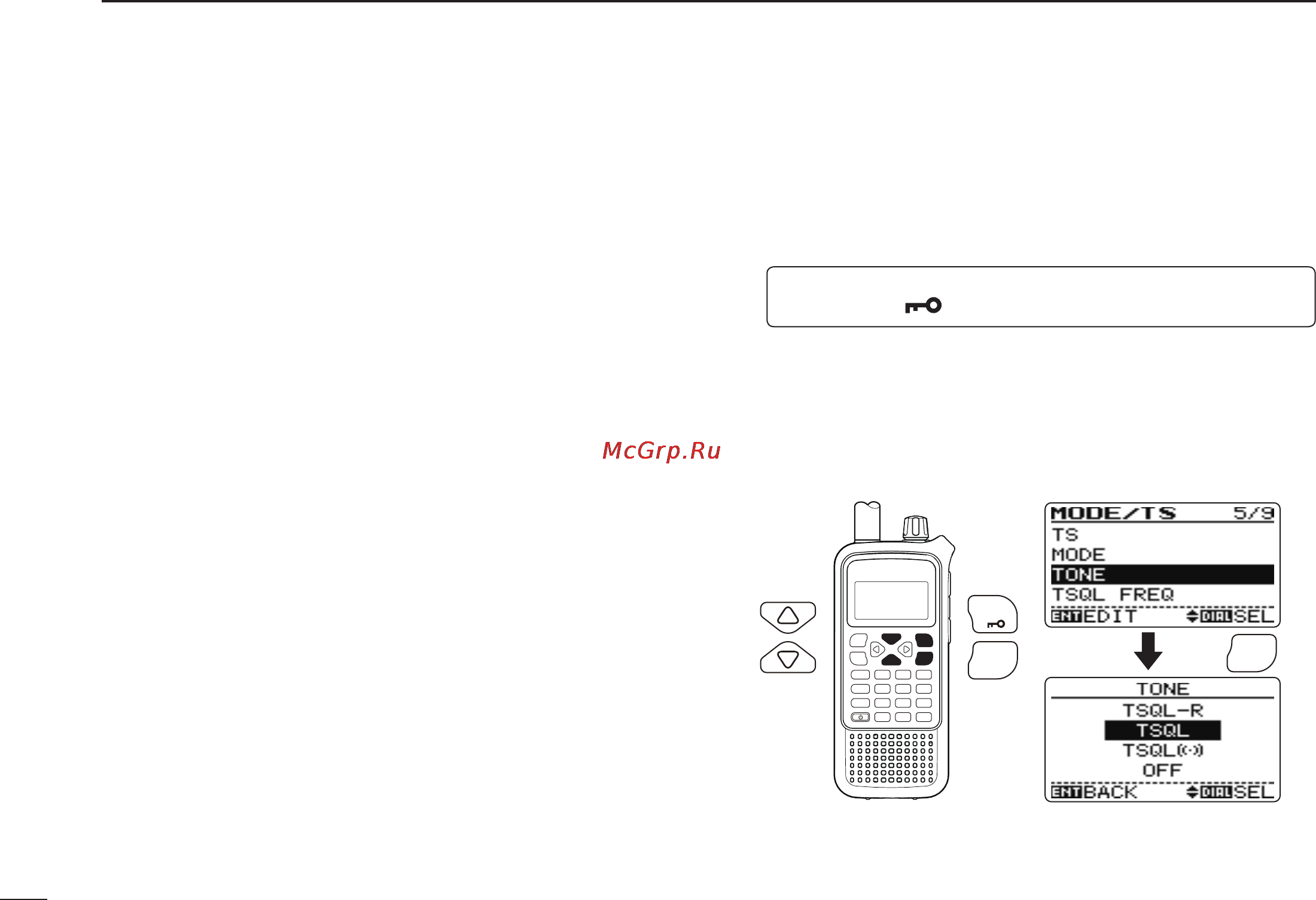

D Setting
q Set the desired operating frequency in FM mode.
w
Enter “TONE” in MODE/TS/TONE... menu.
MENU ➪ MODE/TS/TONE... ➪ TONE (p. 64)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
e Push [r]/[s] (or rotate [DIAL]) to select the tone or
DTCS squelch.
• Tone squelch “TSQL,” tone squelch reverse “TSQL-R,” pocket
beep “TSQLS,” DTCS squelch “DTCS,” DTCS squelch re-
verse “DTCS-R,” DTCS beep “DTCSS” and no tone opera-
tion are available.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
MW
ENT
78
9
OTHER FUNCTIONS
