SEARCH AND SCAN OPERATIONS
New2001 New2001
■ Program search
q

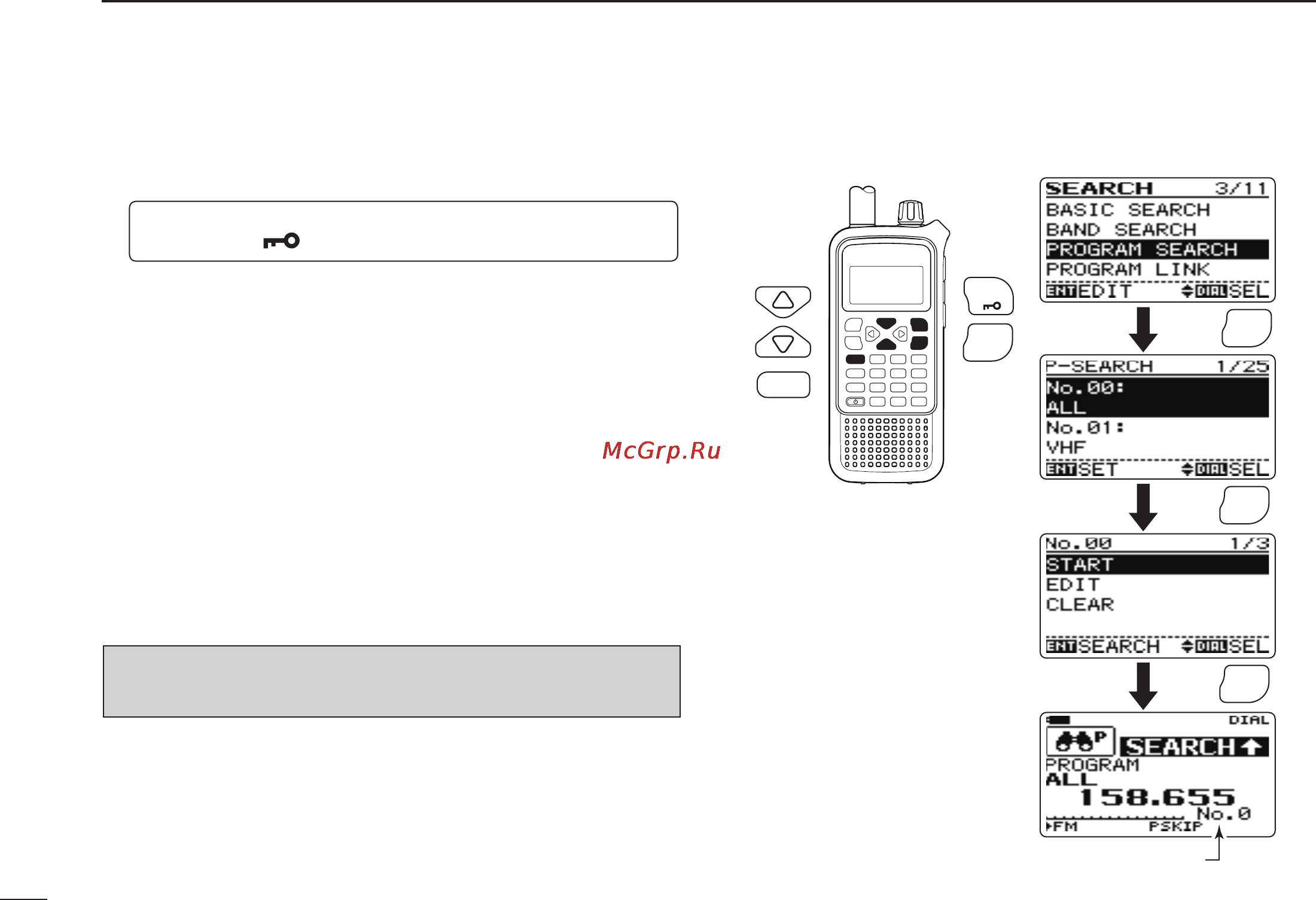

Enter “PROGRAM SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ PROGRAM SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Program number selection screen appears.
w Push [r] or [s] several times (or rotate [DIAL]) to select
the desired program number, then push [ENT MW] to
enter the program.
• A total of 25 program numbers (No. 00 to No. 24) are available.
e Push [ENT MW] again to start the search.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
• After started the search, program number can be changed by
pushing [v] or [w].
r Push [HOLD V] to stop the search temporarily, if desired.
• Push [HOLD V] again to restart the search.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
Push
MW
ENT
Push
MW
ENT
Push
MW
ENT
Selected program
number appears
NOTE: Program searches can be customized, see pages
30, 31 for programming details.
