■ Front, top and side panels
q ANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
• An optional AD-92SMA adapter (p. 92) is available for connect-
ing an antenna with a BNC connector.
w KEYPAD (pgs. 5–7)
e EXTERNAL DC IN JACK [DC 6V]
Connects a battery charger or an optional CP-18A/E
cigarette lighter cable for both charging the installed re-
chargeable battery pack and operating.
r EXTERNAL SPEAKER/CLONE JACK [SP]
Connect a clone cable, optional speaker or head phone, if
desired.
See page 92 for a list of available options.
➥ Connect an optional head phone or earphone.
The internal speaker will not function when any exter-
nal equipment is connected.
➥
Connects to a PC using an optional OPC-478/UC
cloning cable for cloning. Cloning allows you to
quickly and easily transfer the programmed contents
between the IC-RX7 and the connected PC. (p. 86)
➥ Connect an optional CT-17 for remote control opera-
tion. (p. 89)
t CONTROL DIAL [DIAL]
➥
During VFO mode or search holding state, rotate to
tune the operating frequency. (pgs. 18, 22)
➥ During memory mode or scan holding state, rotate to
select the memory channel. (pgs. 18, 55)
➥ During searching or scanning, changes the searching
or scanning direction. (p. 18)
➥ During menu screen operation, rotate to select the set
items or values. (p. 59)
➥ While monitor function is active, rotate to set the
squelch level. (p. 15)
The assigned function for [DIAL] and [r]/[s] can be
exchanged by pushing and holding [NO. DIAL].
New2001
4
New2001
PANEL DESCRIPTION
2
6V
SP
DC
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
q
Speaker

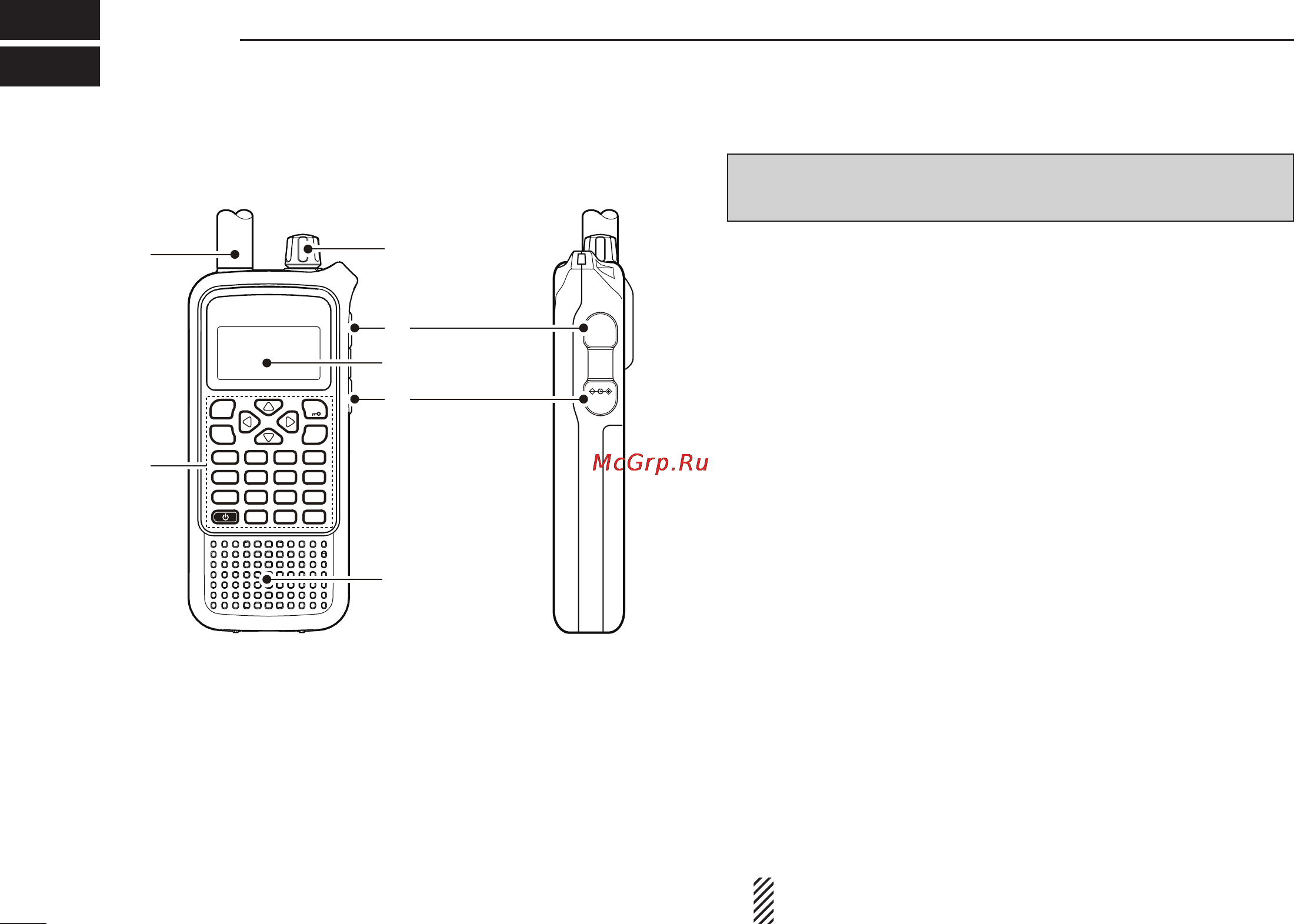

Front view Side view
Function display
w
t
e
r
Keep the jack cover attached when jacks are not in use to
protect contacts from dust and moisture.
