MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ General
MENU screen is used for programming values or conditions
of functions.

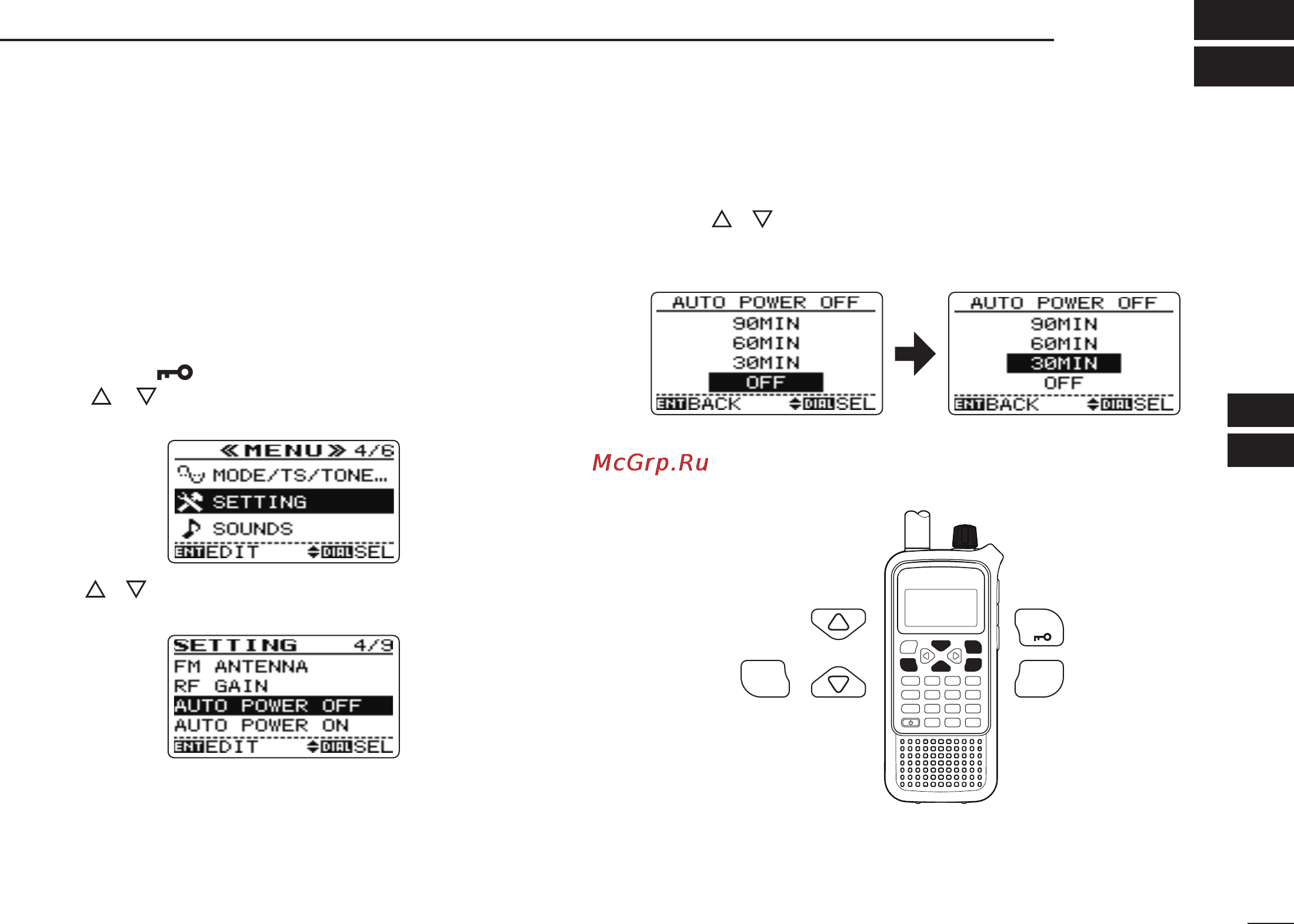

D Entering MENU screen and operation
e.g.) Set “AUTO power OFF” to 30 minutes.
q
Push [MENU ] to enter MENU screen.
w
Push [ ]/[ ] (or rotate [DIAL]) to select the desired
menu group, then push [ENT MW].
e
Push [ ]/[ ] (or rotate [DIAL]) to select the desired item,
then push [ENT MW] (or [w]).
r
Push [ ]/[ ] (or rotate [DIAL]) to select the desired value
or condition, then push [ENT MW] (or [w]) to return to the
setting item selection mode.
t
Push [CLR SQL] to return to frequency indication, or re-
peat steps w to r to set another items.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
MENU
ENT
CLR
SQL
[DIAL]
