Icom IC-RX7 [24/108] Operating mode selection
![Icom IC-RX7 [24/108] Operating mode selection](/views2/1074718/page24/bg18.png)
New2001
16
4
BASIC OPERATION
New2001

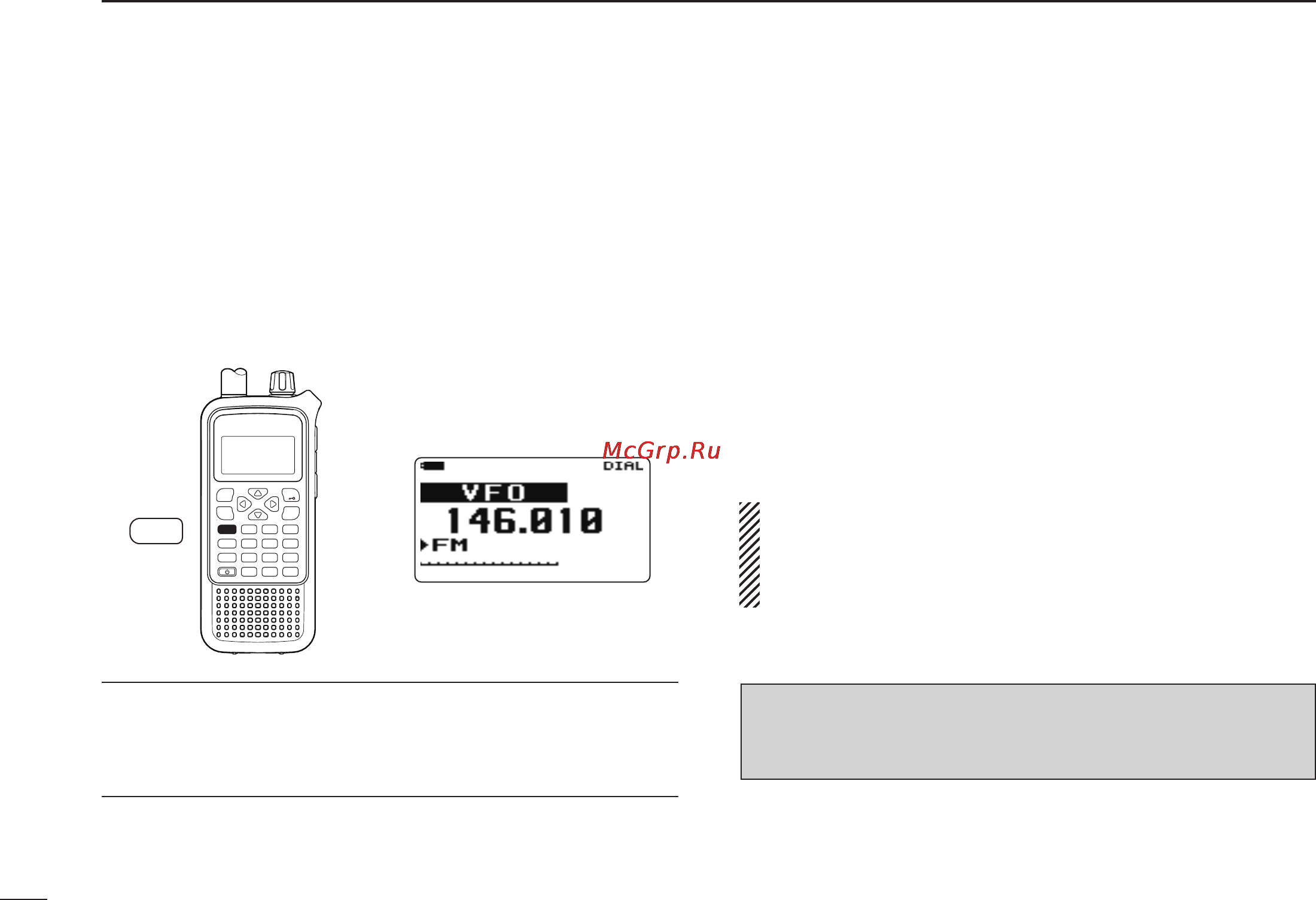

■ Operating mode selection
D VFO mode
VFO mode is used for the desired frequency setting within
the frequency coverage.
➥
Push and hold [HOLD V] for 1 sec. to select VFO mode.
• When VFO mode is selected, the previous displayed frequency,
receiving mode, tuning steps, etc. are copied to VFO mode.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
HOLD V
• VFO mode indication
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for receiving are generated and controlled by the
VFO.
D Operating band selection
The receiver can receive the AM broadcast, HF bands, 50
MHz, FM broadcast, VHF air, 144 MHz, 300 MHz, 400 MHz,
800 MHz* or 1200 MHz bands.
➥
In VFO mode, push [v] or [w] several times to select the
desired frequency band.
• If VFO mode is not selected, such as a scan mode, or weather
channel,
†
push and hold [HOLD V] to select VFO mode first,
then push [v] or [w] to select the desired band. (
†
Available for
USA and CANADA versions only.)
• Search mode is also selectable operating bands.
Available frequency bands are different depending on ver-
sion. See the specification for details. (p. 91)
*
Some frequency ranges are blocked for the U.S.A. ver-
sion by regulation.
Set the attenuator function ON (p. 75) if the received signal
is blocked by other radio station when using a third party
high-gain antenna.
