SEARCH AND SCAN OPERATIONS
New2001
48

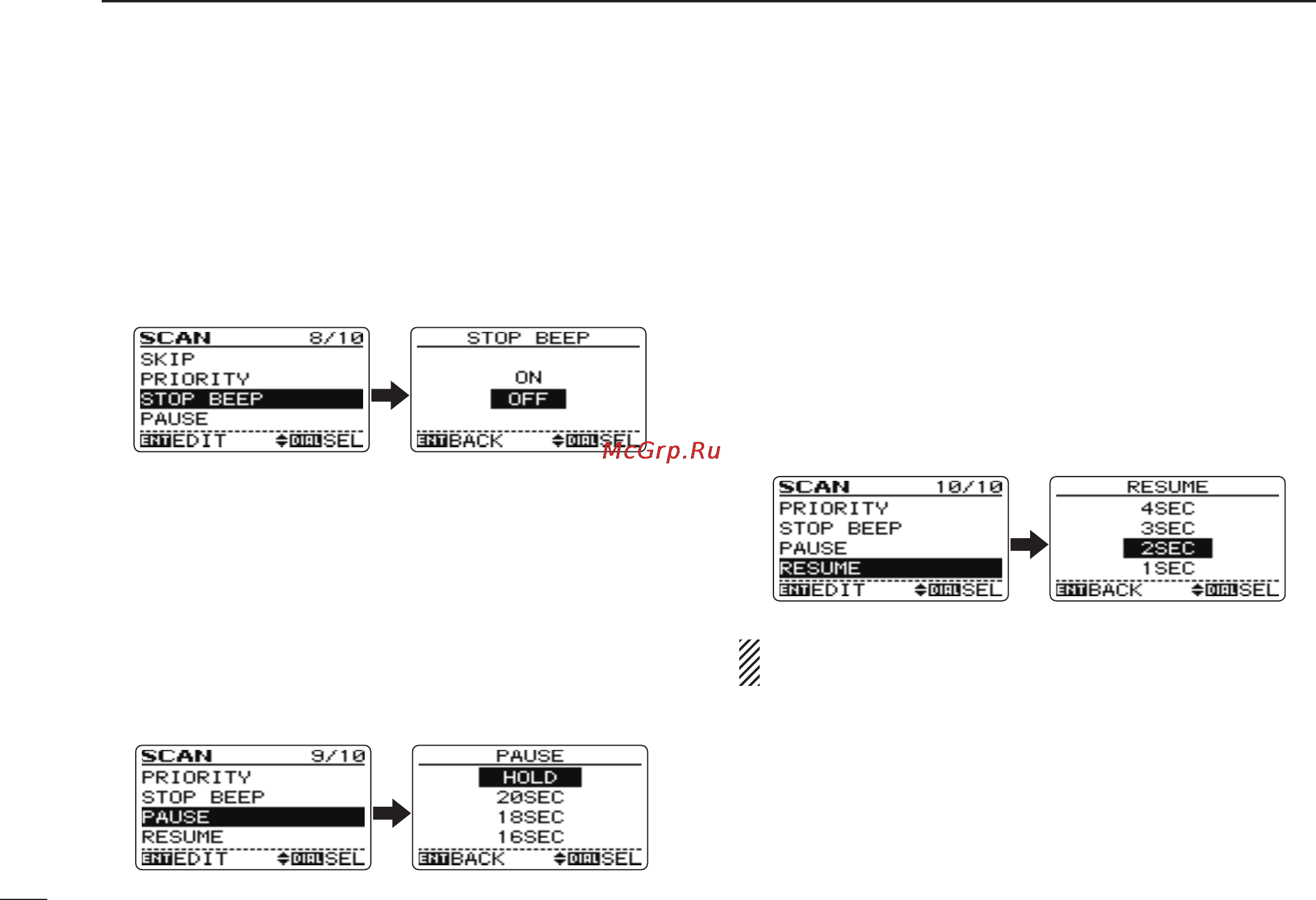

■ Other SCAN menu items
D Stop beep (STOP BEEP)
Selects the stop beep setting for scan.
• OFF : The stop beep is turned OFF. (default)
• ON : The receiver emits a long beep when a scan
pauses with signal is received.
D Scan pause timer (PAUSE)
Selects the scan pause time. When receiving signals, the
scan pauses according to the scan pause time.
• 2–20 SEC : Scan pauses for 2–20 sec. on a received
signal in 2 sec. steps.
• HOLD : Scan pauses on a received signal until it
disappears. Rotate [DIAL] to resume man-
ually.
(default)
D Scan resume timer (RESUME)
Selects the scan resume time from a pause after the re-
ceived signal disappears.
• 0 SEC : Scan resumes when a received signal disap-
pears.
• 1–5 SEC : Scan pauses 1–5 sec. after a received signal
disappears. (default: 2 sec.)
• HOLD : Scan remains paused on the received signal
according to the scan pause timer even if it
disappears. Rotate [DIAL] to resume manu-
ally.
Scan resume timer must be set shorter than scan pause
timer
(previous item), otherwise this timer does not activate.
