New2001
49
7
MEMORY PROGRAMMING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
■ General description
A total of 1600 programming memory channels are available.
The memory channels may be saved in up to 26 categories,
and then sub-categorized even further!
The memory organization is follows:
q Category : Max. 26
w Group : Max. 100 (in each category)
e Name : Max. 100 (in each group)
r CH : Max. 6 (in each name)
D Memory channel contents
The following information can be programmed into memory
channels:
• Operating frequency
(pgs. 20, 21)
• Duplex direction (+DUP or –DUP) with an offset fre-
quency
(pgs. 76, 77)
• Tuning step (p. 23)
• Receiving mode (p. 19)
• Attenuator ON/OFF (p. 75)
• Skip setting (pgs. 36, 46)
• Priority setting (p. 47)
• Stop beep (p. 48)
• Tone squelch or DTCS squelch ON/OFF (p. 78)
• Tone squelch frequency or DTCS code with polarity
(pgs. 80, 81)
• VSC setting (p. 85)
CAUTION!
Memory data can be erased by static electricity, electric
transients, etc. In addition, they can be erased by malfunc-
tion and during repairs. Therefore, we recommend that
memory data be written down or be saved to a PC using
the optional CS-RX7
cloning software.

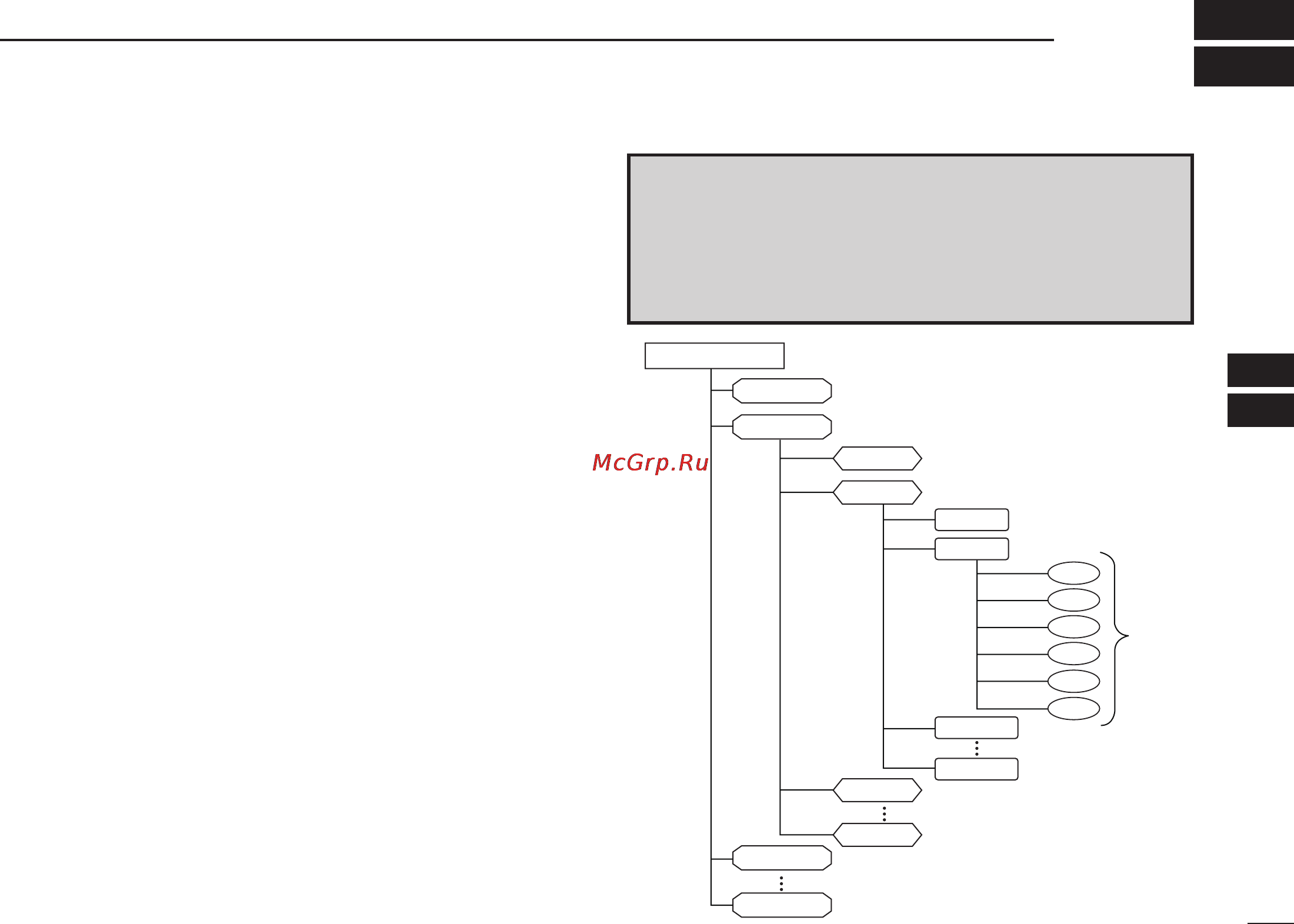

Memory channels
Category 01
Category 02
Category 03
Category 26
Name 01
Name 02
Name 03
Name 100
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
q
w
e
r
Group 01
Group 02
Group 03
Group
100
