New2001
15
4
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

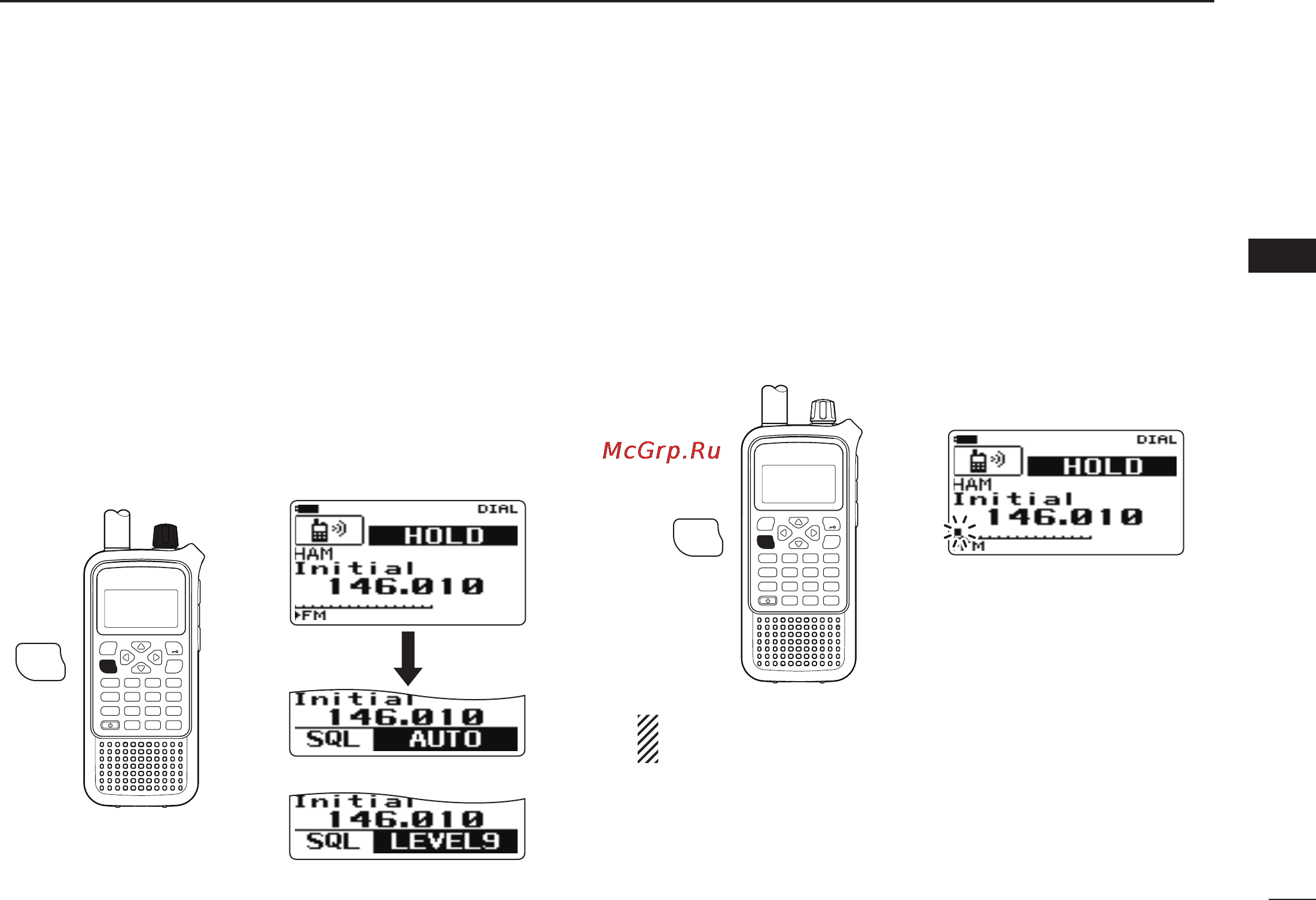

■ Setting squelch level
The squelch circuit mutes the received audio signal depend-
ing on the signal strength. The receiver has 9 squelch levels,
a continuously open setting and an automatic squelch set-
ting.
➥
After pushing and holding [CLR SQL] for 1 sec., rotate
[DIAL] to select the squelch level.
• “ LEVEL 1” is loose squelch (for weak signals) and “LEVEL 9” is
tight squelch (for strong signals).
• “ AUTO” indicates automatic level adjustment by a noise pulse
counting system.
• “OPEN” indicates continuously open setting.
• Push [CLR SQL] to return to normal operating mode.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
CLR
SQL
[DIAL]
Automatic squelch
Maximum level
■ Monitor function
This function is used to listen to weak signals without dis-
turbing the squelch setting or to open the squelch manually
even when mute functions such as the tone squelch are in
use.
➥
Push and hold [CLR SQL] for 1 sec. to monitor the oper-
ating frequency.
• Push [CLR SQL] to clear the monitor function.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
CLR
SQL
The 1st segment blinks
The squelch adjustment is available when the monitor
function is active. See details on left.
