Icom IC-RX7 Инструкция по эксплуатации онлайн [79/108] 69235
![Icom IC-RX7 Инструкция по эксплуатации онлайн [79/108] 69235](/views2/1074718/page79/bg4f.png)
New2001
71
8
MENU SCREEN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

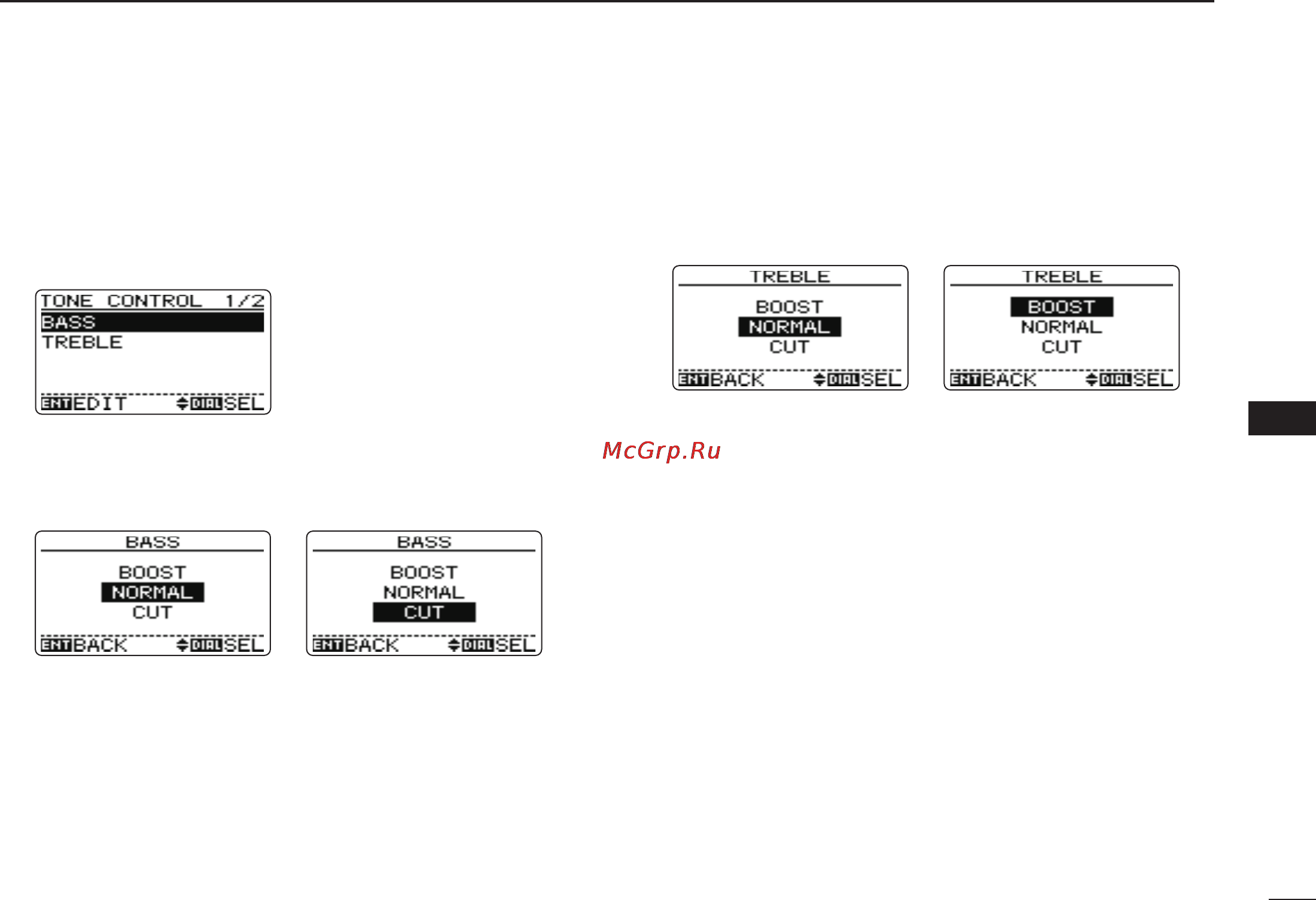

D Tone control (TONE CONTROL)
Sets the Bass and Treble level of the receive audio tone. This
setting is mostly effective when a head phone, such as an
optional HP-4 is used.
• Bass level (BASS)
Selects the bass level from CUT, NORMAL (default) and
BOOST.
Normal setting Bass tone is reduced
• Treble level (TREBLE)
Selects the bass level from CUT, NORMAL (default) and
BOOST.
Normal setting Treble tone is boosted
