Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
152

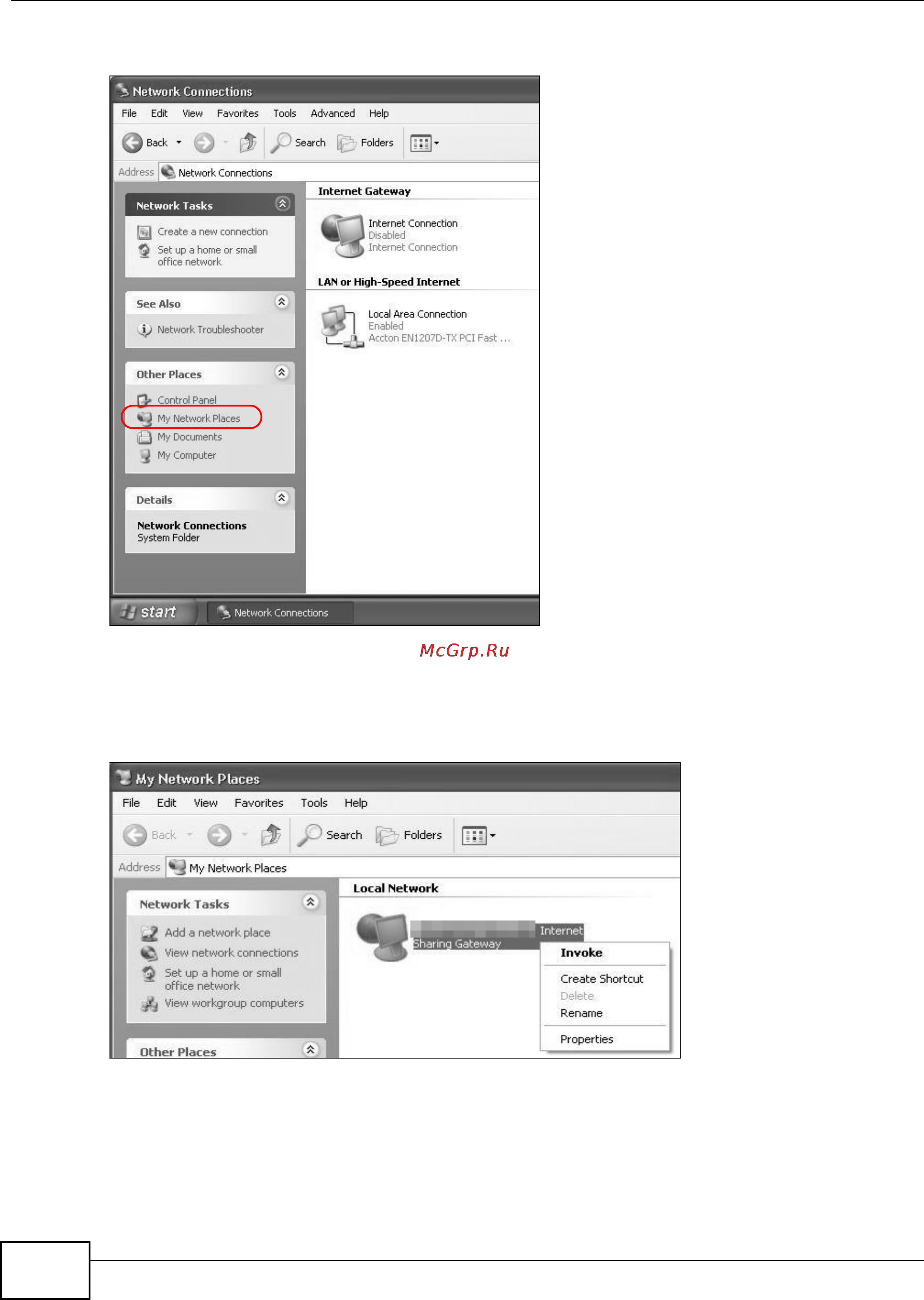

3 Select My Network Places under Other Places.
Network Co nnections
4 An icon with the description for each UPnP-enabled device displays under Local Network.
5 Right-click on the icon for your Device and select Invoke. The web configurator login screen
displays.
Network Co nnections: My Netw ork Places
