Chapter 8 Home Networking
VMG1312-B10B / VMG1312-B30B Series User’s Guide
153

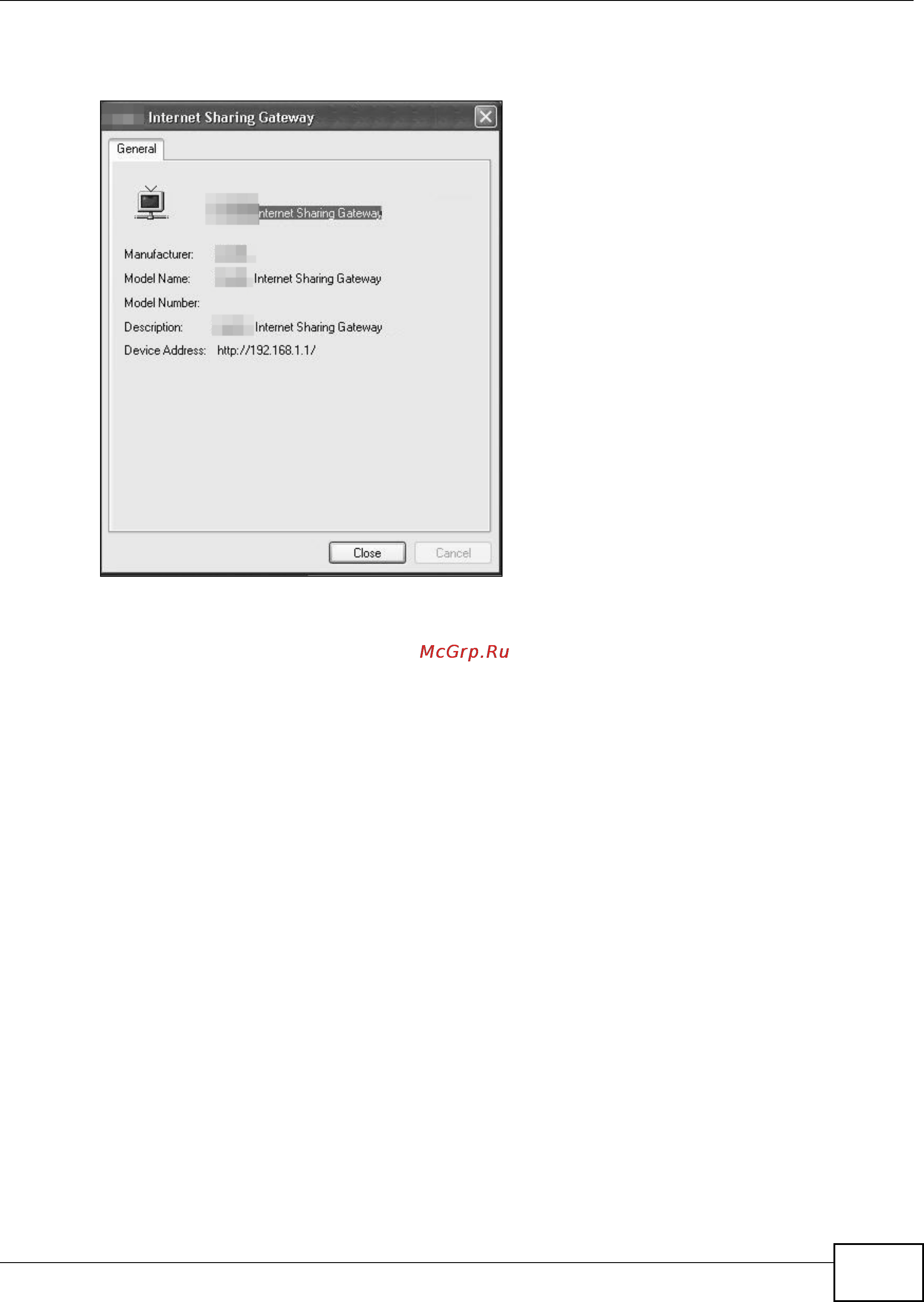

6 Right-click on the icon for your Device and select Properties. A properties window displays with
basic information about the Device.
Network Co nnections: My Netw ork Places: Proper ties: Example
