Chapter 2 The Web Configurator
VMG1312-B10B / VMG1312-B30B Series User’s Guide
24
3 A password screen displays. To access the administrative web configurator and manage the Device,
type the default username admin and password 1234 in the password screen and click Login. If
advanced account security is enabled (see Section 28.2 on page 273) the number of dots that
appears when you type the password changes randomly to prevent anyone watching the password
field from knowing the length of your password. If you have changed the password, enter your
password and click Login.

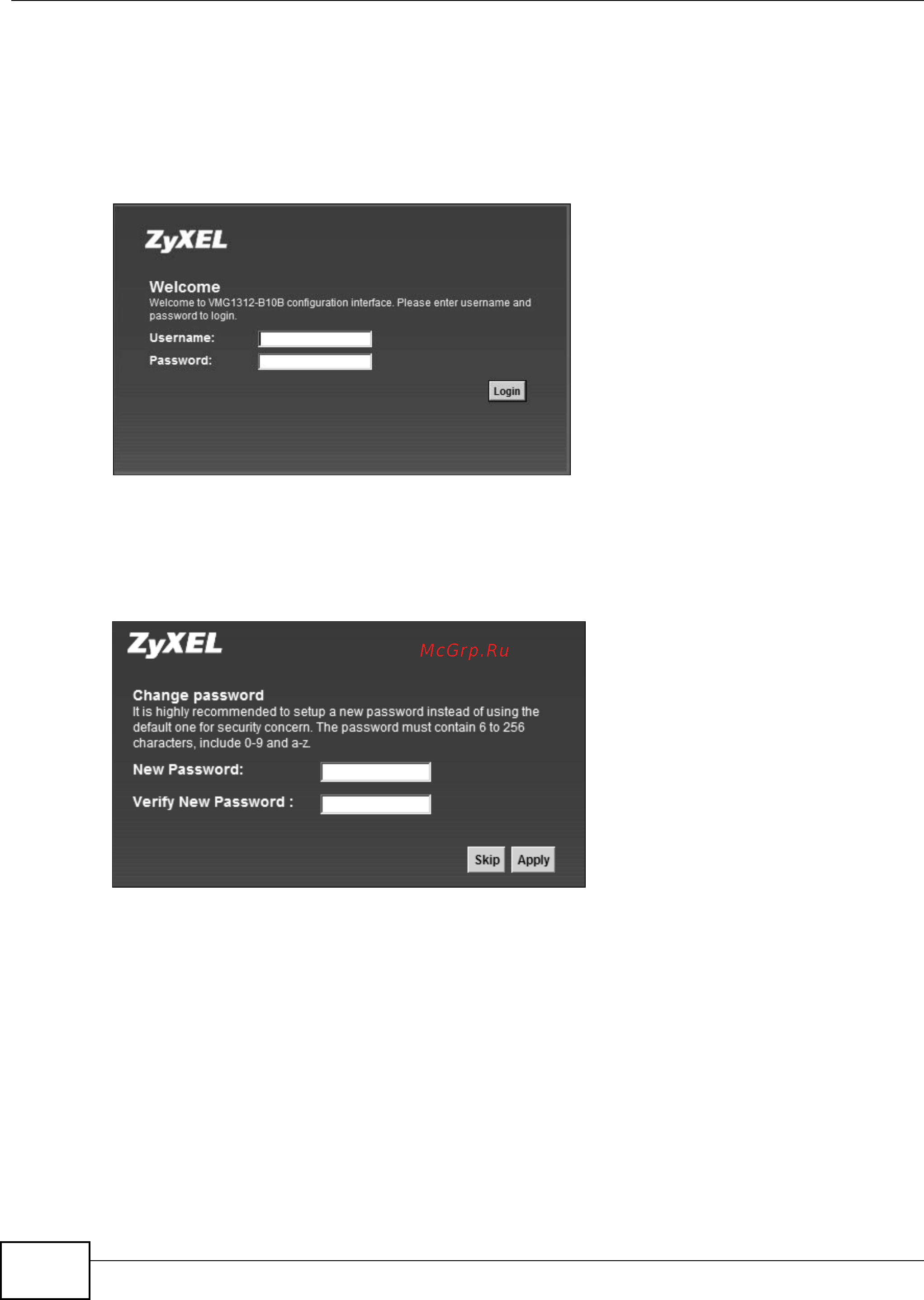

Figure 6 Password Screen
4 The following screen displays if you have not yet changed your password. It is strongly
recommended you change the default password. Enter a new password, retype it to confirm and
click Apply; alternatively click Skip to proceed to the main menu if you do not want to change the
password now.
Figure 7 Change Password Screen
5 The Quick Start Wizard screen appears. You can configure the Device’s time zone, basic Internet
access, and wireless settings. See Chapter 3 on page 31 for more information.
