Chapter 2 The Web Configurator
VMG1312-B10B / VMG1312-B30B Series User’s Guide
25
6 After you finished or closed the Quick Start Wizard screen, the Network Map page appears.

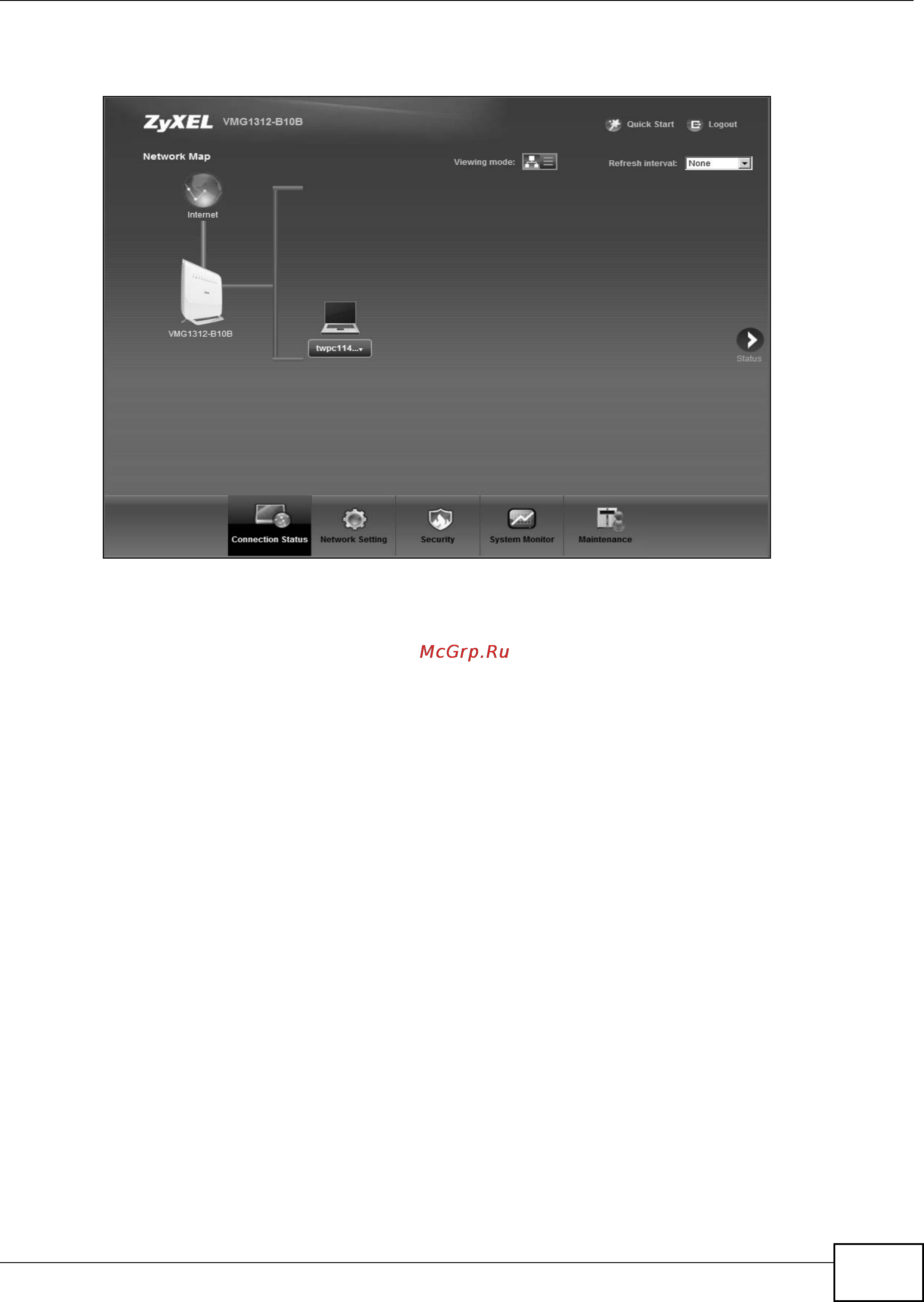

Figure 8 Network Map
7 Click Status to display the Status screen, where you can view the Device’s interface and system
information.
