Name

Status

Indication

1000Mbps

A 1000Mbps device is connected to the

corresponding port but no activity.

Off

No device is connected to the corresponding port.

Link/Act

A device is linked to the corresponding port and

running properly.

Flashing

Data is being transmitted or received.

Off

No device is linked to the corresponding port.

 Console (RJ-45) Port

Designed to connect with the serial port of a computer or terminal for monitoring and

configuring the switch.

 Console (USB) Port

Designed to connect with the USB port of a computer for monitoring and configuring the

switch. The switch has an RJ-45 console port and a micro-USB console port available. Console

input is active on only one console port at a time. By default, the micro-USB connector takes

precedence over the RJ-45 connector.

 10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each

10/100/1000Mbps RJ45 port has a corresponding 1000Mbps LED and Link/Act LED.

 SFP Port

Designed to install the SFP module. T2600G-28TS features 4 individual SFP ports and supports

1000M SFP module connection only.

The front panel of T2600G-52TS is shown as Figure 2-2.

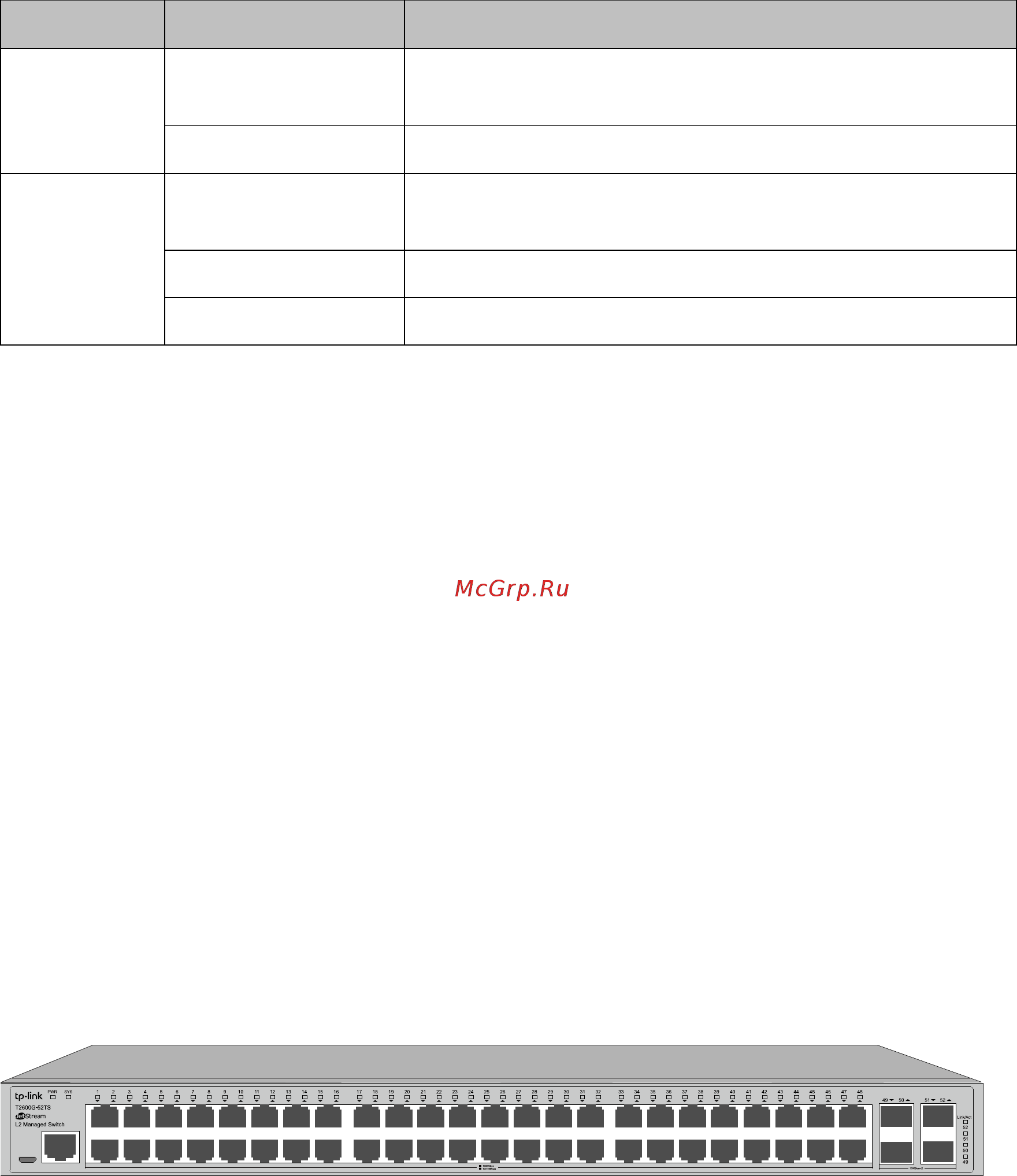

ConsoleConsole(USB)

Figure 2-2 Front Panel of T2600G-52TS

The following parts are located on the front panel of T2600G-52TS:
