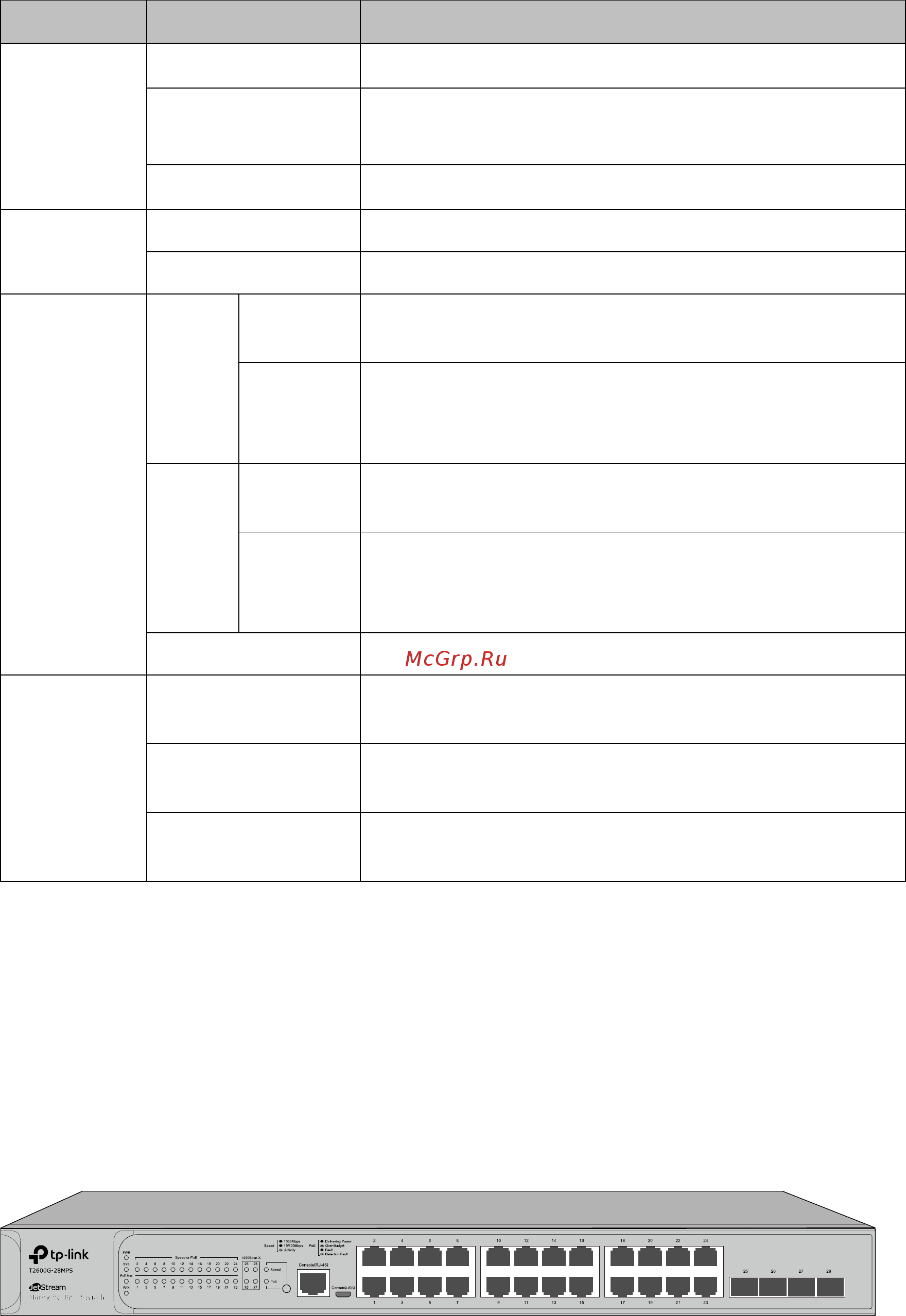

LEDs
Name
Status
Indication
PWR
On
The switch is powered on.
Off
The switch is powered off or power supply is
abnormal.
Flashing
Power supply is abnormal.
SYS
Flashing
The switch works properly.
On/Off
The switch works improperly.
10/100/1000
Mbps (port
1-48)
Green
On
A 1000Mbps device is connected to the
corresponding port but no activity.
Flashing
A 1000Mbps device is connected to the
corresponding port and d
ata is being transmitted or
received.
Yellow
On
A 10/100Mbps device is connected to the
corresponding port but no activity.
Flashing
A 10/100Mbps device is connected to the
corresponding port and d
ata is being transmitted or
received.
Off
No device is connected to the corresponding port.
Link/Act
(port 49-52)
On
There is a device linked to the corresponding SFP
port but no activity.
Flashing
The corresponding SFP port is transmitting or
receiving data.
Off
There is no device linked to the corresponding SFP
port.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each
10/100/1000Mbps RJ45 port has a corresponding 1000Mbps LED.
SFP Port
Designed to install the SFP module. T2600G-52TS features 4 individual SFP ports and supports
1000M SFP module connection only.
The front panel of T2600G-28MPS is shown as Figure 2-3.
Figure 2-3 Front Panel of T2600G-28MPS
T2600G-28MPS has an LED mode switch button which is for switching the LED status
indication. When the Speed LED is on, the port LED is indicating the data transmission rate.
10
