6-3

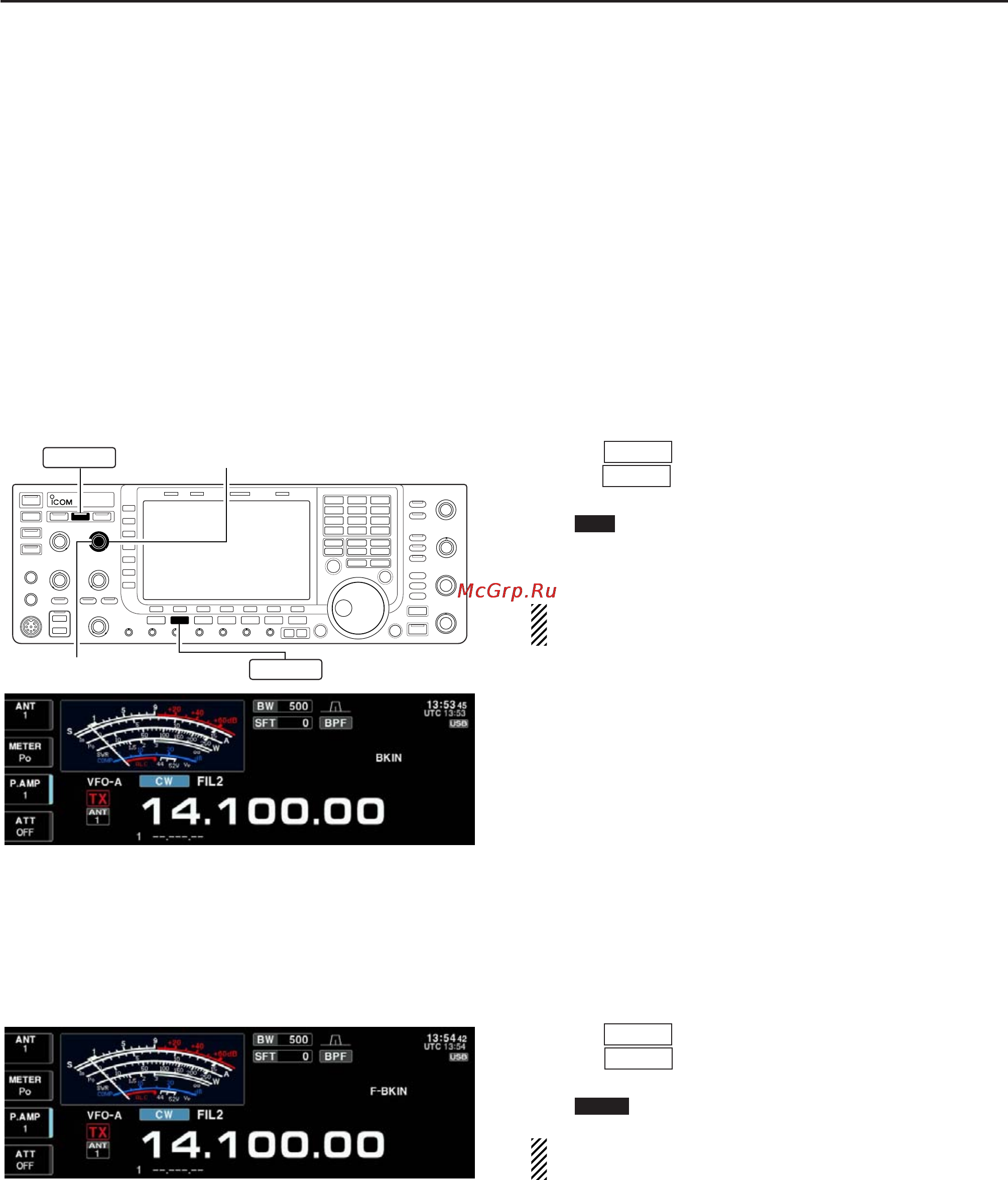

■ Break-in function
The break-in function is used in CW mode to automat-
ically toggle the transceiver between transmit and re-
ceive when keying. The IC-7700 is capable of full
break-in or semi break-in.
DD
Semi break-in operation
During semi break-in operation, the transceiver imme-
diately transmits when keyed and during key up peri-
ods returns to receive after a pre-set delay.
q Push to select CW or CW-R mode.
w Push once or twice to turn the semi break-in
function ON.
•“ ” appears.
e Rotate [DELAY] to set the break-in delay time (the
delay from transmit to receive).
When using a paddle, rotate [KEY SPEED] to adjust
the keying speed.
DD
Full break-in operation
During full break-in operation, the transceiver immedi-
ately transmits when keyed and during key up periods
immediately returns to receive.
q Push to select CW or CW-R mode.
w Push once or twice to turn the full break-in
function ON.
•“ ” appears.
When using a paddle, rotate [KEY SPEED] to adjust
the keying speed.
F-BKIN
BK-IN
CW
BKIN
BK-IN
CW
BK-IN
CW
[DELAY] (outer control)
[KEY SPEED] (inner control)
6
FUNCTIONS FOR TRANSMIT
