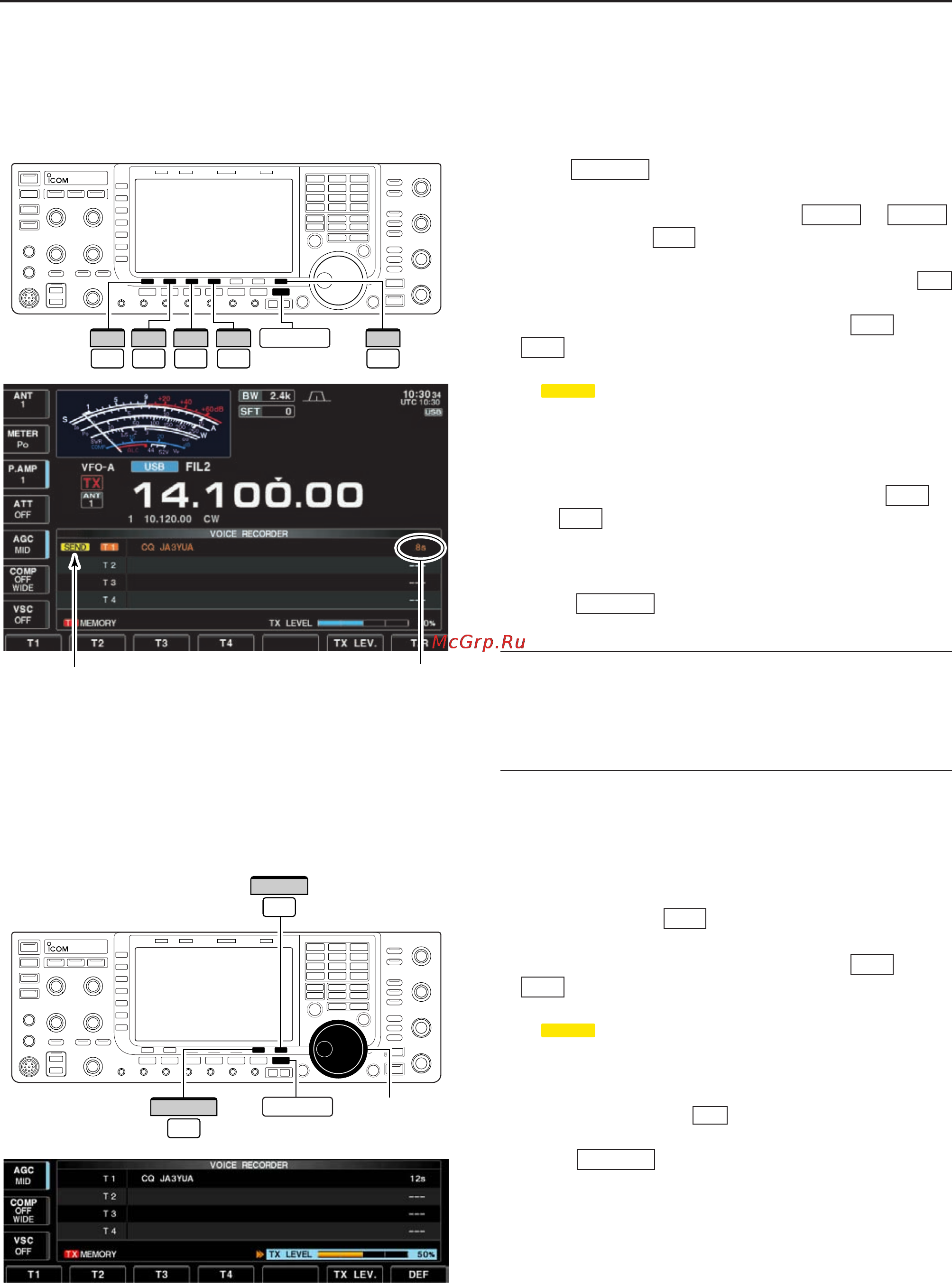

■ Sending a recorded message
q Push several times to close a multi-func-
tion screen, if necessary.
w Select a phone mode by pushing or .
e Push [VOICE] to call up the voice recorder
screen.
• If the receive voice message appears, push [T/R]
to select TX message (T1–T4).
r Push the desired message switch, [T1] to [T4]
, momentarily to transmit the contents.
• The transceiver transmits automatically.
•“ ” indicator appears and the memory timer
counts down.
•You hear the transmitted message from the speaker as
the default. This can be turned OFF in voice set mode.
(p. 7-9)
t Push the selected message switch, [T1] to
[T4] , again to stop, if desired.
• The transceiver returns to receive automatically when all
of the recorded contents in the message are transmit-
ted.
y Push twice to exit the voice memory
screen.
✔
For your information
When an external keypad is connected to [EXT KEY-
PAD], the recorded message, T1–T4, can be transmit-
ted without opening the voice recorder screen.
See page 2-7 for details.
DD
Transmit level setting
q Call up the voice recorder screen as described as
above.
w Push [TX LEV.] to select the voice memory
transmit level set condition.
e Push the desired message switch, [T1] to [T4]
, momentarily to transmit the contents.
• The transceiver transmits automatically.
•“ ” indicator appears and the memory timer
counts down.
r Rotate the main dial to adjust the transmit voice
level.
• Push and hold [DEF] for 1 sec. to select the default
condition.
t Push to return to the voice recorder
screen.
EXIT/SET
F-7
SEND
F-4
F-1
F-6
EXIT/SET
F-4
F-1
SEND
F-4
F-1
F-7
F-2
AM/FMSSB
EXIT/SET
F-1
T1
F-2
T2
F-3
T3
F-4
T4
F-7
T/R
EXIT/SET
Appears
Counts down
Main dial
EXIT/SET
F-6
TX LEV.
F-7
DEF
7
