9-6

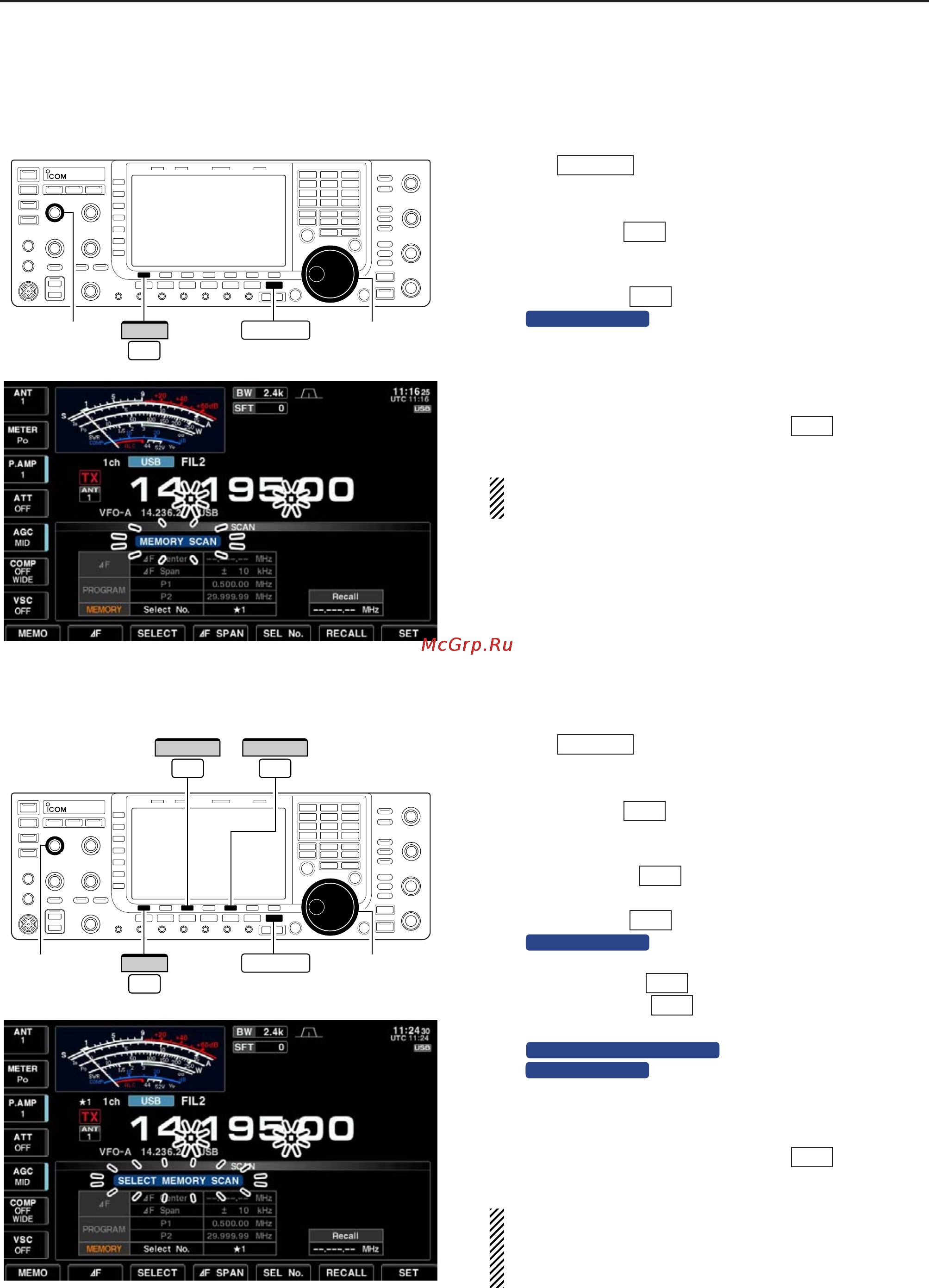

■ Memory scan operation
q Push several times to close a multi-func-
tion screen, if necessary.
w Select memory mode.
e Push [SCAN] to select the scan screen.
r Set [SQL] open or closed.
• See page 9-2 for squelch condition.
t Push [MEMO] to start the memory scan.
•“ ” and decimal points blink while scan-
ning.
y When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
u To cancel the scan, push [MEMO] .
• Rotating the main dial also cancels the scan.
2 or more memory channels must be programmed
for memory scan to start.
■ Select memory scan operation
q Push several times to close a multi-func-
tion screen, if necessary.
w Select memory mode.
e Push [SCAN] to select the scan screen.
r Set [SQL] open or closed.
• See page 9-2 for squelch condition.
t Push [SEL No.] several times to select the se-
lect scan number from ★1, ★2, ★3 and ★1,2,3.
y Push [MEMO] to start the memory scan.
•“ ” and decimal points blink while scan-
ning.
u Push [SELECT] to start select memory scan;
push [SELECT] again to return to memory
scan, if desired.
•“ ” blinks instead of
“” during select memory scan.
i When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
o To cancel the scan, push [MEMO] .
• Rotating the main dial also cancels the scan.
2 or more memory channels must be designated as
select memory channels, as well as the same select
scan channel number, for select memory scan to
start.
