12-23
12
SET MODE
■ File loading
By loading the saved setting file from the USB-Mem-
ory, you can easily set up another IC-7700—several
operators settings can easily be applied to one IC-
7700.

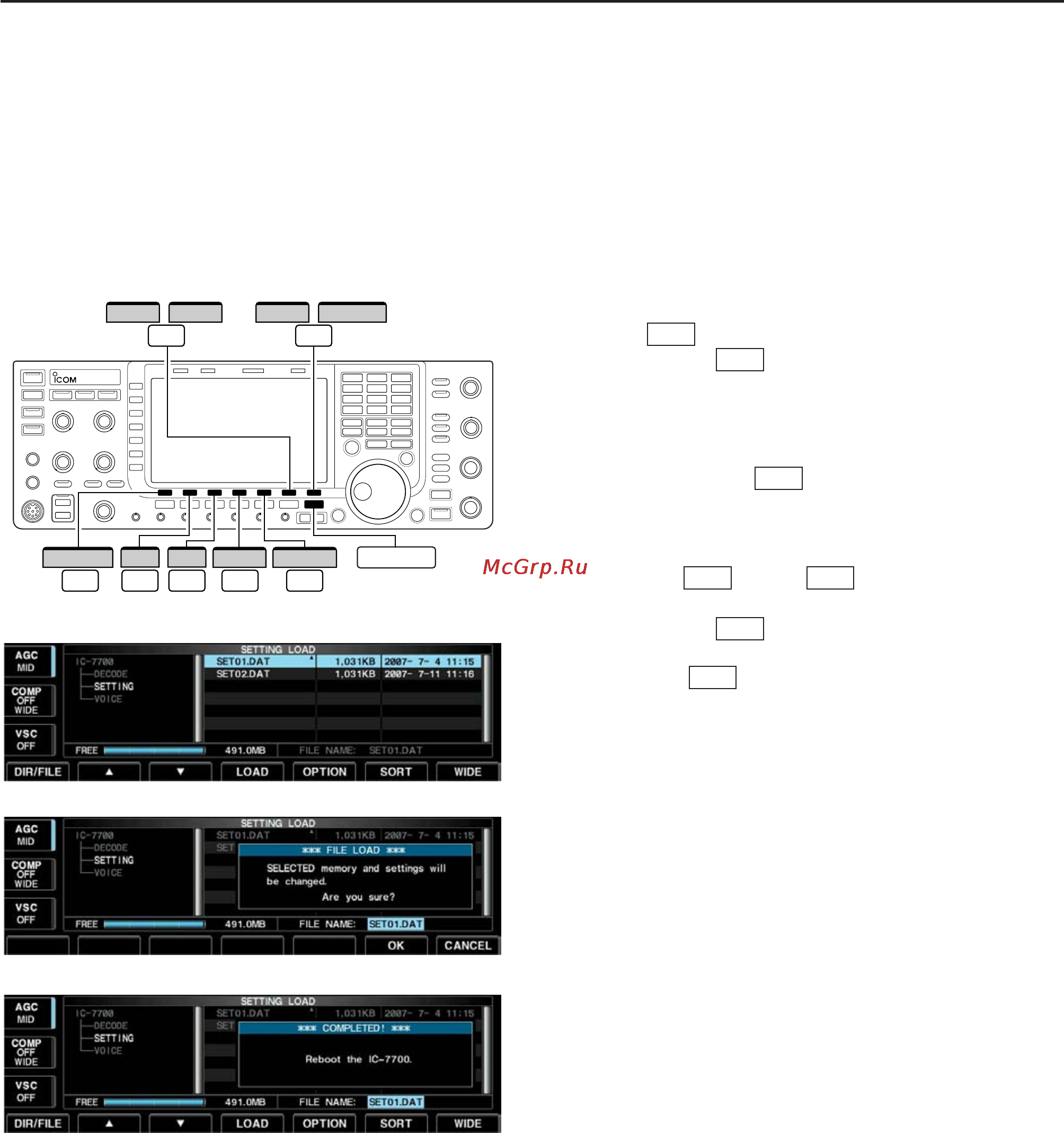

q During set mode menu screen indication, push
[USB] to select USB set menu screen.
w Push [LOAD] to select setting load screen.
• The indicator above the USB connectors and “USB” in-
dicator on the display blink.
• After the USB-Memory contents are displayed, the indi-
cators stop blinking.
e Push [OPTION] to select load option set
mode, then set the desired loading conditions, if de-
sired.
• See page 12-21 for details.
r Push [Y] or [Z] to select the desired
setting file.
t Push [LOAD] .
• Confirmation screen appears.
y Push [OK] to starts loading.
• After the loading is completed, the message dialog, “Re-
boot the IC-7700,” appears.
u Turn the transceiver power OFF then ON to make
the setting effective.
F-6
F-4
F-3F-2
F-5
F-1
F-7
DIR/FILE
F-1
F-7
WIDE CANCEL
F-5
OPTION
F-6
SORT OK
F-4
LOAD
//
F-2
∫
F-3
√
EXIT/SET
