4-16
DD

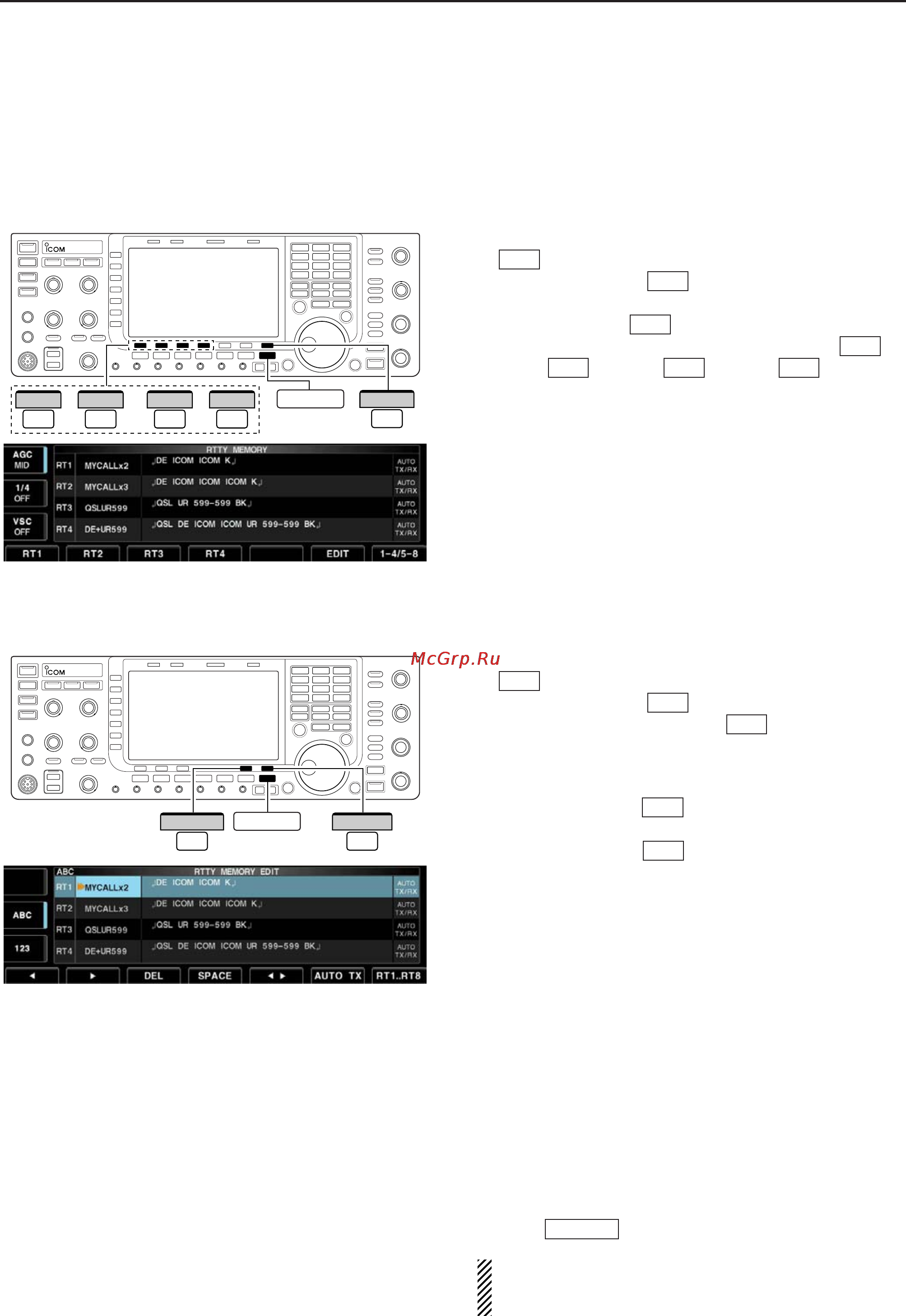

RTTY memory transmission
Pre-set characters can be sent using the RTTY mem-
ory. Contents of the memory are set using the edit
menu.
q During RTTY mode operation, push [DECODE]
to select RTTY decode screen.
w Push [TX MEM] to select RTTY memory
screen.
e Push [1–4/5–8] to select memory bank then
push one of the function keys ([RT1] to
[RT4] or [RT5] to [RT8] ).
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when function key is
pushed, or transmitted after [F12] on the connected key-
board is pressed, depending on auto transmission/re-
ception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
DD
Automatic transmission/reception setting
q During RTTY mode operation, push [DECODE]
to select RTTY decode screen.
w Push [TX MEM] to select RTTY memory
screen, then push [EDIT] to select RTTY
memory edit screen.
•RTTY memory contents of the Channel 1 (RT1) is se-
lected.
e Push [RT1..RT8] several times to select the
desired RTTY memory.
r Push [AUTO TX] several times to select the
desired condition as follow.
• AUTO TX/RX : Automatically transmits the se-
lected memory and returns to re-
ceive after the transmission.
• AUTO TX : Automatically transmits the se-
lected memory. To return to re-
ceive, press [F12] on the key-
board.
• AUTO RX : Press [F12] on the keyboard to
transmit the selected memory. Au-
tomatically returns to receive after
the transmission.
• No indication : Press [F12] on the keyboard to
transmit the selected memory and
press [F12] again to return to re-
ceive.
t Push to exit RTTY memory edit condition.
NOTE: The transceiver always functions in the
“AUTO TX/RX” setting when no keyboard is con-
nected.
EXIT/SET
F-6
F-7
F-6
F-4
F-3
F-4F-1F-4
F-1
F-7
F-4
F-3
EXIT/SET
F-7
RT1..RT8
F-6
AUTO TX
–
–or
F-7
1–4/5–8
F-1
RT1
F-4
RT4
F-1
RT5
F-4
RT8
EXIT/SET
