16-4

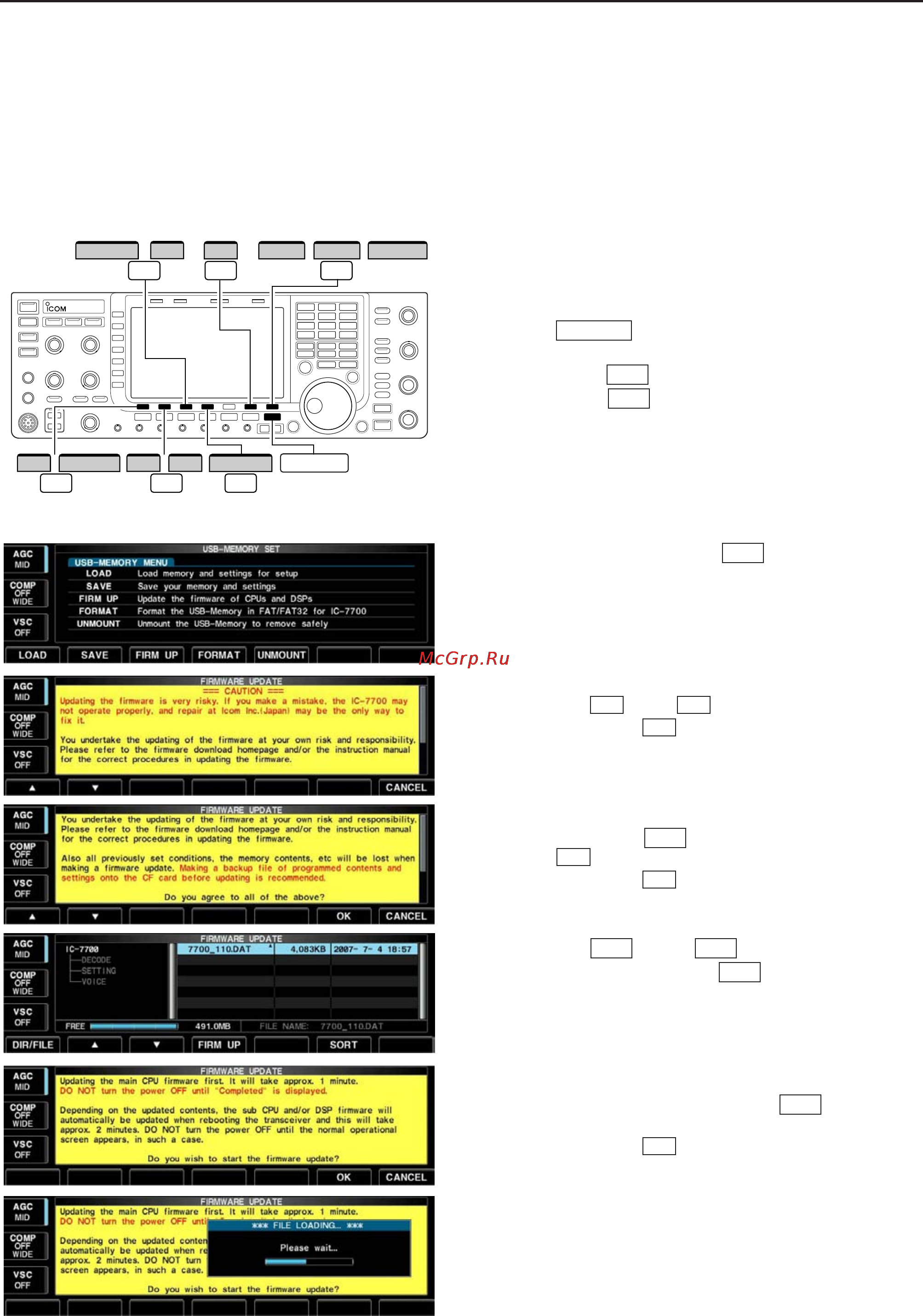

■ Firmware update— USB-Memory
When updating the firmware with the USB-Memory, no
IP address or subnet mask settings are necessary.
q Copy the downloaded firmware data into the USB-
Memory (“IC-7700” folder).
• The USB-Memory must have been formatted by the IC-
7700.
w Insert the USB-Memory into the USB connector.
e Push several times to close a multi-func-
tion screen, if necessary.
r Push [SET] to select set mode menu screen.
t Push [USB] to select USB-Memory set menu.
y Push and hold [FIRM UP] for 1 sec.
u Read the displayed precaution carefully.
• Push [Y] or [Z] to scroll the indication.
• Push [CANCEL] to cancel the firmware updating.
i After you read and understand all of the precau-
tions, push [OK] .
• [OK] appears only following the precautions.
• Push [CANCEL] to cancel the firmware updating.
o Push [Y] or [Z] to select the firmware
file, then push [FIRM UP] .
!0 Read the displayed precautions carefully.
!1 If you agree, push and hold [OK] for 1 sec. to
start the firmware update.
• Push [CANCEL] to cancel the firmware updating.
!2 While loading the firmware from the USB-Memory,
the dialog as at left is displayed.
F-7
F-6
F-4
F-3F-2
F-7
F-6
F-6
F-7
F-2F-1
F-3
F-7
F-7
EXIT/SET
/
∫
DIR/FILE
F-1
F-7
USB CANCELFIRM UP
FIRM UP
F-6
OK
F-3
F-4
/
SET
//
/
F-2
√ ∫
√
EXIT/SET
16
UPDATING THE FIRMWARE
