12-2

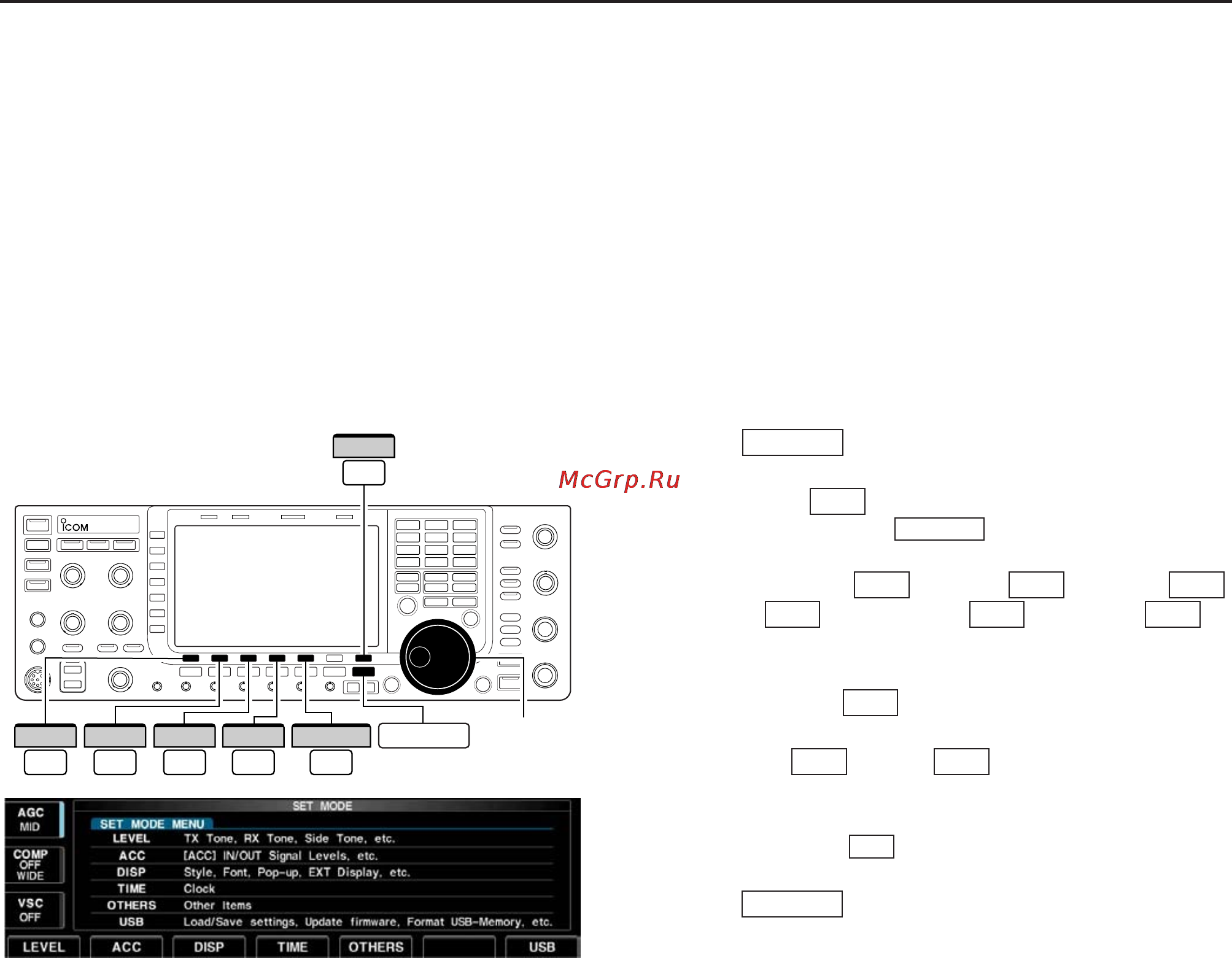

■ Set mode description
Set mode is used for programming infrequently
changed values or conditions of functions. The IC-
7700 has a level set mode, display set mode, time set
mode, accessory set mode, others set mode and USB-
Memory set menu.
DD
Set mode operation
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [SET] to select set mode menu screen.
• Pushing and holding for 1 sec. also selects set
mode menu screen.
e Push [LEVEL] , [ACC] , [DISP] ,
[TIME] , [OTHERS] or [USB] to
enter the desired set mode.
r For level, accessory, display and Others set mode,
push [WIDE] to toggle wide and normal
screen.
t Push [Y] or [Z] to select the desired
item, then rotate the main dial to adjust/select the
desired value or condition.
• Pushing [Ω≈] operation may be necessary for
some items.
y Push twice to exit set mode.
EXIT/SET
F-3
F-2F-1
F-7
F-7F-5F-4
F-3F-2F-1
EXIT/SET
F-7
EXIT/SET
Main dial
F-1
LEVEL
F-2
ACC
F-5
OTHERS
EXIT/SET
F-3
DISP
F-4
TIME
F-7
USB
12
SET MODE
