9-7
■ Setting select memory channels
DD

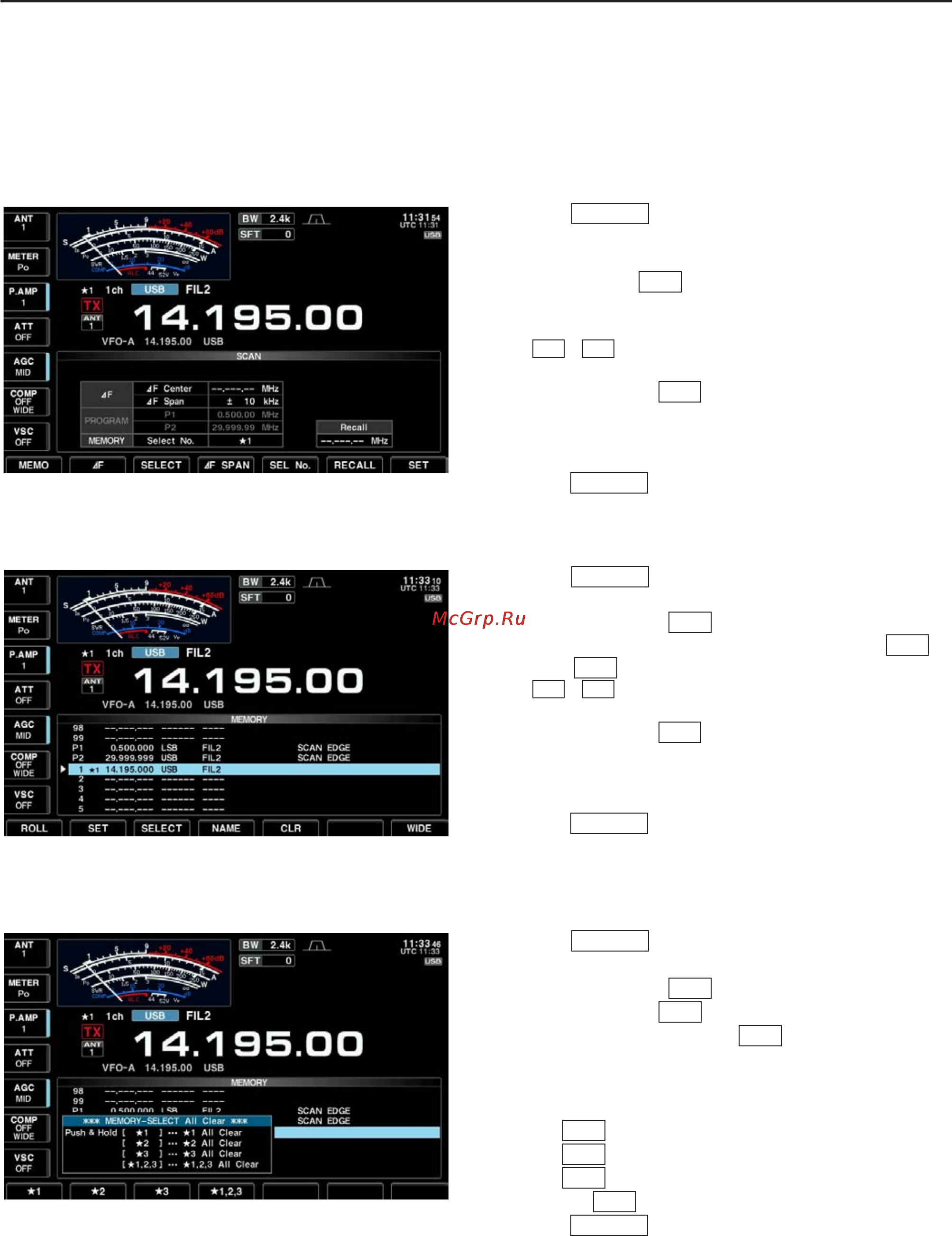

Setting in scan screen
q Push several times to close a multi-func-
tion screen, if necessary.
w Select memory mode.
e Push [SCAN] to select the scan screen.
r Select the desired memory channel to set as a se-
lect memory channel.
•/ keys and direct keypad selections can be
used.
t Push [SELECT] several times to set the mem-
ory channel as a select memory ★1, ★2, ★3 or not.
y Repeat steps r to t to program another memory
channel as a select memory channel.
u Push to exit the scan screen.
DD
Setting in memory list screen
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [MEMORY] to select memory list screen.
e Rotate the main dial while pushing [ROLL] or
[SET] to select the desired memory channel.
•/ keys and direct keypad selections can be
used.
r Push [SELECT] several times to set the mem-
ory channel as a select memory ★1, ★2, ★3 or not.
t Repeat steps e to r to program another memory
channel as a select memory channel.
y Push to exit the memory list screen.
DD
Erasing the select scan setting
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [MEMORY] to select memory list screen,
or push [SCAN] to select scan screen.
e Push and hold [SELECT] for 1 sec. to display
memory select all clear window.
r Push one of the following keys to clear all select
scan setting.
[★1] : Clears all ★1 setting.
[★2] : Clears all ★2 setting.
[★3] : Clears all ★3 setting.
[★1,2,3] : Clears all select setting.
t Push to exit the memory list screen.
