11-3

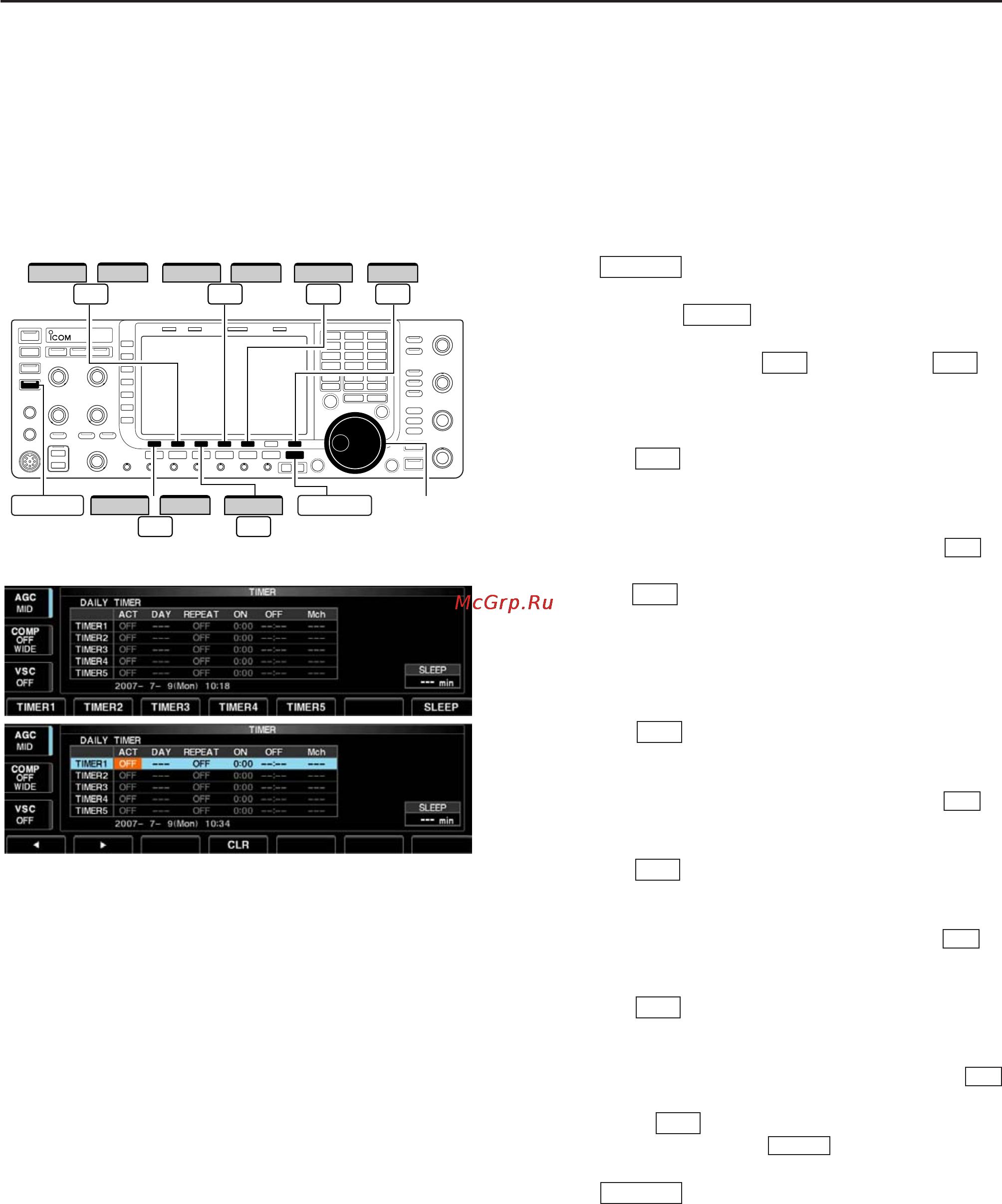

■ Daily timer setting
The transceiver turns power ON and/or OFF automat-
ically on the specified day and time, with the specified
frequency settings.
q Push several times to close multi-function
screen, if necessary.
w Push and hold for 1 sec. to select timer set
screen.
e Push one of [TIMER1] to [TIMER5] to
select the desired timer.
r Rotate the main dial to select the timer action ON
and OFF.
t Push [≈] to select the “DAY” cell, then rotate
the main dial to select the desired day of the week.
• Select “– – –” not to specify the day of the week. The
timer will function every day in this case.
• Once a day of the week is selected, push [CLR] to
select “– – –.”
y Push [≈] to select the “REPEAT” cell, then ro-
tate the main dial to select the repeat function ON
and OFF.
•ON: The timer functions every selected day of the
week. (repeats)
•OFF : The timer does not repeat.
u Push [≈] to select the “ON” cell, then rotate
the main dial to set the desired transceiver power
ON time.
• When using power OFF timer only, push [CLR] to
select “– – –.” This setting cannot be set when the power
OFF timer is set to “– – –.”
i Push [≈] to select the “OFF” cell, then rotate
the main dial to set the desired transceiver power
OFF time.
• When using power ON timer only, push [CLR] to
select “– – –.” This setting cannot be set when the power
ON timer is set to “– – –.”
o Push [≈] to select the “Mch” cell, then rotate
the main dial to select the desired memory channel
number.
• If using the currently set VFO condition, push [CLR]
to select “– – –.”
!0 Push [SET] to set the timer.
• The timer indicator above switch lights green.
!1 Repeat steps e to !0 to set other timers, if desired.
!2 Push to exit timer set screen.
EXIT/SET
TIMER
F-7
F-4
F-2
F-4
F-2
F-4
F-2
F-2
F-4
F-2
F-5F-1
TIMER
EXIT/SET
Main dial
≈
F-2
TIMER2
F-3
TIMER3
TIMER4
EXIT/SET
//
Ω
F-1
TIMER1
/
F-4
TIMER5
F-5 F-7
SETCLR
TIMER
11
CLOCK AND TIMERS
