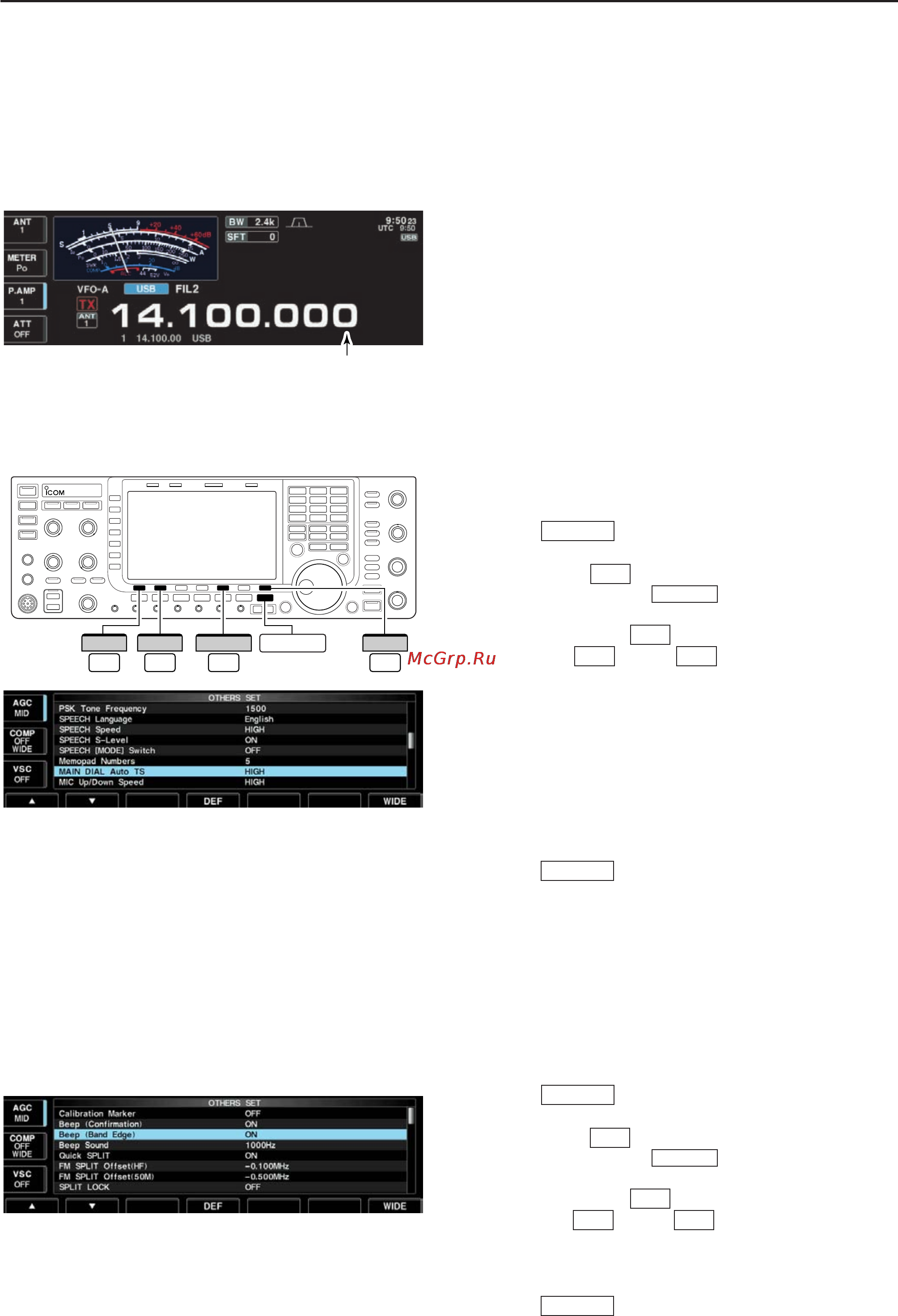

3-7
DD
Selecting 1 Hz step
A minimum tuning step of 1 Hz can be used for fine
tuning.
q Push [TS] to turn the quick tuning function OFF.
w Push and hold [TS] for 1 sec. to turn the 1 Hz tuning
step ON and OFF.
3
BASIC OPERATIONS
DD
Band edge warning beep
When you tune outside of an amateur band’s frequency
range, a warning beep sounds.
This function can be turned OFF in set mode, if de-
sired.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [SET] to select set mode menu screen.
• Pushing and holding for 1 sec. also selects set
mode menu screen.
e Push [OTHERS] to enter Others set mode.
r Push [Y] or [Z] to select “Beep (Band
Edge).”
t Rotate the main dial to turn the band edge warning
beep ON and OFF.
y Push to exit the set mode.
EXIT/SET
F-2F-1
F-5
EXIT/SET
F-7
EXIT/SET
EXIT/SET
F-5
OTHERS
F-7
SET
F-1
∫
F-2
√
DD
Auto tuning step function
When rotating the main dial rapidly, the tuning speed
accelerates automatically as selected.
q Push several times to close a multi-func-
tion screen, if necessary.
w Push [SET] to select set mode menu screen.
• Pushing and holding for 1 sec. also selects set
mode menu screen.
e Push [OTHERS] to enter Others set mode.
r Push [Y] or [Z]to select “MAIN DIAL
Auto TS.”
t Rotate the main dial to select the desired condition
from HIGH, LOW and OFF.
• HIGH: Approx. 5 times faster when the tuning
step is set to 1 kHz or smaller steps; ap-
prox. 2 times faster when the tuning step is
set to 5 kHz or larger steps.
• LOW : Approx. 2 times faster
• OFF : Auto tuning step is turned OFF.
y Push to exit the set mode.
EXIT/SET
F-2F-1
F-5
EXIT/SET
F-7
EXIT/SET
1Hz step indicator
