12-25
12
SET MODE
■ Deleting a file
RECOMMENDATION! Deleting the setting file is ir-
reversible. Confirm the contents before deleting a
setting file!

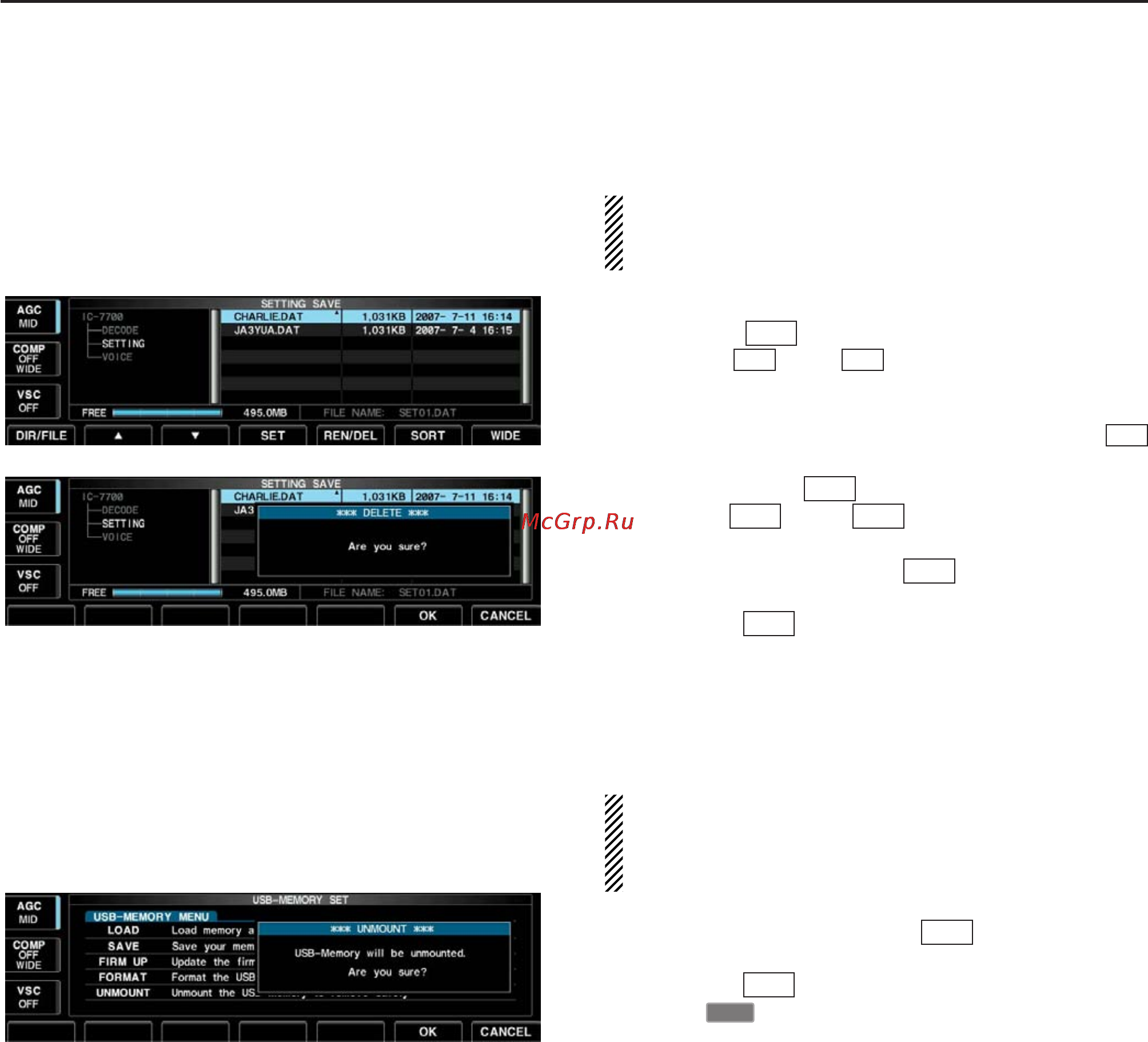

q During setting save screen display, push
[DIR/FILE] to select tree view screen.
• Push [Y] or [Z] to select the desired folder.
• “DECODE,” “SETTING” and “VOICE” folders are avail-
able as the default.
• After the folder is selected, push and hold [Ω≈]
for 1 sec. to display content folder(s), if available.
w Push [DIR/FILE] to select file list screen.
e Push [Y] or [Z] to select the desired file
to be deleted.
r Push and hold [REN/DEL] for 1 sec.
• Confirmation screen appears.
t Push [OK] to delete.
• After the deleting, return to setting save screen auto-
matically.
■ Unmounting USB-Memory
CAUTION! When removing the USB-Memory, un-
mount operation is recommended. If you do not un-
mount the memory in this case, data in the USB
memory may be corrupted.
q Push and hold [UNMOUNT] for 1 sec.
• Confirmation screen appears.
w Push [OK] to unmount the USB-Memory.
e After “ ” indication disappears, remove the
USB-Memory.
USB
F-6
F-6
F-6
F-5
F-3F-2
F-1
F-4
F-3F-2
F-1
