7-7

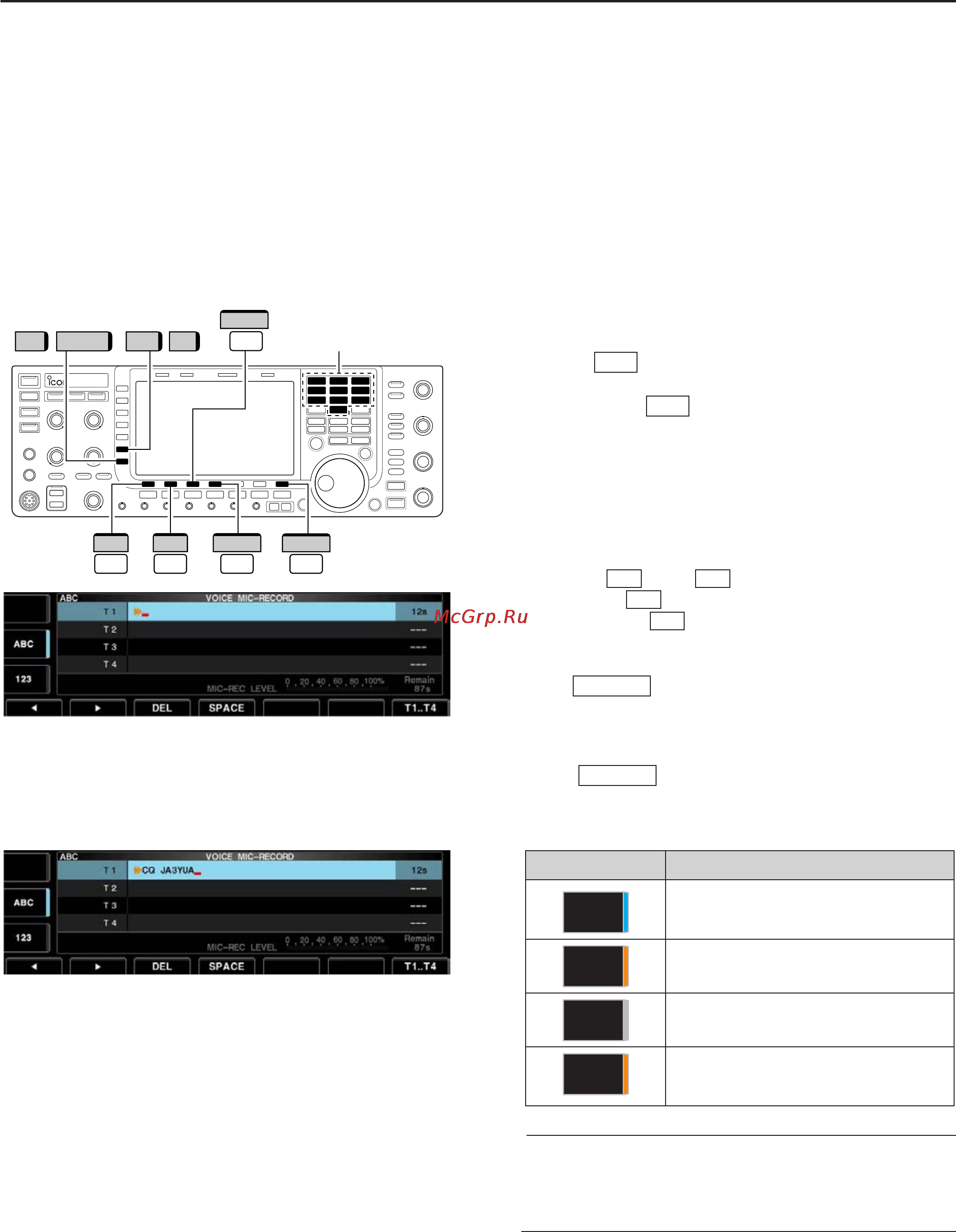

■ Programming a memory name
Memory messages can be tagged with alphanumeric
names of up to 20 characters each.
Capital letters, small letters, numerals, some symbols
(! # $ % & ¥ ? “ ‘ ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _
~
@)
and spaces can be used. (See the table below.)
q Record a message as described in page 7-6.
w During the voice mic. record screen indication, push
[NAME] to enter memory name edit condition.
•Acursor appears and blinks.
e Push [T1..T4] several times to select the de-
sired voice message.
r Input the desired character by rotating the main dial
or by pushing the band key for number input.
• Push [ABC] (MF6) or [abc] (MF6) to toggle capital and
small letters.
• Push [123]
(MF7)
or [Symbol] (MF7) to toggle numerals
and symbols.
• Push [Ω] or [≈] for cursor movement.
• Push [DEL] to delete the selected character.
• Push [SPACE] to input a space.
• Pushing the transceiver’s keypad, [0]–[9], can also enter
numerals.
t Push to input and set the name.
• The cursor disappears.
y Repeat steps e to t to program another voice
message’s name, if desired.
u Push twice to exit the voice recorder
screen.
•Voice memory name editing example
• Usable characters
✔
For your convenience
When a PC keyboard is connected to [USB] con-
nector on the front panel, the memory name can
also be edited from the keyboard.
EXIT/SET
EXIT/SET
F-4
F-3
F-2F-1
F-7
F-5
Keypad
T1..T4
F-7
//
F-3
DEL
123 Symbol ABC abc
F-1
Ω
F-2
≈
F-4
SPACE
7
VOICE RECORDER FUNCTIONS
Key selection Editable characters
A to Z (capital letters)
a to z (small letters)
0 to 9 (numbers)
! # $ % & ¥ ? “ ‘ ` ^ + – ✱ / . , : ; =
< > ( ) [ ] { } | _
~
@
Symbol
123
abc
ABC
