4-9
DD

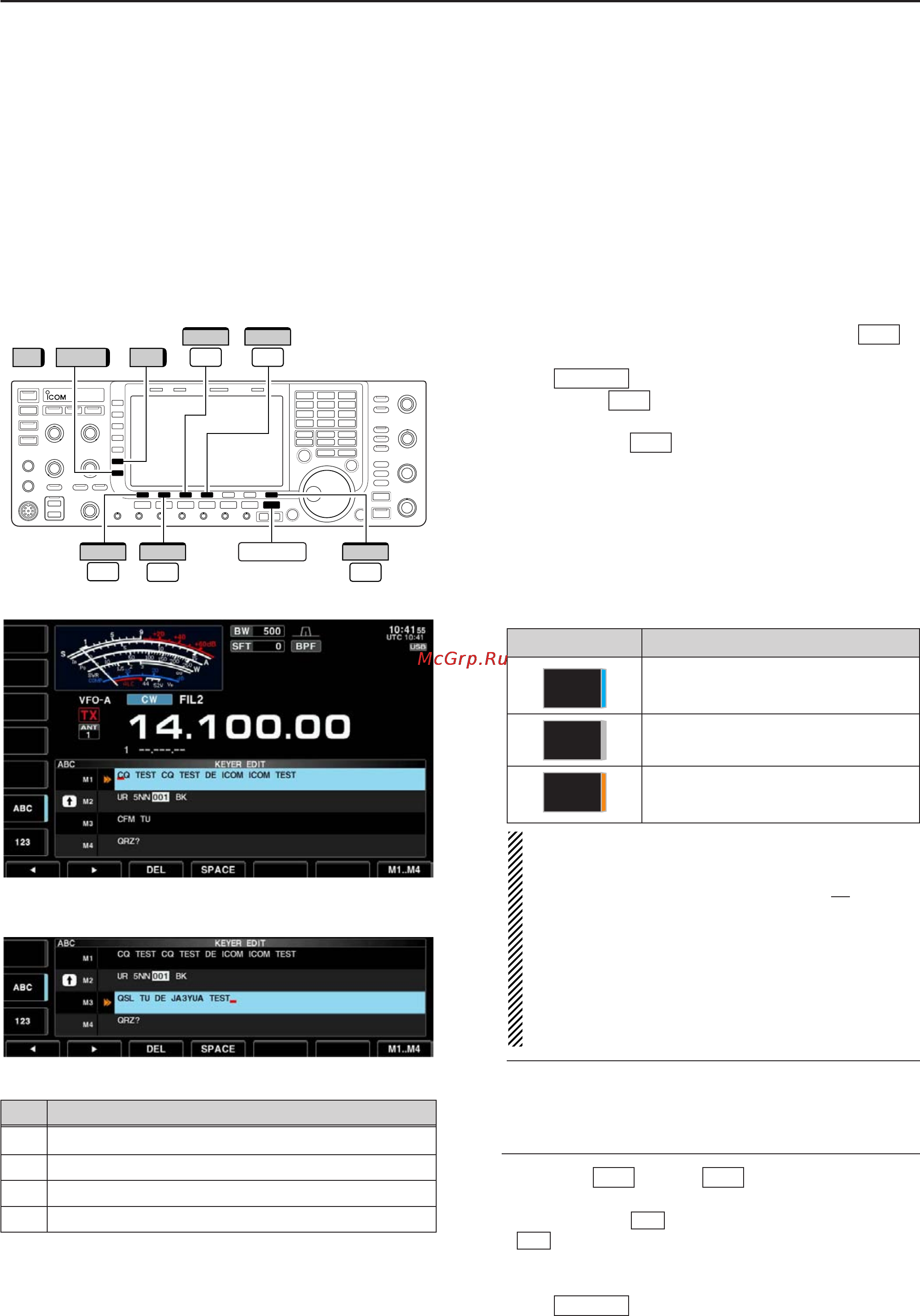

Editing a memory keyer
The contents of the memory keyer memories can be
set using the memory keyer edit menu. The memory
keyer can memorize and re-transmit 4 CW key codes
for often-used CW sentences, contest serial numbers,
etc. Total capacity of the memory keyer is 70 charac-
ters per memory channel.
• Programming contents
q During CW mode operation, push [KEYER] to
select memory keyer screen.
w Push to select memory keyer menu, then
push [EDIT] to select keyer edit screen.
• Memory keyer contents of Channel 1 (M1) is selected.
e Push [M1..M4] several times to select the de-
sired memory keyer channel to be edited.
r Push [ABC] (MF6) or [123] (MF7) or [Symbol] (MF7)
to select the character group, then rotate the main
dial to select the character, or push the keypad for
number input.
• [Symbol] appears when [123] (MF7) is pushed when
“123” character group is selected.
• Selectable characters (using the main dial);
NOTE:
“^” is used to transmit a string of characters with
no inter-character space. Put “
^” before a text
string such as ^AR, and the string “AR
” is sent
with no space.
“
✱” is used to insert the CW contest serial num-
ber. The serial number automatically increments
by 1. This function is only available for one mem-
ory keyer channel at a time. Memory keyer chan-
nel M2 used “✱” by default.
✔
For your convenience
When a PC keyboard is connected to [USB] con-
nector on the front panel, the memory keyer con-
tents can also be edited from the keyboard.
t Push [Ω] or [≈] to move the cursor
backwards or forwards, respectively.
• Pushing [DEL] deletes a character and [SPACE]
inserts a space.
y Repeat steps r and t to input the desired charac-
ters.
u Push twice to return normal screen.
EXIT/SET
F-4
F-3
F-2F-1
F-7
F-2
EXIT/SET
F-3
/
F-1
Ω
F-2
≈
F-7
M1..M4
F-3
DEL
F-4
SPACE
123 Symbol ABC
EXIT/SET
4
RECEIVE AND TRANSMIT
• Memory keyer edit screen
Key selection Editable characters
A to Z (capital letters)
0 to 9 (numbers)
/ ? ^ . , @ ✱
Symbol
123
ABC
• Example— entered “QSL TU DE JA3YUA TEST”
into memory keyer channel 3
CH Contents
M1 CQ TEST CQ TEST DE ICOM ICOM TEST
M2 UR 5NN✱ BK
M3 CFM TU
M4 QRZ?
• Pre-programmed contents
