9-3
■ Voice squelch control function
This function is useful when you don’t want unmodu-
lated signals pausing or cancelling a scan. When the
voice squelch control function is activated, the trans-
ceiver checks received signals for voice components.
If a received signal includes voice components, and
the tone of the voice components changes within
1 sec., scan pauses (or stops). If the received signal
includes no voice components or the tone of the voice
components does not change within 1 sec., scan re-
sumes.
➥ While a phone mode (SSB, AM or FM) is selected,
push [VSC]
(MF7) to switch the VSC (Voice Squelch
Control) function ON and OFF.
• “VSC” appears when the function is activated.
• The VSC function activates for any scan.
• The VSC function resumes the scan on unmodu-
lated signals, regardless of whether the scan re-
sume condition is set to ON or OFF.
■ Scan set mode
When the squelch is open, scan continues until it is
stopped manually— it does not pause on detected sig-
nals. When squelch is closed, scan stops when de-
tecting a signal, then resumes according to the scan
resume condition. Scan speed and the scan resume
condition can be set using the scan set mode.

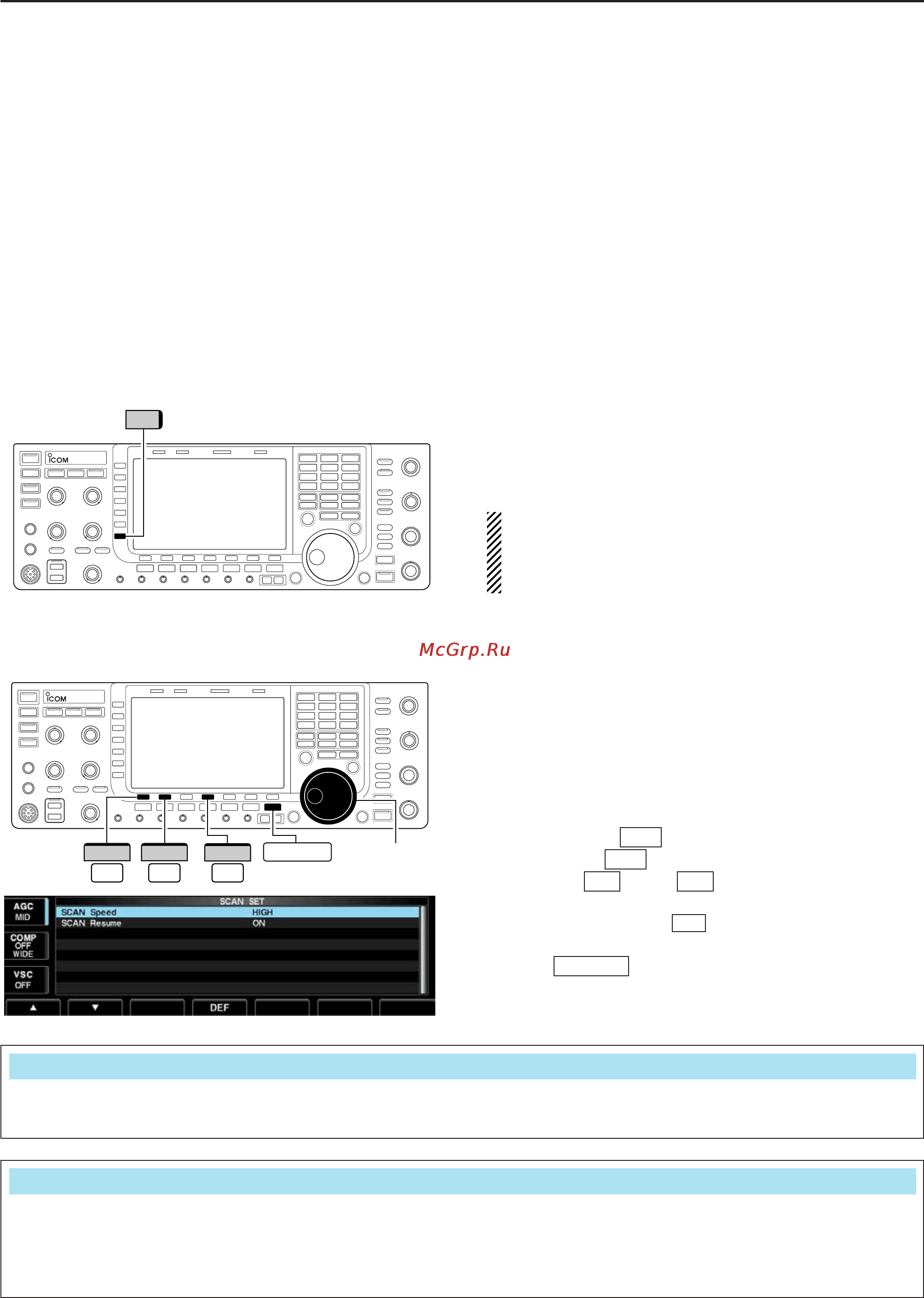

q Push [SCAN] to select scan screen.
w Push [SET] to select scan set mode.
e Push [Y] or [Z] to select the desired item.
r Rotate the main dial to select the desired condition.
• Push and hold [DEF] for 1 sec. to select the default
setting.
t Push to return to scan menu.
EXIT/SET
F-4
F-2F-1
F-7
F-5
Main dial
F-4
DEF
F-1
∫
F-2
√
EXIT/SET
VSC
9
SCANS
Select the desired scan speed from high and low. • HIGH : scan is faster
• LOW : scan is slower
Scan Speed
HIGH
Set the scan resume function ON and OFF. • ON : When detecting a signal, scan pauses for
10 sec., then resumes. When a signal disap-
pears, scan resumes 2 sec. later.
• OFF : When detecting a signal, cancels scanning.
Scan Resume
ON
