Icom IC-7700 [146/216] Antenna memory settings continued
![Icom IC-7700 [146/216] Antenna memory settings continued](/views2/1074139/page146/bg92.png)
10-4
■ Antenna memory settings (continued)
DD
Temporary memory
The antenna temporary memory memorizes the man-
ually selected antenna. The selected antenna will be
re-called even if frequency band has been changed.
q Select the antenna set screen.
w Push [TEMP-M] to turn the temporary mem-
ory ON and OFF.
e Select the desired frequency band with a band key.
r Push [ANT]
(MF1) to select the desired antenna.
•“★” appears when a different antenna from the original is
selected.
t Push [ANT MR] to re-call the original antenna.
•“★” disappears.
y Push to exit antenna set screen.
CAUTION!: Before transmitting with the manually
selected antenna, make sure the selected antenna
is suitable for the operating frequency. Otherwise
the transceiver may be damaged.
DD
Antenna selection mode
The automatic antenna selection (antenna memory)
and the [ANT] (MF1) switch function can be deactivated
if desired.
q Select the antenna set screen.
w Push [
[
ANT
]
SW] to select the antenna selec-
tion from Auto, OFF and Manual.
• Auto : Use the antenna memory. Antenna selec-
tion with [ANT] switch is also available.
• OFF : Only the antenna connected to [ANT1]
can be used. [ANT] switch is deactivated.
• Manual: Deactivate the antenna memory function.
Antenna can be selected with [ANT]
switch operation only.
e Push to exit antenna set screen.
EXIT/SET
F-6
EXIT/SET
F-2
F-4
Push to select the
antenna selection mode.
F-6
[ANT] SW

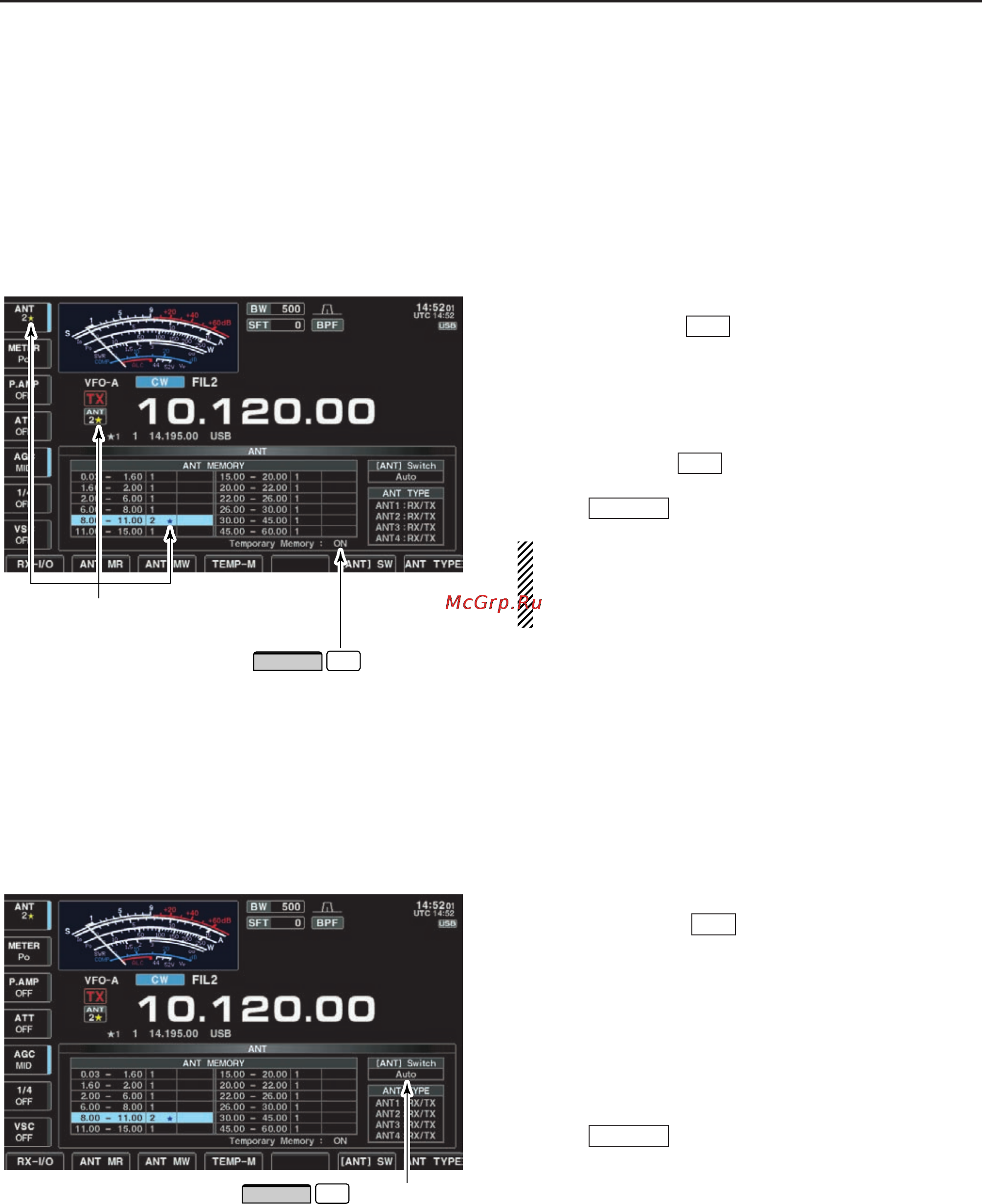

“★” indicators appear when a different
antenna from the original is selected.
F-4
TEMP-M
to turn thePush
temporary memory ON and OFF.
